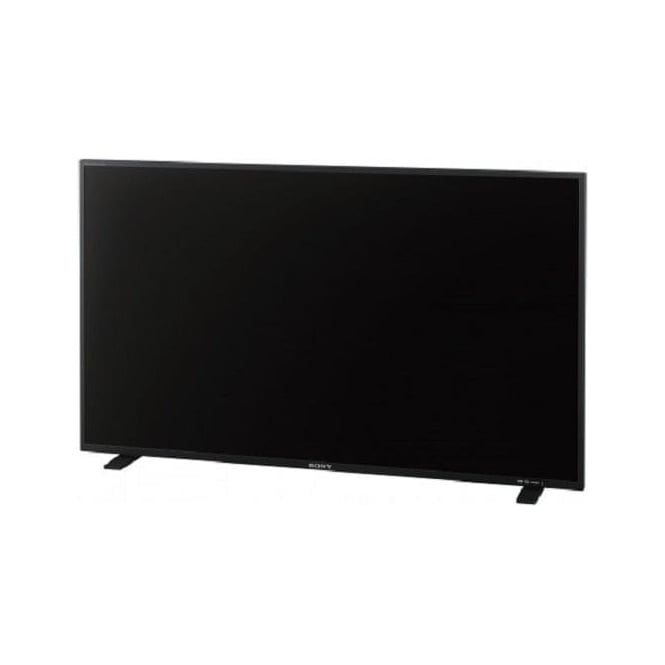

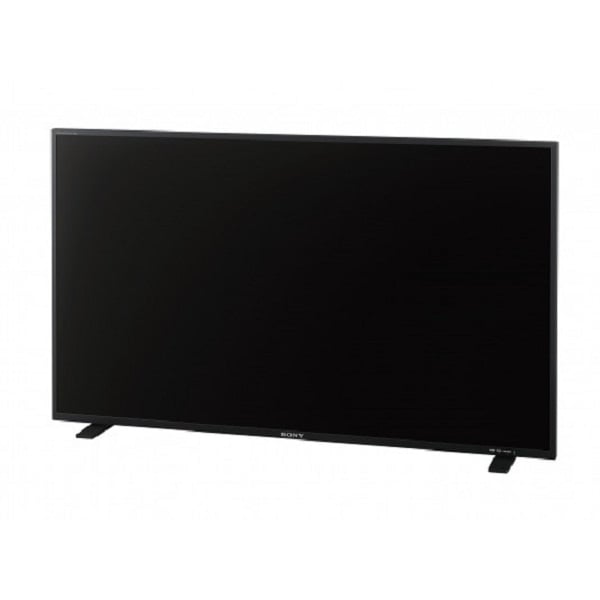

Sony 55-inch Trimaster EL OLED Professional Monitor

Sony PVM-X550 (PVMX550, PVM/X550, pvm-x550) 55-inch Trimaster EL OLED Professional Monitor

The Sony PVM-X550 is a 55-inch, 3840 x 2160 4K TRIMASTER EL™ OLED monitor offering high grade picture quality suitable for critical monitoring applications.  It has a thin bezel and light weight making it suitable for wall mounting. The OLED display ensures true black performance, plus quick pixel response and high colour fidelity. There is a quad view display allowing for different individual settings for each display.

The display also supports HDR (High Dynamic Range) and a wide colour gamut supporting DCI-P3 and most of the ITU-R BT.2020 standard.

Designed to be an ideal companion to the standard-setting BVM-X300 monitor, the PVM-X500 provides an impressive preview client viewing platform. Its 4K OLED display gives vibrancy,colour accuracy and resolution in equal measure, with a wide choice of colour spaces depending on your application, be that broadcast or cinema. The OLED screen type lends itself well to HDR with breathtaking contrast and represents blacks in their truest form, as well as having fast refresh giving vitually no motion blur.

Picture Performance

• Panel: OLED panel
• Picture size (diagonal): 1387.832 mm (54.6” )
• Effective Picture size (H x V): 1209.6 x 680.4 mm
• Resolution (H x V): 3840 x 2160 pixels
• Aspect: 16:9
• Pixel efficiency: 99,99%
• Panel drive: 10-bit
• Viewing angle (panel specification): 89°/89°/89°/89° (typical) (up/down/left/right contrast > 10:1)
• Colour temperature: D55, D61, D65, D93, DCI*1, DCI XYZ, and user 1-5 (5,000 k to 10,000 k adjustable)
• Standard luminance: 100 cd/m² (100% white signal input)
• Colour space (colour gamut): ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3, PVM-X550 Native*3, S-GAMUT3, S-GAMUT3.cine
• Transmission: Matrix ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709
• EOTF: 2.2, 2.4, 2.6, CRT, 2.4(HDR), S-Log3(HDR), S-Log2(HDR), SMPTE ST.2084(HDR), HLG SG 1.2(HDR), HLG SG Variable(HDR)

Input

• SDI: BNC x4 x2sets
• Option: HDMI x1
• Serial remote (LAN): Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1)

Output

• SDI: BNC x4 x2sets
• Audio monitor*4: Stereo mini jack (x1)

General

• Power requirement: AC 100 V to 240 V, 50/60 Hz
• Operating temperature: 0°C to 35°C (32°F to 95°F), Recommended: 20°C to 30°C (68°F to 86°F)
• Operating humidity: 0 % to 90 % (no condensation)
• Storage / transport temperature: -20°C to +60°C (-4°F to +140°F)
• Storage / transport humidity: 0% to 90%
• Operating / storage / transport pressure: 700 hPa to 1060 hPa
• Weight: 21.7 kg (47 lb 13 oz)(With stand), 21.4 kg(47 lb 3 oz) (Without stand)
• Dimensions (W x H): 1241.6x737.2x205mm (49x29x8 1/8inch)(With stand), 1241.6 x 718.4x 83.(49x28 3/8x3 3/8inch)mm (Without stand)
• Supplied accessories: AC power cord (1), AC plug holder (1), CD-ROM (1), Before Using This Unit (Japanese, English 1), HDMI holder(1), Stands(2), Screws(8)

In the box

• 1x PVM-X550 Monitor
• 1x AC power cord
• 1x AC plug holder
• 1x CD-ROM
• 1x Before Using This Unit Guide
• 1x HDMI holder
• 2x Stands
• 8x Screws
