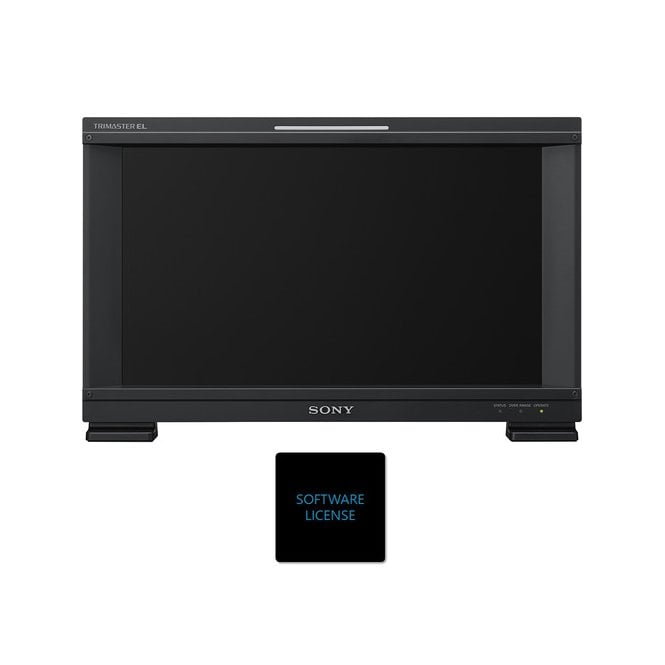

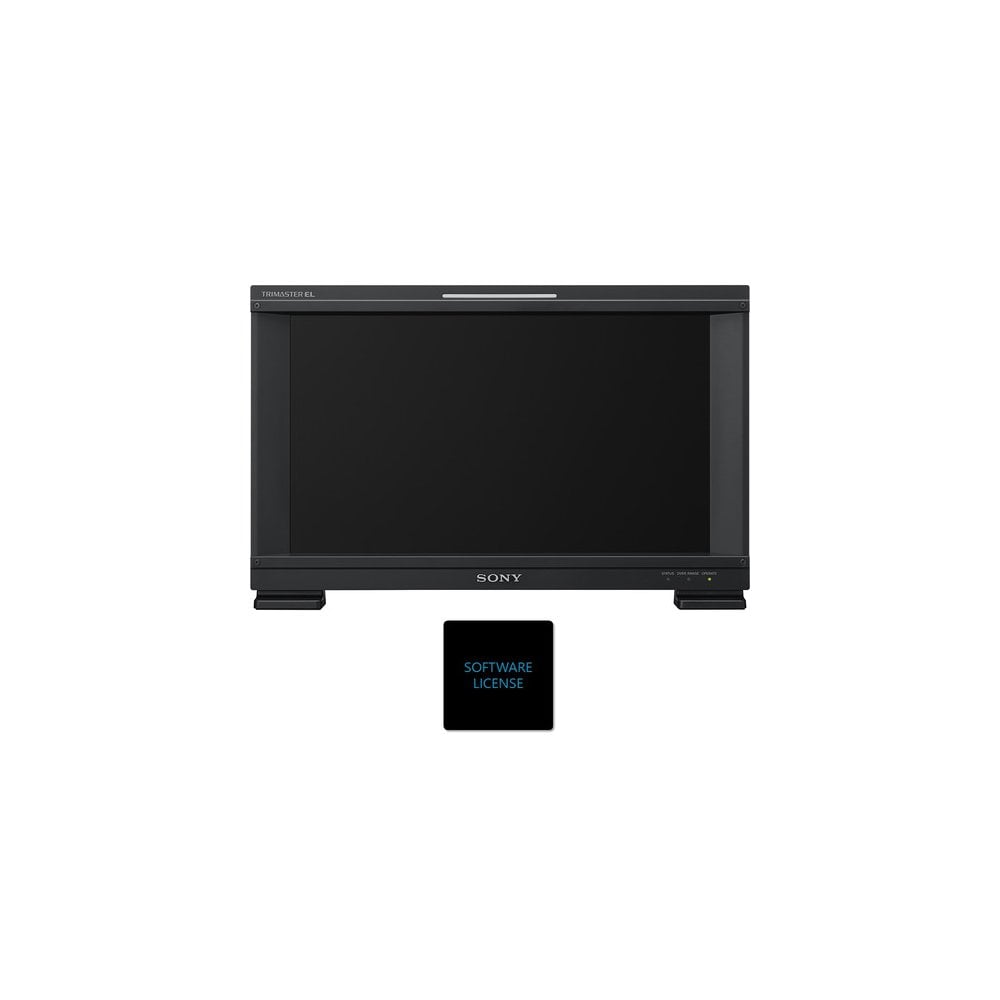

Sony BVM-E171-HDR 16.5 Inch TRIMASTER EL OLED Monitor with HDR License

Sony BVM-E171-HDR (BVM/E171/HDR, BVM_E171_HDR, BVME171HDR, BVM E171 HDR, BVM-E171/HDR) 16.5 Inch TRIMASTER EL OLED Monitor with HDR License

Sony BVM E171 HDR Licence included 16.5" TRIMASTER EL OLED Critical Reference Monitor from Sony features a wide viewing angle for critical picture evaluation in the studio and on-set for professional applications such as color grading, high-end editing, broadcasting and scientific research. Sony?s leading edge Organic Light-Emitting Diode (OLED) technology and signal processing technology ensures high performance with the BVM-E171. It allows several people to evaluate the image with accuracy at the same time, increasing the monitor?s versatility in top end monitoring solutions.

Technology

Top Emission technology enhances OLED's benefits to deliver outstanding black performance, a quick response time with virtually no motion blur, and a wide color gamut. A 12-bit output digital signal processing engine provides a non-linear cubic conversion color-management system that delivers precise color reproduction, picture uniformity, gamma performance, and picture quality consistency.

Flicker Free Mode

The TRIMASTER EL OLED panel's quick response and scan-driving performance delivers remarkable picture quality with virtually no motion blur. However, there is a possibility that flicker is just visible especially when a lower frequency signal is displayed (24p, 24PsF, and 50i). To remove visible flicker, the BVM E171 is equipped with flicker-free mode.

DC Operation

The BVM E171 can be DC operated. This feature gives more flexibility and mobility to users who want the larger size screen for the on-set application.

Support for 4K Production

The BVM E171 is an HD monitor that conforms to ITU-R BT.709 color space. Responding to an increase of the demand of using an HD monitor in a 4K production, the monitor supports ITU-R BT.2020 color space and transfer matrix.

Accepts Computer Signals via HDMI

The BVM E171 accepts various computer signals input up to 1920 x 1080 through its HDMI connector. It is also equipped with Digital Cinema 2048 x 1080 signals.

Picture Performance

Sony TRIMASTER EL technology combines the ultimate performance of Sony OLED display with the TRIMASTER technology to provide the highest level of picture performance:

Wide viewing angle

Accurate Black Reproduction

High purity and accurate color reproduction

Quick response time with virtually no motion blur

Very high contrast ratio

Sony Display Engine

High-precision signal processing engine has been developed to fulfill the reference monitor criteria and is optimized to maximize OLED panel performance. This engine incorporates 12-bit output accuracy at each process, and provides both a high quality I/P conversion algorithm and a highly accurate color management system.

Multi-Format Signal Support

The BVM E171 monitor can accept almost any SD or HD video format, such as analog composite video, HDMI and SDI, and variable computer signals through HDMI.

Auto White Balance

The color temperature and white balance of BVM Series monitors can be automatically adjusted by the Auto White Balance function using specified color temperature probes, such as:

Konica Minolta: CA-210, CA-310, CS-200

DK-Technologies: PM5639/06

X-Rite: i1 (Eye-One) Pro and i1Pro2

Photo Research: PR-655, PR-670

Klein: K-10

Jeti: Specbos 1211

Picture Performance

• Panel: OLED panel
• Picture size (diagonal): 420.0 mm (16 5/8 inches)
• Effective picture size (H x V): 365.8 x 205.7 mm (14 1/2 x 8 1/8 inches)
• Resolution (H x V): 1920 x 1080 pixels (Full HD)
• Aspect: 16:9
• Pixel efficiency: 99.99%
• Panel drive: RGB 10-bit

Panel frame rate:

• 48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)

Viewing angle (panel specification):

• 89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1)

Standard luminance:

• 100 cd/m2 (preset1 to preset5 at EOTF 2.4)
• 48 cd/m2 (preset (DCI)) (1.0 Vp-p reference signal, 100% white signal input)

Colour temperature:

• D55, D61, D65, D93, DCI*1, DCI XYZ and user 1-5 (5,000 k to 10,000 k adjustable)

Colour space (colour gamut):

• ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, BVM-E171 Native*3, S-Gamut/S-Gamut3*2, S-Gamut3.cine*2

Transmission Matrix: ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709

EOTF:

• 2.2, 2.4, 2.6, CRT, S-Log3(SDR), S-Log2(SDR)
• 2.2, 2.4, 2.6, CRT, S-Log3(HDR), S-Log3(Live HDR), S-Log2(HDR), ITU-R BT.2100(HLG), SMPTE ST2084, 2.4(HDR) when BVML-HE171 activates the HDR monitoring features.

Input

• SDI: BNC (x2)
• HDMI: HDMI (x1) (HDCP correspondence, deep colour correspondence)
• Composite Video: BNC (x1)
• Parallel remote: RJ-45 modular connector 8-pin (x1) (Pin-assignable)
• Serial remote (LAN): Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1)
• DC Input: XLR-4 pin (x1)

Output

• SDI: BNC (x2)
• Composite Video: BNC (x1)
• DC 12V out: Circle 4-pin (female) (x1)

General

Power requirement: AC 100 V to 240 V, 0.9 A to0.5 A, 50/60 Hz, DC 24 V to 28 V, 3.3 A to 2.9 A

Power consumption:

• Approx. 88 W (AC power supply) (max.)
• Approx. 53 W (AC power supply) (average power consumption in the default status)

Dimensions:

• (W x H x D) 436.0 x 282.4 (266.4)* x156.5 mm (17 1/4 x 11 1/4 (10 1/2)* x 6 1/4 inches)

* Height without legs

• Mass: Approx. 6.5 kg (14 lb5 oz)

In the Box

• Sony 16.5 Inch TRIMASTER EL OLED Monitor with HDR License
