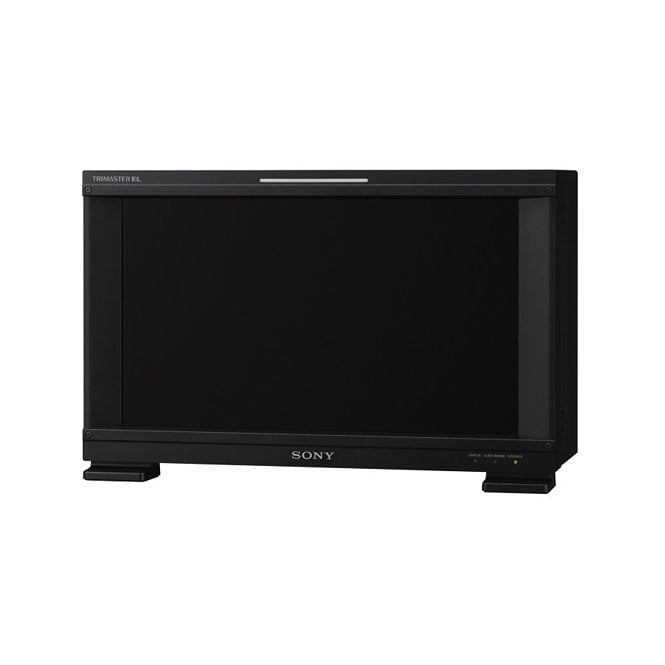

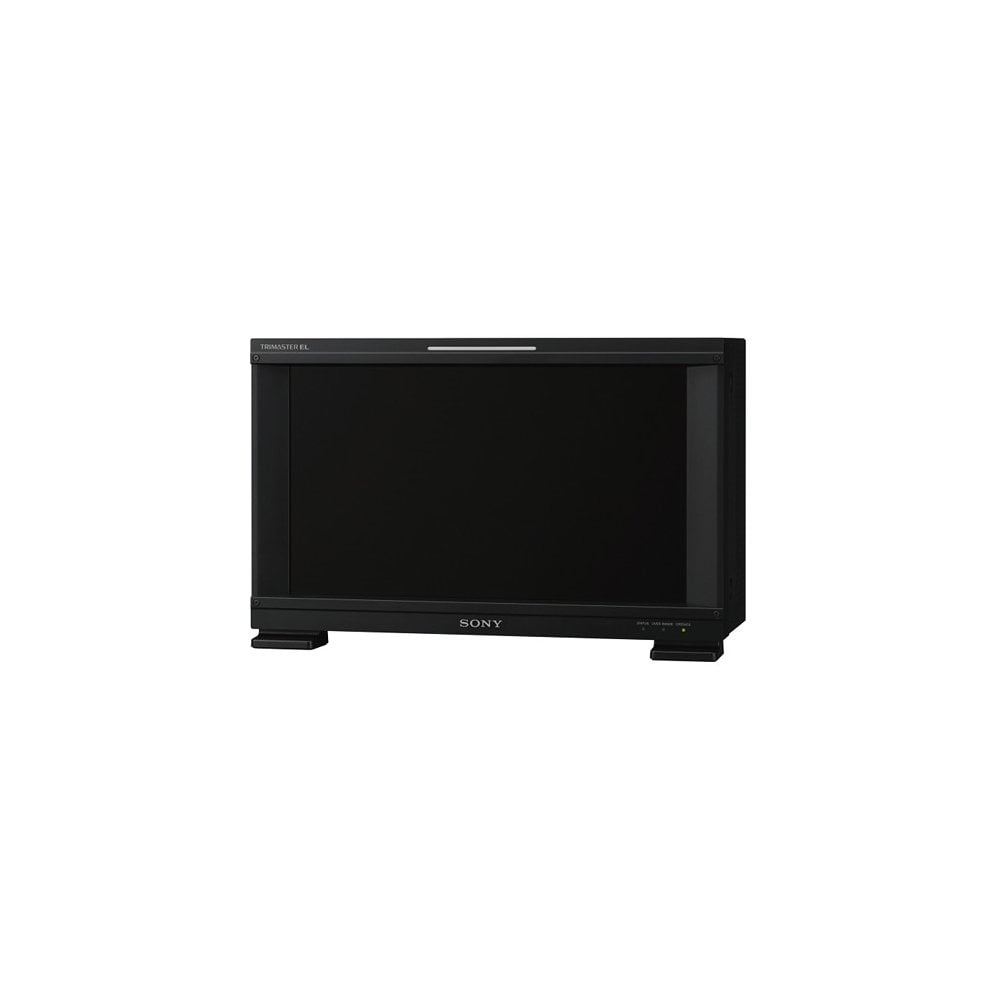

Sony 16.5 Inch Full HD Trimaster EL OLED Reference Monitor

Sony BVM-E171 (BVM_E171, BVM/E171, BVM E171) 16.5 Inch Full HD Trimaster EL OLED Reference Monitor

16.5-inch TRIMASTER EL™ reference monitor, with 2nd Gen OLED. Dramatically improved viewing angle for critical picture evaluation in the studio and on-set

TRIMASTER EL™ reference monitor with 2nd Gen OLED panel. Dramatically improved viewing angle for critical picture evaluation in the studio and on-set For professional applications such as colour grading, high-end editing, broadcasting and scientific research, Sony’s leading edge Organic Light-Emitting Diode (OLED) technology and signals processing technology ensures absolutely outstanding performance with the BVM-E171. The colour shift depending on the viewing angle has reduced to less than half compared to the 1st generation OLED panel. It allows several people to evaluate the image with extreme accuracy at the same time, increasing the monitor’s versatility in top end monitoring solutions.

State-of-the-art product

• Super Top Emission technology enhances OLED’s intrinsic benefits to deliver outstanding black performance, a quick response time with virtually no motion blur, and a wide colour gamut. A 12-bit output digital signal processing engine provides a nonlinear cubic conversion colour-management system that delivers precise colour reproduction, stunning picture uniformity, smoother-than-ever gamma performance, and picture quality consistency.

Flicker free mode

• The TRIMASTER EL OLED panel’s superb quick response and scan-driving performance deliver stunning picture quality with virtually no motion blur. However, there is a possibility that flicker is just visible especially when a lower frequency signal is displayed (24p, 24PsF, and 50i). To remove visible flicker, the BVM-E171 is equipped with Flicker-free mode.

DC Operation

• The BVM-E171 can be DC operated. Due to its lightweight and slim design, the BVM-E171 is ideal for field applications.

ITU-R BT.2020 support for 4K production

• BVM-E171 is surely an HD monitor that conforms to ITU-R BT.709 colour space. Responding to an increase of the demand of using an HD monitor in a 4K production, BVM-E171 newly supports ITU-R BT.2020 colour space and transfer matrix.

Accepts computer signals via HDMI

• The BVM-E171 accepts various computer signals input up to 1920 x 1080 through its HDMI connector. It is also equipped with Digital Cinema 2048 x 1080 signals.

Picture Performance

• Panel: OLED panel
• Picture size (diagonal): 420.0 mm (16 5/8 inches)
• Effective picture size (H x V): 365.8 x 205.7 mm (14 1/2 x 8 1/8 inches)
• Resolution (H x V): 1920 x 1080 pixels (Full HD)
• Aspect: 16:09
• Pixel efficiency: 99.99%
• Panel drive: RGB 10-bit
• Panel frame rate: 48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)
• Viewing angle (panel specification): 89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1)
• Standard luminance: 100 cd/m2 (preset1 to preset5 at EOTF 2.4)
• 48 cd/m2 (preset (DCI)): (1.0 Vp-p reference signal, 100% white signal input)
• Colour temperature: D55, D61, D65, D93, DCI*1, DCI XYZ and user 1-5 (5,000 k to 10,000 k adjustable)
• Colour space (colour gamut): ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, BVM-E171 Native*3, S-Gamut/S-Gamut3*2, S-

Gamut3.cine*2

• Transmission Matrix: ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709
• EOTF: 2.2, 2.4, 2.6, CRT, S-Log3(SDR), S-Log2(SDR)

Input

• SDI: BNC (x2)
• HDMI: HDMI (x1) (HDCP correspondence, deep colour correspondence)
• Composite Video: BNC (x1)
• Parallel remote: RJ-45 modular connector 8-pin (x1) (Pin-assignable)
• Serial remote (LAN): Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1)
• DC Input: XLR-4 pin (x1)

Output

• SDI: BNC (x2)
• Composite Video: BNC (x1)
• DC 12V out: Circle 4-pin (female) (x1)

General

• Power requirement: AC 100 V to 240 V, 0.9 A to0.5 A, 50/60 Hz, DC 24 V to 28 V, 3.3 A to 2.9 A
• Power consumption: Approx. 88 W (AC power supply) (max.), Approx. TBA W (AC power supply) (average power consumption in the default status)
• Dimensions: (W x H x D) 436.0 x 282.4 (266.4)* x156.5 mm (17 1/4 x 11 1/4 (10 1/2)* x 6 1/4 inches) , * Height without legs
• Mass: Approx. 6.5 kg (14 lb5 oz)
• Supplied accessories: AC power cord (1), AC plug holder (1), CD-ROM (1), Before Using This Unit (Japanese, English 1), HDMI cable

In the box

• 1 x BVM-E171 Monitor
• 1 x AC power cord
• 1 x AC plug holder
• 1 x CD-ROM
• 1 x Before Using This Unit (Japanese, English 1)
• 1 x HDMI cable holder
• 1 x Handle
• 2 x Rack mount brackets (Left & Right)
