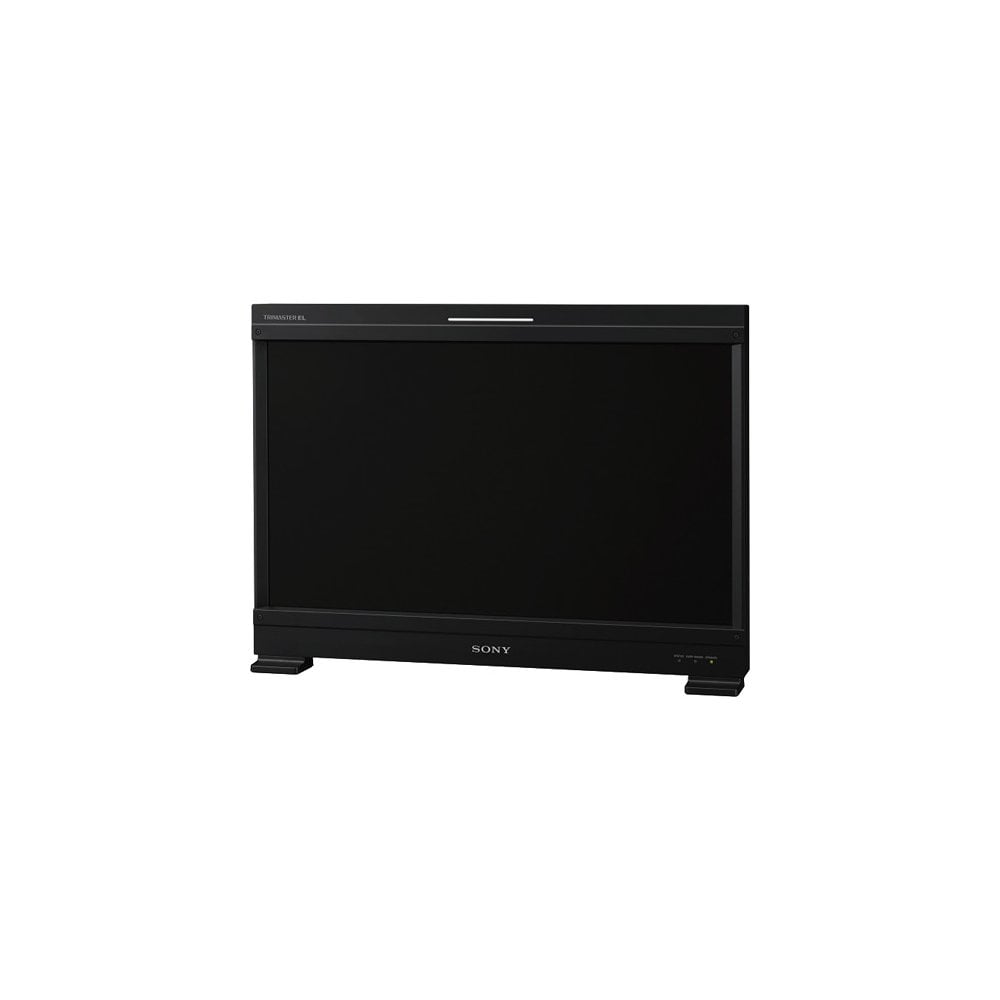

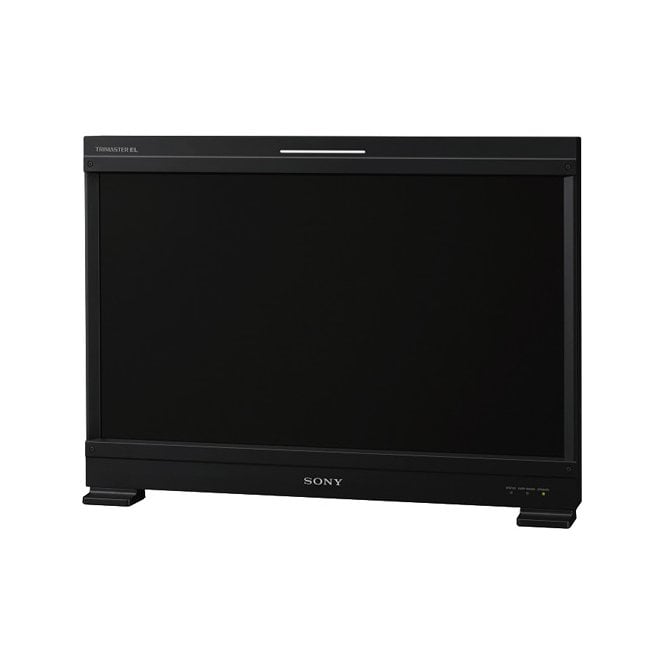

Sony 24.5 Inch Full HD Trimaster EL OLED Reference Monitor

Sony BVM-E251 (BVM_E251, BVM/E251, BVM E251) 24.5 Inch Full HD Trimaster EL OLED Reference Monitor

24.5-inch TRIMASTER EL™ reference monitor, with 2nd Gen OLED. Dramatically improved viewing angle for critical picture evaluation in the studio and on-set

For professional applications such as colour grading, high-end editing, broadcasting and scientific research, Sony’s leading edge Organic Light-Emitting Diode (OLED) technology and signals processing technology ensures absolutely outstanding performance with the BVM-E251. The colour shift depending on the viewing angle has reduced to less than half compared the 1st generation OLED panel. It allows several people to evaluate the image with extreme accuracy at the same time, increasing the monitor’s versatility in top end monitoring solutions.

State-of-the-art product

• Super Top Emission technology enhances OLED’s intrinsic benefits to deliver outstanding black performance, a quick response time with virtually no motion blur, and a wide colour gamut. A 12-bit output digital signal processing engine provides a nonlinear cubic conversion colour-management system that delivers precise colour reproduction, stunning picture uniformity, smoother-than-ever gamma performance, and picture quality consistency.

Flicker free mode

• The TRIMASTER EL OLED panel’s superb quick response and scan-driving performance deliver stunning picture quality with virtually no motion blur. However, there is a possibility that flicker is just visible especially when a lower frequency signal is displayed (24p, 24PsF, and 50i). To remove visible flicker, the BVM-E251 is equipped with Flicker-free mode.

DC Operation

• The BVM-E251 can be DC operated. This feature gives more flexibility and mobility to users who want the larger size screen for the on-set application.

ITU-R BT.2020 support for 4K production

• BVM-E251 is surely an HD monitor that conforms to ITU-R BT.709 colour space. Responding to an increase of the demand of using an HD monitor in a 4K production, BVM-E251 newly supports ITU-R BT.2020 colour space and transfer matrix.

Accepts computer signals via HDMI

• The BVM-E251 accepts various computer signals input up

Picture Performance

• Panel: OLED panel
• Picture size (diagonal): 623.4 mm (24 5/8 inches)
• Effective picture size (H x V): 543.4 x 305.6 mm (21 1/2 x 12 1/8 inches)
• Resolution (H x V): 1920 x 1080 pixels (Full HD)
• Aspect: 16:09
• Pixel efficiency: 99.99%
• Panel drive: RGB 10-bit
• Panel frame rate: 48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)
• Viewing angle (panel specification): 89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1)
• Standard luminance: 100 cd/m2 (preset1 to preset5 at EOTF 2.4), 48 cd/m2 (preset (DCI)) (1.0 Vp-p reference signal, 100% white signal input)
• Colour temperature: D55, D61, D65, D93, DCI*1, DCI XYZ and user 1-5 (5,000 k to 10,000 k adjustable)
• Colour space (colour gamut): ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, BVM-E251 Native*3, S-Gamut/S-Gamut3*2, S-
• Gamut3.cine*2
• Transmission Matrix: ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709, ITU-R BT.601, SMPTE 240M
• EOTF: 2.2, 2.4, 2.6, CRT, S-Log3(SDR), S-Log2(SDR)

Input

• SDI: BNC (x2)
• HDMI: HDMI (x1) (HDCP correspondence, deep colour correspondence)
• Composite Video: BNC (x1)
• Parallel remote: RJ-45 modular connector 8-pin (x1) (Pin-assignable)
• Serial remote (LAN): Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1
• DC Input: XLR (x1)

Output

• SDI: BNC (x2)
• Composite Video: BNC (x1)
• DC 12V out: Circle 4-pin (female) (x1)

General

• Power requirement: AC 100 V to 240 V, 1.2 A to 0.6 A, 50/60 Hz, DC 24 V to 28 V, 4.5 A to 3.9 A
• Power consumption: Approx. 117 W (AC power supply) (max.), Approx. TBA W (AC power supply) (average power consumption in the default status)
• Dimensions (W x H x D): (W x H x D) 576.0 x 424.0(408.0)* x 148.0 mm (22 3/4 x 16 3/4(16 1/16)* x 5 7/8 inches) , * Height without legs
• Mass: Approx. 10.3 kg (22 lb11 oz)
• Supplied accessories: AC power cord (1), AC plug holder (1), CD-ROM (1), Before Using This Unit (Japanese, English 1), HDMI cable, holder(1)

In the Box

• Sony BVM E251 24.5" TRIMASTER EL OLED Critical Reference Monitor
• AC Power Cord
• AC Plug Holder
• HDMI Cable Holder
• Handle
• 2 x Rackmount Bracket (L/R)
