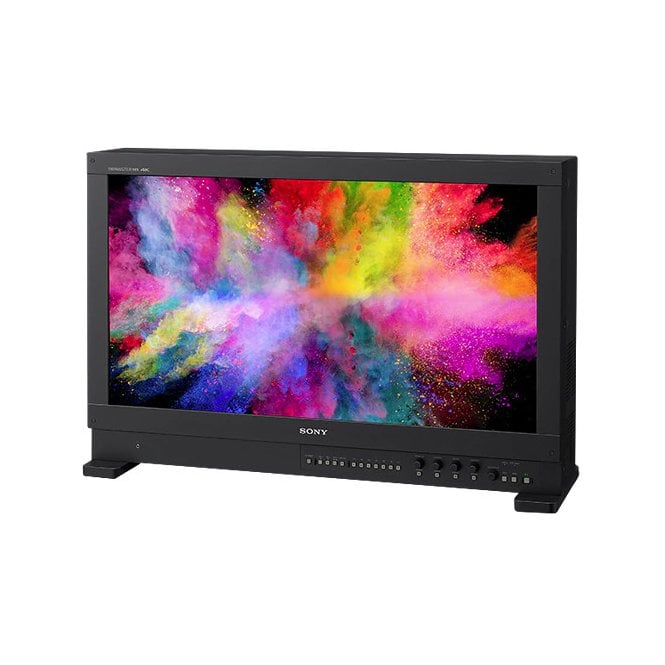

Sony 31inch 4K Trimaster HX Professional Master Monitor

code: BVM-HX310
  • £27,626.89
  • RRP: £29,276.00
Status   |   Usually dispatched within 24 hours
Loading...

Features

  • Ready for HDR
  • Great HDR flexibility
  • Make no mistake
  • Easy system integration
  • Enhance your workflow
  • Quality assurance efficiency
  • Work in real time

Sony BVM-HX310 (BVM_HX310, BVM/HX310, BVM_HX310) 31inch 4K Trimaster HX Professional Master Monitor

It’s the 4K HDR monitor professional colourists have been waiting for. An optimal choice for critical colour grading and CG tasks, the BVM-HX310 offers support for industry‑leading wide colour gamuts including DCI‑P3, ITU‑R BT.2020, S‑Gamut3.cine and S‑Gamut3. With consistent, faithful colour reproduction over the entire luminance range, it’s an ideal partner for cinematography production and post production workflow with Sony’s 4K cinematography cameras.

Note: BVM‑HX310 does not cover the ITU-R BT.2020, S-Gamut/S-Gamut3 and S-Gamut3.cine colour space in full.

Fully realising the advanced performance of the TRIMASTER HX panel, the BVM-HX310 achieves 1,000 nits* of full-screen brightness with 1,000,000:1 contrast ratio. It’s ideal for producing High Dynamic Range (HDR) content with rich, deep black areas and accurate reproduction of bright peak highlights. Together with support for a much wider colour gamut than conventional monitors, the BVM-HX310 can reproduce high-resolution HDR images with images clarity, depth and realism.

As well as conventional 2.2, 2.4, 2.6, and CRT gamma, the BVM-HX310 supports standardized Electro-Optical Transfer Functions (EOTF) for HDR such as SMPTE ST.2084 and ITU-R BT.2100 (HLG). Both standards are used to meet the demands of today’s broadcast and cinematography industries. Additional EOTF tables for live and post production environments include 2.4 (HDR), S-Log2 (HDR), S-Log3 (HDR) and S-Log3 (Live HDR) – enabling easy workflows close to that of film while delivering 4K wide dynamic range.

Support for VPID (Video Payload ID) identifies EOTF, colour space and RGB source information embedded in the SDI signal. Monitor settings are adjusted automatically, cutting the risk of human error in pressured live production environments.

The BVM-HX310 effortlessly keeps pace with today’s production workflows. Integration in the latest system environments is streamlined with a single-cable 12G-SDI input, plus connections for 3G-SDI, HD-SDI including Single Link/Dual Link and HDMI (HDCP2.3/1.4).

Easily check the effect of different LUTs while you’re on set or in post. Load customised User LUT (Look Up Table) files from a USB stick for comparison during pre-grading or with a different EOTF. See the effect of different LUTs at the touch of a button.

Quad View Display mode allows instant comparison of up to four sets of custom display settings, including EOTF, Colour Space, Transfer Matrix and Colour Temperature, Contrast, Brightness and Chroma. It’s invaluable for comparing original footage with the look of different EOTF converted images. View up to four LUTs side-by-side in Quad View display mode.

Minimal processing delays are a critical factor in live production and broadcasting applications. With a processing delay of less than one video frame, the BVM-HX310 is ideally suited to the demands of real time video monitoring.

Interlace Display mode offers faithful reproduction of 1080i input signals, free from artefacts and picture degradation that can often occur during I/P conversion.

Anyone who’s used the BVM‑X300 master monitor will feel instantly at home with the familiar front control panel of the BVM-HX310. Seven user assignable function buttons are complemented by manual controls for aperture, chroma, brightness, and contrast. Usability is enhanced further with dimmable button lights and on/off switchable indicator lights.

Picture Performance

  • Panel: α-Si TFT Active Matrix LCD
  • Picture Size (Diagonal): 789.1 mm (31.1 inches)
  • Effective Picture size (H x V): 698.0 x 368.1 mm (27 1/2 x 14 1/2 inches)
  • Resolution (H x V): 4096 x 2160 pixels
  • Aspect: 17 : 9 (1.89 : 1)
  • Pixel Efficiency: 99,99%
  • Panel Drive : 10-bit
  • Panel Frame Rate: 48 Hz / 50 Hz / 60 Hz (48 Hz and 60 Hz are also compatible with 1/1.001 frame rates)
  • Viewing Angle (Panel Specification): 89°/89°/89°/89° (up/down/left/right contrast > 10:1)
  • Colour Temperature: D55, D61, D65, D93, DCI*1, and user 1-5 (5,000 K to 10,000 K adjustable), DCI XYZ
  • Luminance (Panel Specification) (Typical): 1000 cd/m2
  • Colour Space (Colour Gamut): ITU-R BT.2020*2, ITU-R BT.709, EBU, SMPTE-C, DCI-P3*2, Native*3, S-GAMUT3*2, S-GAMUT3.cine*2
  • Transmission Matrix: ITU-R BT.2020 (Non-constant luminance is supported), ITU-R BT.709
  • EOTF: 2.2, 2.4, 2.6, CRT, 2.4 (HDR), S-Log3 (HDR), S-Log3 (Live HDR), S-Log2 (HDR), SMPTE ST 2084(HDR), ITU-BT.2100(HLG)

Input

  • SDI 1 input: (3G/HD) BNC type (x4) Input impedance: 75 Ω unbalanced
  • SDI 2 input: (12G/6G/3G/HD) BNC type (x2) , (3G/HD) BNC type (x2), Input impedance: 75 Ω unbalanced
  • HDMI: HDMI (HDCP2.3/1.4) (x1)
  • Serial remote (LAN): Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1)

Output

  • SDI 1 MONITOR output*4: (3G/HD) BNC type (x4) , Output impedance: 75 Ω unbalanced
  • SDI 2 output: (12G/6G/3G/HD) BNC type (x2) , (3G/HD) BNC type (x2) , Output impedance: 75 Ω unbalanced
  • Audio monitor: Stereo mini jack (x1)
  • Headphones: Stereo mini jack (x1)

General

  • Power Requirement: AC 100 V to 240 V, 5.1 A to 2.1 A, 50/60 Hz
  • Power Consumption: Approx. 450W (max.)
  • Operating Temperature: 0°C to 35°C (32°F to 95°F) Recommended: 20°C to 30°C (68°F to 86°F)
  • Operating Humidity: 30% to 85% (no condensation)
  • Storage / Transport Temperature : -20°C to +60°C (-4°F to +140°F)
  • Storage / Transport Humidity: 0% to 90%
  • Operating / Storage / Transport Pressure: 700 hPa to 1060 hPa
  • Dimensions (W x H x D): 778 x 519.5 x 230 mm (30 3/4 x 20 1/2 x 9 1/8 inches)
  • Mass Approx: 30kg (66 lb 2 oz)
  • Supplied Accessories: AC power cord (1), AC plug holder (1), CD-ROM (1), Before Using This Unit (1)

In the box

  • 1x BVM-HX310 31inch 4K Trimaster HX Professional Master Monitor
