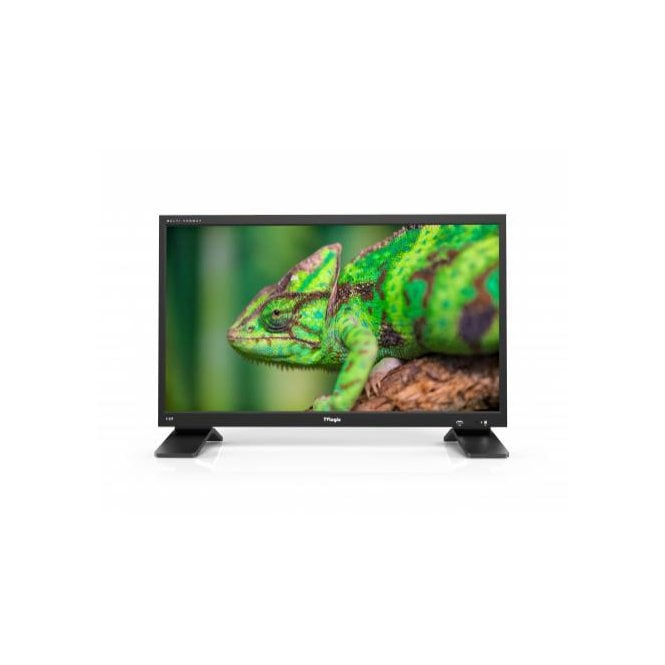

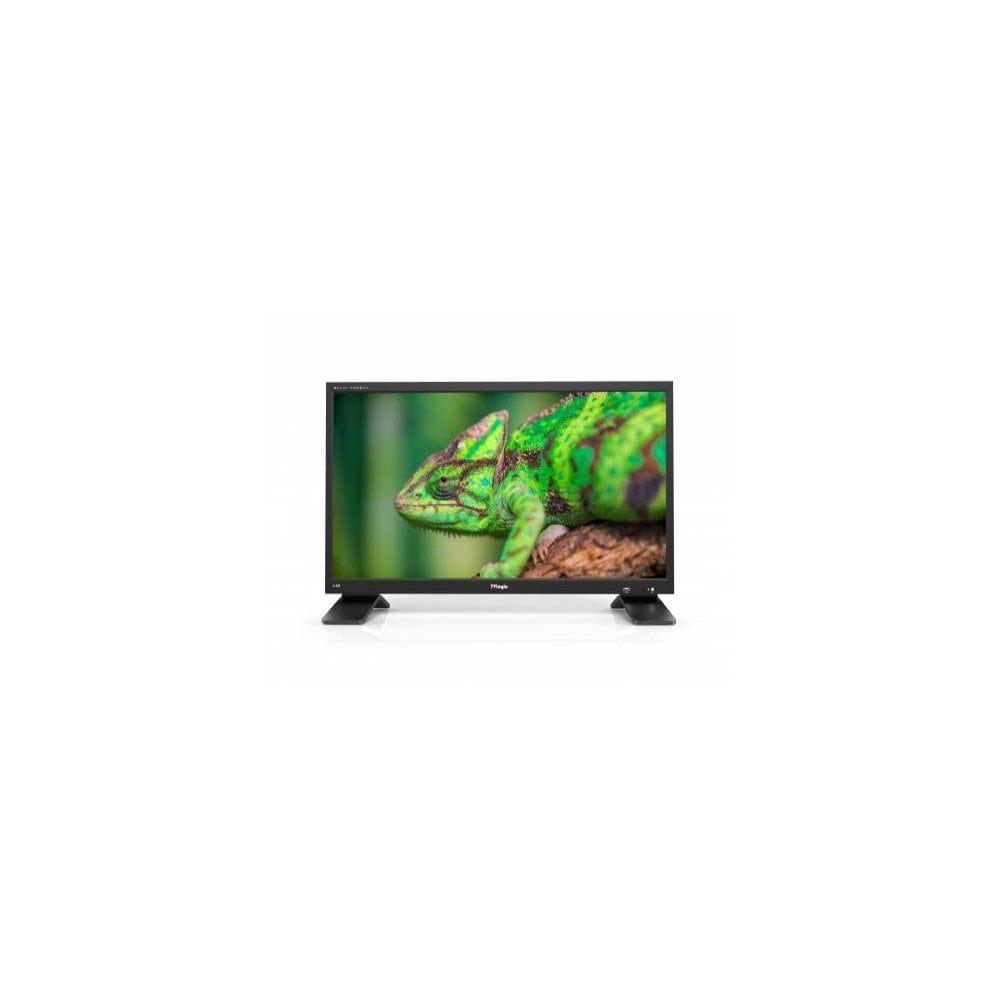

TV Logic S-32P 32 Inch Full HD Studio Wall Monitor with SFP module & Ember Protocol

TV logic S-32P (S/32P, S_32P, S32P, S 32P, s-32p) 32 Inch Full HD Studio Wall Monitor with SFP module & Ember Protocol

The S-32P is a Full HD Studio Wall monitor with high contrast ratio and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-series provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

LCD

• Size: 31.5”
• Resolution: 1920 x 1080 (16 : 9)
• Color Depth: 16.7M colors
• Viewing Angle (Typ.): 178°(H) / 178°(V)
• Luminance (Max.): 400cd/m2 (Center)
• Contrast Ratio: 1200:1
• Display Area: 698(H) x 393(V) mm

Input

• CVBS Input: BNC (x3) / NTSC, PAL
• YPbPr Input: BNC (x3) / Y,Pb,Pr
• SDI Input: BNC (x2) (A,B channel)
• HDMI Input: HDMI (x1) / up to 1080p
• DVI Input: DVI (x1) / up to 1080p
• Audio Input: Embedded Audio / Analog Stereo (Phone Jack)
• RS-422 Input: RJ-45

Output

• CVBS Output: BNC (x3) (loop through out)
• YPbPr Output: BNC (x3) (loop through out)
• SDI Output: BNC (x2) (SDI A/B channel loop through out)
• Audio Output: Analog Stereo (Phone Jack) / Internal Speaker

(Mixed Mono)

• RS-422 Output: RJ-45

Analog Input Signal Formats

• CVBS (Composite): NTSC/ PAL , 1.0Vp-p (With Sync)
• YPbPr (Component): 1.0Vp-p (Y with Sync), 0.7Vp-p (Pb,Pr)

SDI Input Signal Formats

• SMPTE 424M (3G-SDI): 1080p (60/59.94/50)

SMPTE 292 (HD-SDI):

• 1080p (30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
• 720p (60/59.94/50) , 1080i
• (23.98/29.97/30/50/59.94/60)

• SMPTE 344M (SD-SDI): 480p, 576p
• SMPTE 259M (SD-SDI): 480i, 576i
• 2K Format: 2048 x 1080 (23.98p/23.98PsF/24/24PsF/)

HDMI/DVI Input Signal Formats
HDMI/DVI (CEA-861):

• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• 1080i (60/59.94/50)
• 720p (60/59.94/50)

• PC (VESA): 800x600, 1024x768, 1280x1024, 1920x1080

General

• Power DC: 12V / 24V / AC 100~240V(50~60Hz)
• Power Consumption (Approx.): 24Watts
• Operating: 0°C to 40°C (32°F to 104°F )
• Storage Temperature: -20°C to 60°C (-4°F to 140°F )

Main body Dimensions

• Main body: 733.4 x 453 x 84.7 (mm) / 28.87 x 17.83 x 3.33 (inch)
• With Stand: 733.4 x 501.5 x 309.77 (mm) / 28.87 x 19.74 x 12.19 (inch)
• Weight: 14.4Kg / 31.74 Ibs

In the Box

• TV Logic S-32P 32 Inch Full HD Studio Wall Monitor
• AC Power Cable (1)
• Stand (1)
