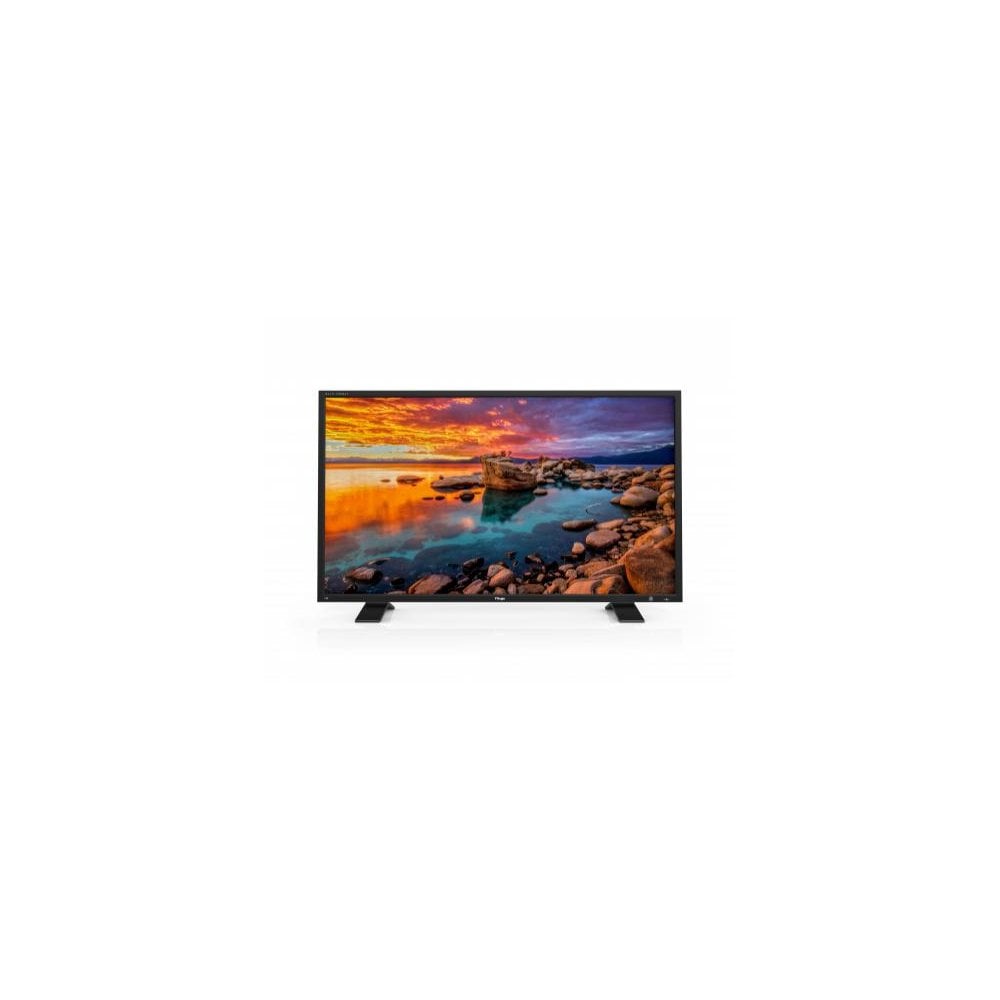

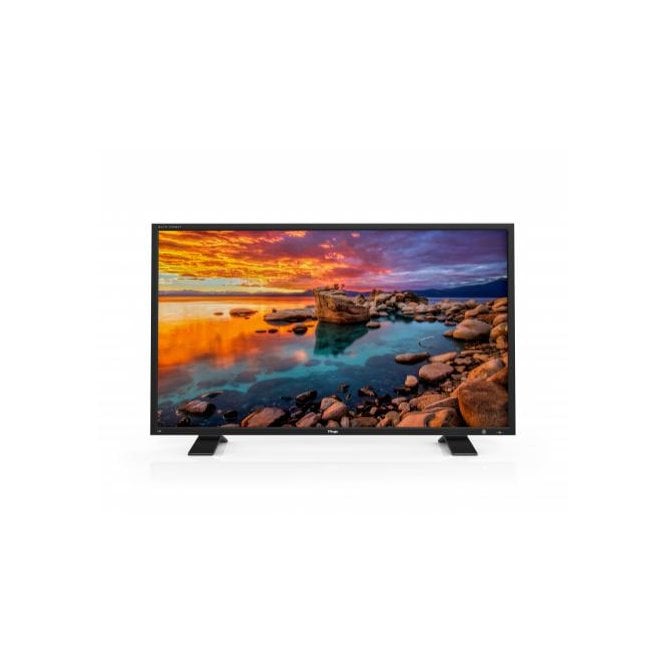

TV Logic S-55P 55 Inch FHD Studio Wall Monitor with SFP Module & Ember Protocol

TV logic S-55P (S/55P, S_55P, S55P, S 55P, s-55p) 55 Inch FHD Studio Wall Monitor with SFP Module & Ember Protocol

The S-55P is Full HD Studio Wall monitor with high contrast ratio and wide viewing angle. It supports various video formats including 3G/HD-SDI, HDMI and DVI. The SFP interface can be supported for versatility. The S-series provides network control by Ember+ protocol and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

LCD

• Size: 55”
• Resolution: 1920 x 1080 (16 : 9)
• Color Depth: 1.07B colors
• Viewing Angle (Typ.): 178°(H) / 178°(V)
• Luminance (Max.): 450cd/m2 (Center)
• Contrast Ratio: 1200:1
• Display Area: 1209(H) x 680(V) mm

Input

• CVBS Input: BNC (x3) / NTSC, PAL
• YPbPr Input: BNC (x3) / Y,Pb,Pr
• SDI Input: BNC (x2) (A,B channel)
• HDMI Input: HDMI (x1) / up to 1080p
• DVI Input: DVI (x1) / up to 1080p
• Audio Input: Embedded Audio / Analog Stereo (Phone Jack)
• RS-422 Input: RJ-45

Output

• CVBS Output: BNC (x3) (loop through out)
• YPbPr Output: BNC (x3) (loop through out)
• SDI Output: BNC (x2) (SDI A/B channel loop through out)
• Audio Output: Analog Stereo (Phone Jack) / Internal Speaker

(Mixed Mono)

• RS-422 Output: RJ-45

Analog Input Signal Formats

• CVBS (Composite): NTSC/ PAL , 1.0Vp-p (With Sync)
• YPbPr (Component): 1.0Vp-p (Y with Sync), 0.7Vp-p (Pb,Pr)

SDI Input Signal Formats

• SMPTE 424M (3G-SDI): 1080p (60/59.94/50)

SMPTE 292 (HD-SDI):

• 1080p (30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)
• 720p (60/59.94/50) , 1080i
• (23.98/29.97/30/50/59.94/60)

• SMPTE 344M (SD-SDI): 480p, 576p
• SMPTE 259M (SD-SDI): 480i, 576i
• 2K Format: 2048 x 1080 (23.98p/23.98PsF/24/24PsF/)

HDMI/DVI Input Signal Formats

HDMI/DVI (CEA-861):

• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• 1080i (60/59.94/50)
• 720p (60/59.94/50)

• PC (VESA): 800x600, 1024x768, 1280x1024, 1920x1080

General

• Power: DC 12V / 24V / AC 100~240V(50~60Hz)
• Power Consumption (Approx.): 24Watts
• Operating: 0°C to 40°C (32°F to 104°F )
• Storage Temperature: -20°C to 60°C (-4°F to 140°F )

Main body Dimensions

• Main body: 1262 x 736 x 76.4 (mm) / 49.68 x 28.97 x 3 (inch)
• With Stand: 1262 x 784.5 x 309.3 (mm) / 49.68 x 30.88 x 12.17 (inch)
• Weight: 32.8Kg / 72.31 Ibs

In the Box

• TV Logic S-55P 55 Inch FHD Studio Wall Monitor
• SFP Module & Ember Protocol
• AC Power Cable (1)
• Stand (1)
