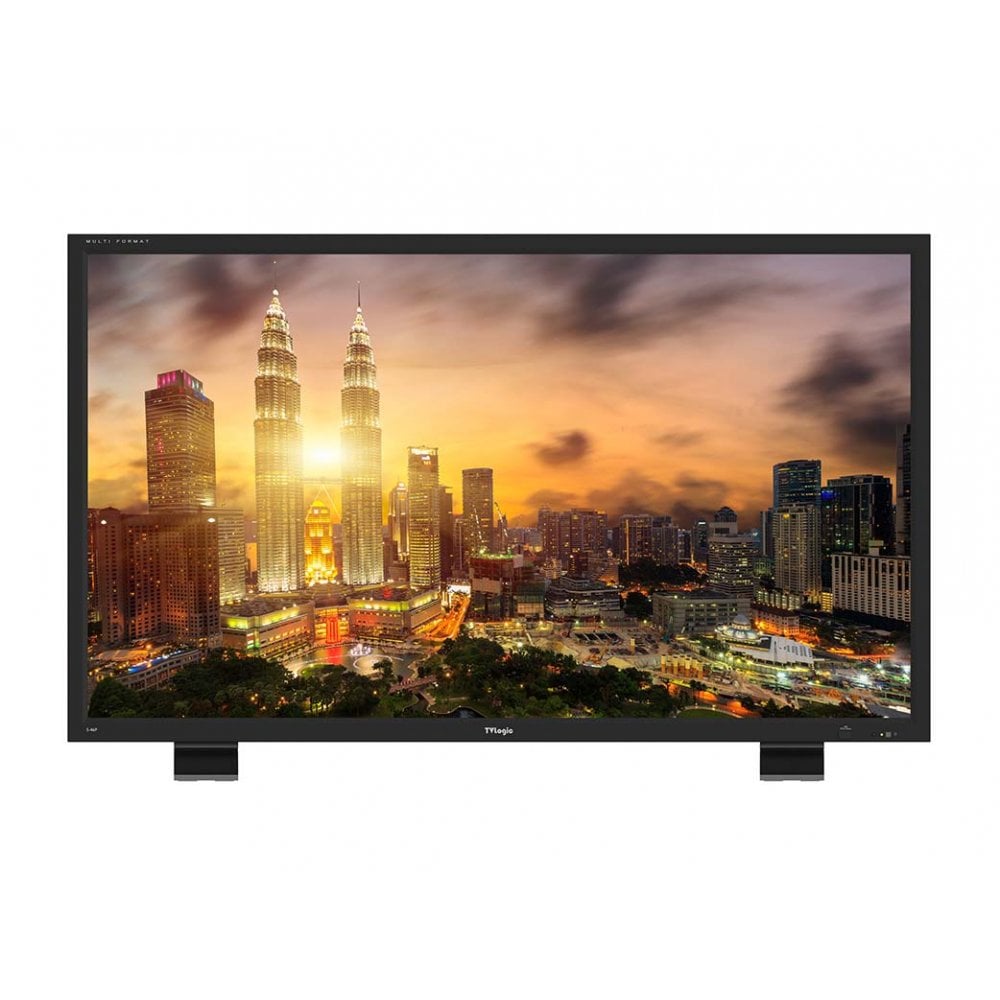

TV Logic TVLogic S-46P

TVLogic S-46P, TVL-S-46P (TVL_S-46P, TVL S-46P, TVL/S-46P, S-46P)

46" FullHD Studio wall monitor 2×3G-SDI Input & Output , 1×DVI Input, 1×HDMI Input 2×SFP Input & Output (combined) , Internal Router (Selectable Output) Network control by Ember+ / TSL UMD / Tally / Timecode control by Ember+ / TSL HDR Emulation (PQ / H

Display Spec.

 Size 46"

 Resolution 1920 X 1080 (16:9)

 Pixel Pitch 0.530mm

 Color Depth 1.07B

 Viewing Angle 178°(H) / 178°(V)

 Luminance 450cd/m2

 Contrast Ratio 4,000:1

 Display Area 1018.08(H) × 572.67(V) mm

Input

 2 X BNC 3G-SDI A/B Channel Input

 1 X HDMI HDMI Input

 1 X DVI DVI Input

 2 X SFP Module Optical Input/ Output(Combined, Option)

Output

 2 X BNC 3G-SDI Output

Input Signal

 3G SDI 2.970Gbps

 HD SDI 1.485Gbps

 SD SDI 270Mbps

 HDMI 480i/480p/576i/576p/720p/1080i/1080p/640x480/ 720x400/800x600/1024x768/1600x1200

 DVI Analog 640x480/720x400/800x600/1024x768/1600x1200/1920x1080

 DVI DP 640x480/720x400/800x600/1024x768/1600x1200/1920x1080

 DVI DH 1080p (24/25/30/50/60)/1080i(50/60)/720p(50/60)/ 480i(60)/480p(60)/576i(50)/576p(50)

SDI Input Signal Formats

 SMPTE 425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/50)

 SMPTE 372 Dual HD-SDI YCbCr(4:2:2) 1080p (60/59.94/50) Dual HD-SDI YCbCr/RGB(4:4:4) 1080i (60/59.94/50) 1080p (30/29.97/25/24/ 24sF/23.98/23.98sF)

 SMPTE 296 720p (60/59.94/50)

 SMPTE 274 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.98sF)

 SMPTE 260 1035i (60/59.94)

 SMPTE 125 480i (59.94)

 ITU-R BT.656 576i (50)

 2K Format 2048 x 1080p (24/24sF/23.98/23.98sF)

Audio

 Audio In Embedded Audio/Analog Stereo (Phone Jack)

 Audio Out -

FPGA Functions

 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Mono,  Range Error,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector

Closed Caption

 CC-608 ANC,  CC-608 LINE 21,  CC-708,  CC-KOR

Calibration

 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

 REMOTE   GPI (RJ45)

 REMOTE   TVLogic’s specification

 USB   Firmware update by USB memory stick

 Ethernet   Ethernet Control support

Options

 Stand,  Carrying Case,

Dimensions

 Main Stand     1070.6 x 630.5 76.4 (mm) / 42.15 x 24.82 x 3.00 (inch)

 With Stand      1070.6 x 679.2 x 309.3 (mm) / 42.15 x 26.74 x 12.18 (inch)

 Weight      26.8kg / 59.08lbs

What's in the box:

•  1x S-46P monitor
