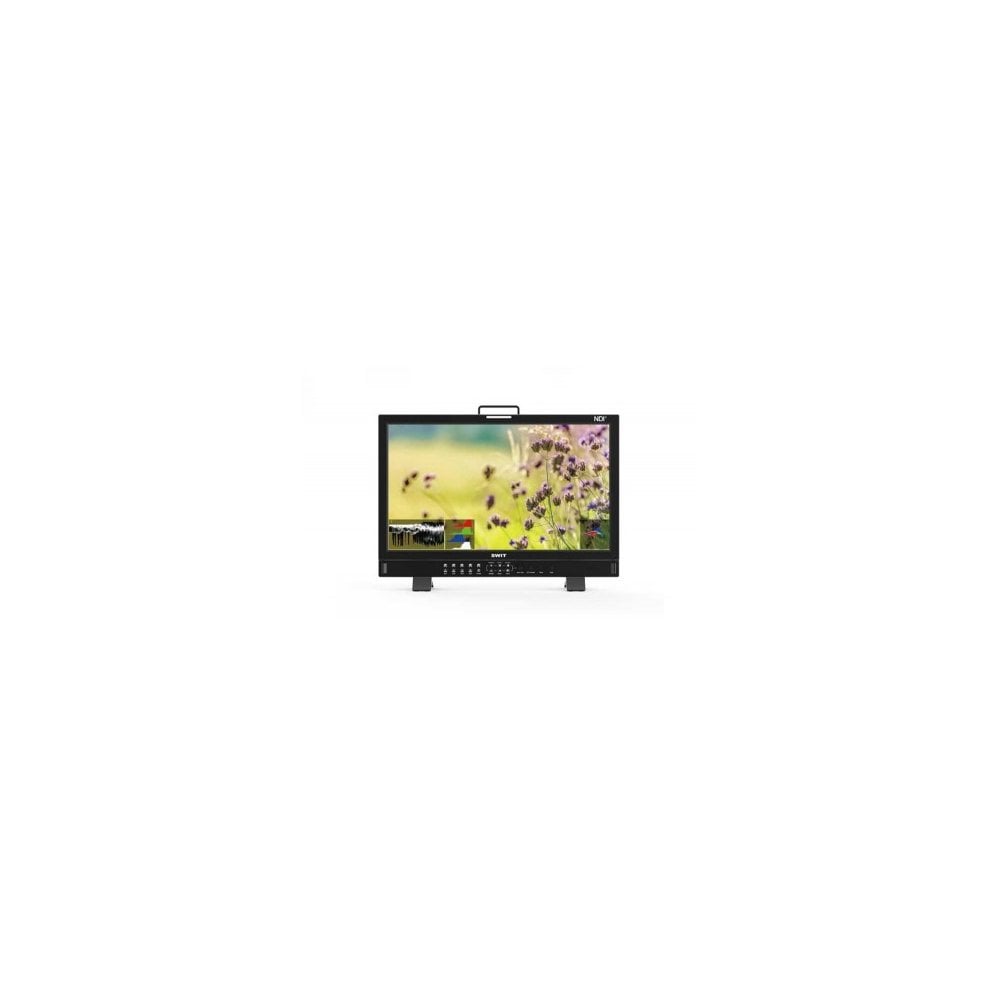

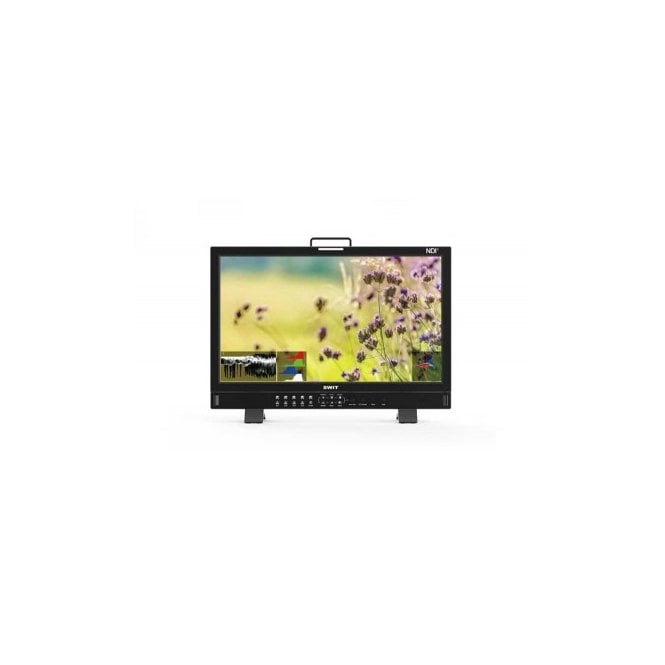

Swit BM-245-NDI | 23.8" 4K-NDI QLED HDR 100%DCI-P3 Zero-Delay professional FHD Monitor with Auto-Calibration

SWIT BM-245-NDI | 23.8" 4K-NDI QLED HDR 100%DCI-P3 Zero-Delay professional FHD Monitor with Auto-Calibration

BM 245 NDI BM245NDI BM-245-NDI BM/245/NDI

23.8-inch WCG Panel

FHD, 100% DCI-P3 Coverage

The BM-245-NDI monitor adopts a 23.8-inch FHD 1920x1080 LCD panel, 100% DCI-P3 coverage wide colour gamut, 400nits LED backlight, H/V 178° viewing angle for professional NDI® broadcast productions.

NDI®, SDI and HDMI

BM-245-NDI monitor provides multiple inputs including:

• High bandwidth NDI® up to 4K;
• 3GSDI input×2; Loop out×1
• NDI® decode to 3GSDI out ×1
• HDMI 2.0 input ×1

NDI® Sources Selection

All NDI® sources will be auto detected when the monitor is connected to NDI® network, and quickly select NDI® sources from a list in monitor menu. The monitor supports Discover Server to pull NDI® sources from different IP segments, and support NDI® low bandwidth mode as well.

PBP / PIP Display Mode

You can select any 2 sources from NDI®, SDI or HDMI to display simultaneously by Pic-by-Pic mode or Pic-in-Pic mode.

HDR/SDR EOTFs and Colour Gamut Selection

The BM-245-NDI provides HLG (Hybrid Log Gamma), Dolby Vision PQ, SONY S-Log3 HDR and Gamma 1.0/1.8/2.2/2.4/2.6 SDR EOTFs, and Colour Gamut selection from LCD native, REC.709, DCI-P3 and REC.2020.

3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates colour patterns and the colour probes read the colour , send colour info to monitor via USB. Then the monitor compares the colour difference and generate 3DLUT and calibrate itself automatically. Calibration time: X-rite i1 15min, Specbos 1211 45min Calibration result: ∆E≤1.0

VICO 1.97 Eye Protect

BM-245-NDI monitor has a specially adjusted spectrum of its LED backlight, to reduce blue and balance the R/G/B peak, which will stimulate people’ s cone cells evenly, and reducing visual fatigue effectively.

The VICO (Visual Health and Comfort) testing scores 1.97, A class, to protect your eyes from long time video editing or broadcast studio productions.

Audio Patterns

BM-245-NDI monitor will de-embed

• 2-ch NDI audios;
• 8-ch HDMI audios;
• 16-ch SDI audios,

display audio meters and Lissajous paterns, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.

Webserver IP Remote Control

The BM-245-NDI supports webserver remote control by Ethernet LAN connection.

Use a computer web browser to open the monitor control panel, and select input sources, adjust picture parameters, set up video / audio functions and assign function keys, etc, without installing any APP.

Power Supply

The BM-245-NDI consumes 45W power, supports both AC 100-240V input and 4-pin XLR DC 12-17V input, and equipped with a V-mount battery plate on the rear panel. (Gold mount for option)

Key Features:

• 23.8-inch 1920×1080 IPS LCD Panel
• 100% DCI-P3 wide colour gamut coverage
• VICO 1.97 A-class Eye Protecting LCD
• High bandwidth 4K NDI® monitoring
• 3GSDI 2-in 1-loop, HDMI2.0 input
• NDI® decode to 3GSDI output
• NDI®/SDI/HDMI PBP or PIP view
• Auto detect and quick select NDI® sources
• Support NDI® Discover Server
• Support NDI® Low bandwidth mode
• Rec 709 / DCI-P3 / Rec 2020 colour gamut selection
• 3DLUT Auto Self-calibration without PC
• Built-in Delog LUTs and User LUTs upload by USB
• Waveform / Vector / Histogram
• Focus assist / False colour / Zebra
• 16-ch audio meters / Lissajous pattern
• IP webserver remote control
• AC, DC and battery plate power

Specifications

LCD Performance

• Size: 23.8 inches
• Display Area: 527.04×296.46mm
• Resolution: 1920×1080
• Aspect Ratio: 16:9
• Brightness: 400nits
• Contrast: 1000:1
• Colour Gamut: 100% DCI-P3
• Colour Depth: 16.77M colours, 8-bit

Eye Protect

VICO 1.97

• Viewing Angle: 178°(H) /178°(V)

Input

• RJ45 ×1
• High bandwidth 4K NDI®
• BNC ×2
• 3G/HD/SD-SDI input
• HDMI ×1
• HDMI 2.0 input
• RS485 ×1
• TSL 3.1/4.0 UMD input
• RS485 ×1
• GPI (Tally) input

Output:

• BNC ×1
• 3G/HD/SD-SDI loop output: BNC×1
• NDI® decoded to SDI output: RS485 ×1
• TSL 3.1/4.0 UMD output
• Analog audio: 3.5mm headphone and speaker

Video Format:

NDI®

• 4096×2160p (30 / 29.97 / 25 / 24 / 23.98)
• 3840×2160p (30 / 29.97 / 25 / 24 / 23.98)
• 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 2048×1080i (50 / 59.94 / 60)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)

NDI® decoded to SDI out

• 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 2048×1080i (50 / 59.94 / 60)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)

SDI IN1/2 and LOOP

• 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 2048×1080i (50 / 59.94 / 60)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94), 576i (50)

HDMI IN

• 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)

General:

• Input Voltage: DC 12V-17V, AC 100-240V, 50/60Hz
• Power Consumption: 45W
• Working Temperature: 0°C～+50°C
• Working Humidity: 10%～90%
• Storage Temperature: -15°C～+60°C
• Storage Humidity: 10%～90%
• Dimensions: 580.9×392.3×73.6mm
• Net weight (main body): 6.7kg

What's in the box

• Swit BM-245-NDI 23.8-inch Professional NDI Monitor
