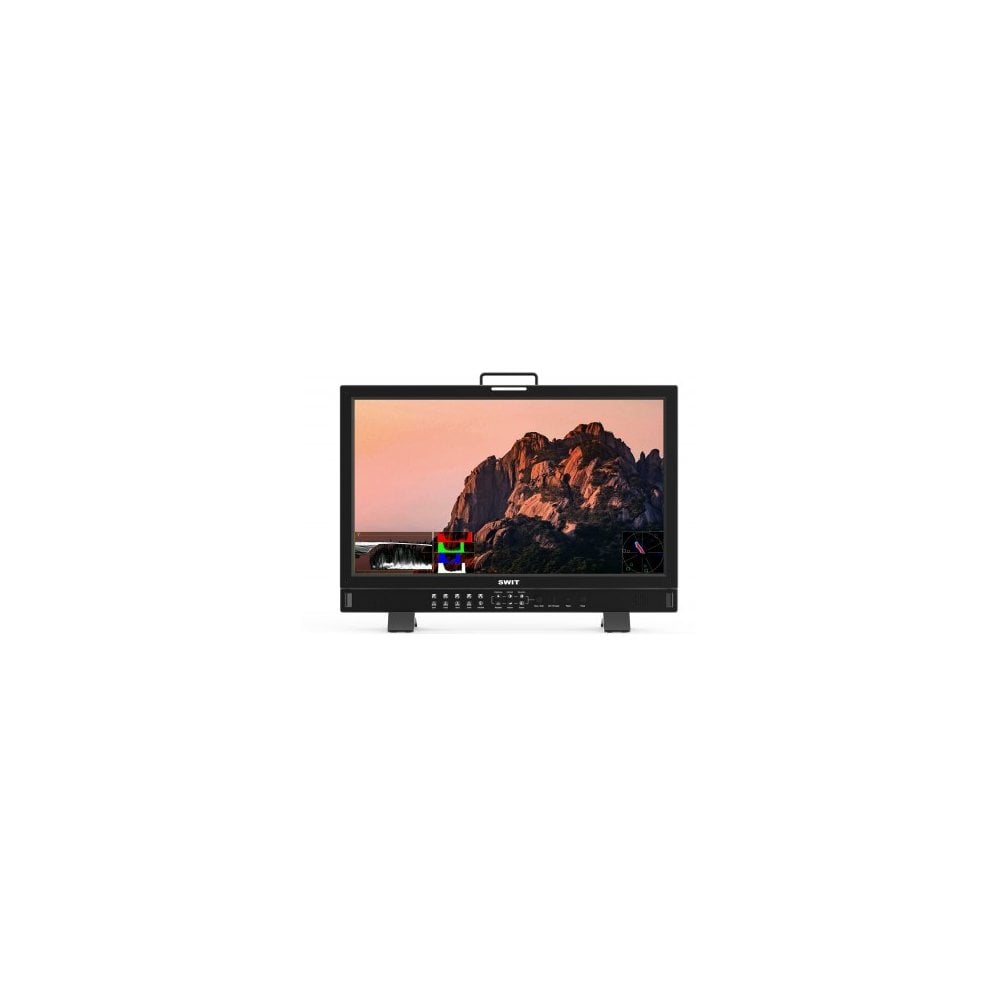

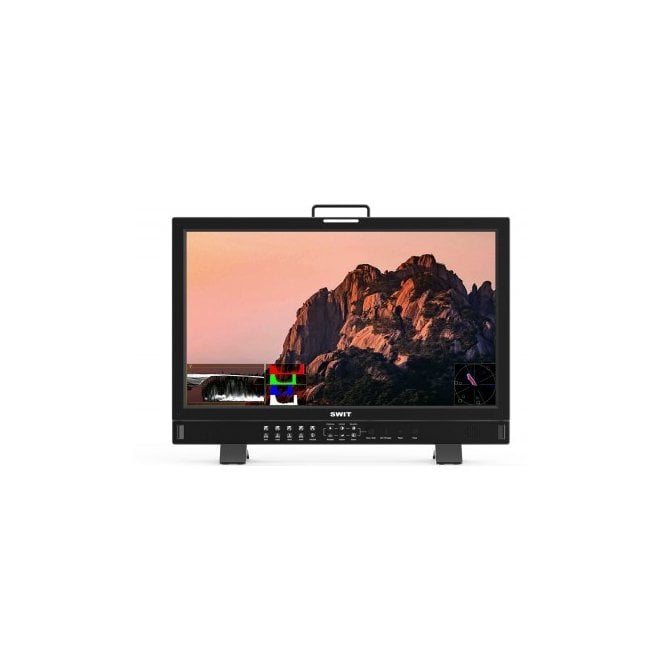

Swit BM-H245 | 23.8" 12G-SDI 4K QLED HDR 100%DCI-P3 Zero-Delay professional FHD Monitor with Auto-Calibration

code: BM-H245
  • £2,418.85
Status   |   Usually dispatched within 24 hours
Loading...

Features

  • 12GSDI, 4x3GSDI, HDMI2.0 4K input
  • 4-ch SDI/HDMI mixed multiview
  • 2-ch SDI/HDMI PBP or PIP view
  • Multi Colour Gamut & HDR/SDR Viewing



SWIT BM-H245 | 23.8" 12G-SDI 4K QLED HDR 100%DCI-P3 Zero-Delay professional FHD Monitor with Auto-Calibration

BM H245 BMH245 BM-H245 BM/H245

23.8-inch FHD Panel

8-bit IPS LCD

BM-H245 adopts a 23.8-inch FHD 1920x1080 LCD panel, 8-bit 16.77M colours, 250nits, 1000:1 contrast, H/V 178° viewing angle for broadcast and film productions.

Multi 4K Interfaces

BM-H245 provides 4x SDI inputs and 2x SDI loop outputs, supports multiple 4K inputs including:

  • - 12GSDI Single link 4K;
  • - 4x3GSDI Quadlink 4K, (SQD and 2SI)
  • - HDMI 2.0 (4K60P)

Display Modes

Supports Single link 4K input including 12GSDI, HDMI2.0, and Quad link 4x 3GSDI 4K inputs. You can also input 4x independent sources to multi view, or 2x sources Pic-by-Pic or Pic-in-Pic view, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, colour gamut selection for each input.

Multi CG & EOTF Viewing

Supports 1 input source copied to 4 windows and display different HDR/SDR and colour gamut simultaneously. You can get correct reference when producing HDR and SDR together.

HDR/SDR De-log LUTs

The monitor has built-in multi camera logs to HLG1000, PQ1000 or Rec 709 SDR conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm etc. You can also upload User LUTs to monitor by USB disk, support 17x17x17 3DLUT cube files.

Audio Patterns

Max 16-ch embedded audio meters display, and select any 2 channels audio to output via speaker or 3.5mm headphone socket.

Moreover, BM-H monitors support Lissajous figures and 5.1 & 7.1 surround sound patterns.

Key Features:

  • 12GSDI, 4x3GSDI, HDMI2.0 4K input
  • 4-ch SDI/HDMI mixed multi view
  • 2-ch SDI/HDMI PBP or PIP view
  • Multi Colour Gamut & HDR/SDR Viewing
  • 18-bit internal colour processing
  • Audio/Video Zero latency for lip-sync
  • 3DLUT Auto Self-calibration without PC
  • Built-in Multi camera Delog LUTs
  • User 3DLUTs upload via USB
  • Waveform / Vector / Histogram / Eye pattern
  • Focus assist / False colour / Zebra
  • 16-ch audio meters / Lissajous pattern
  • 5.1 & 7.1 surround sound phase pattern
  • IP webserver remote control
  • TSL UMD and text TALLY display
  • USB firmware upgrade




Specifications

LCD Performance

  • Size: 23.8 inches
  • Display area: 527.04×296.46mm
  • Resolution: 1920×1080
  • Aspect ratio: 16:9
  • Brightness: 250nits
  • Contrast: 1000:1
  • Colour: 16.77 million colours
  • Viewing Angle: Horizontal: 178°; Vertical: 178°

Input

  • BNC ×1: 12G/6G/3G/HD/SD-SDI input
  • BNC ×3: 3G/HD/SD-SDI input
  • HDMI ×1: HDMI 2.0 input

Output

  • BNC ×1: 12G/6G/3G/HD/SD-SDI loop output
  • BNC×1: 3G/HD/SD-SDI input
  • RS485 ×1: TSL 3.1/4.0 UMD output

Video Format

SDI

  • 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • 2048×1080i (50 / 59.94 / 60)
  • 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • 1080i (60 / 59.94 / 50)
  • 1080psf (30 / 29.97 / 25 / 24 / 23.98)
  • 720p (60 / 59.94 / 50)
  • 480i (59.94), 576I (50)

HDMI

  • 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • 3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
  • 1080i (60 / 59.94 / 50)
  • 720p (60 / 59.94 / 50)

General:

  • Input voltage: DC 12V-17V, AC 100-240V, 50/60Hz
  • Power consumption: 60W
  • Working temperature: 0°C~+50°C
  • Working humidity: 10%~90%
  • Storage temperature: -15°C~+60°C
  • Storage humidity: 10%~90%
  • Dimensions: 580.9×392.3×73.6mm
  • Net weight (main body): 6.7kg



What's in the box

  • SWIT BM-H245 23.8-inch 4K input FHD Broadcast Monitor
