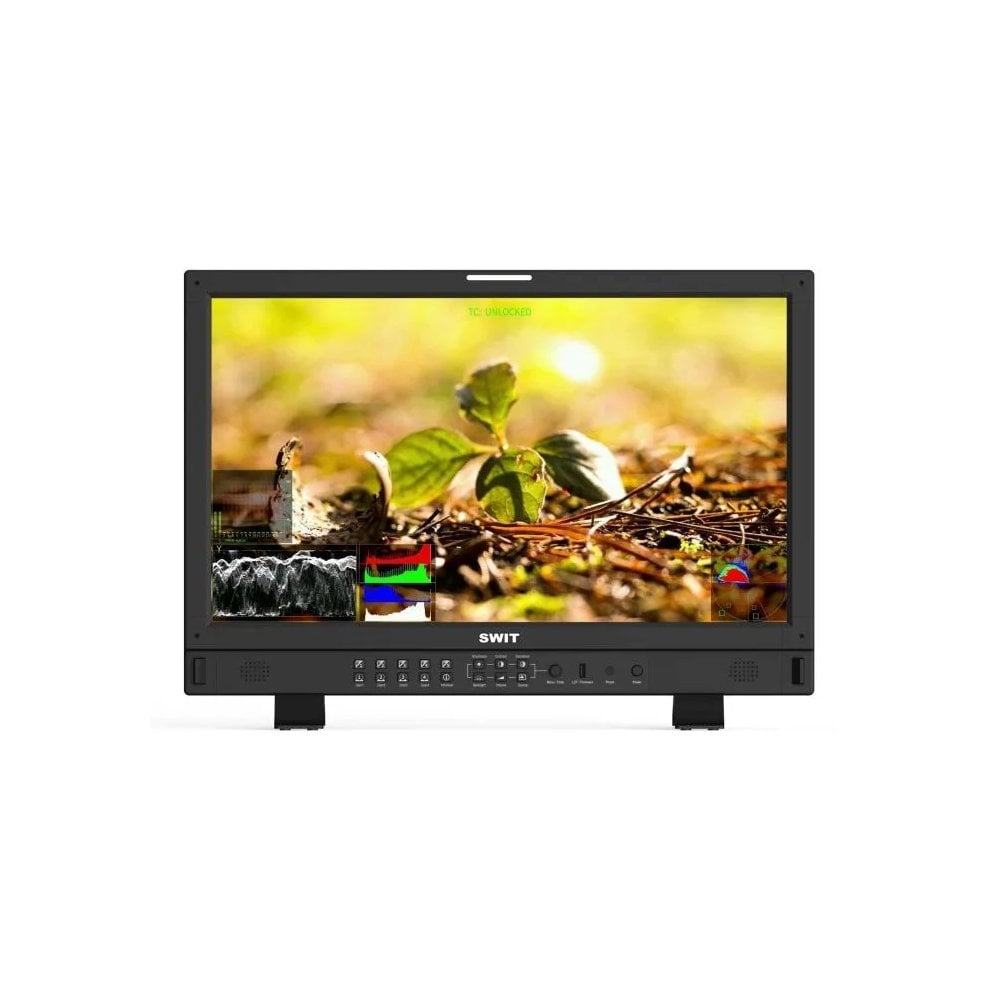

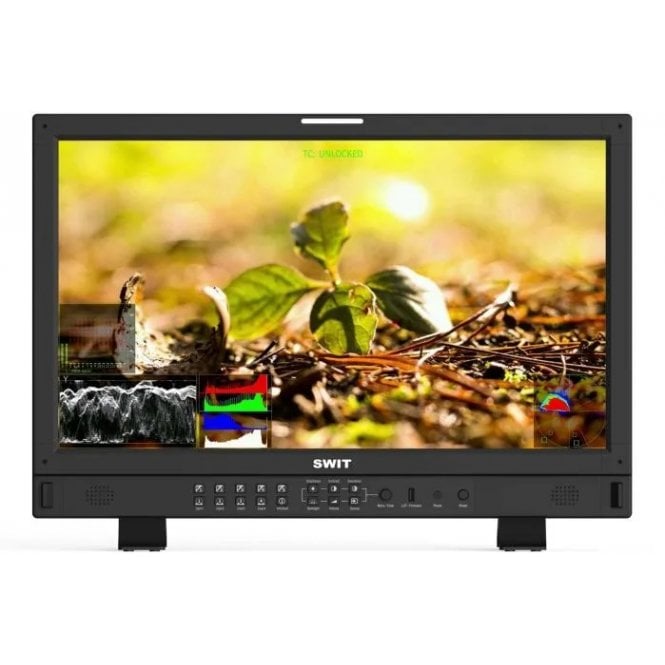

Swit BM-U245HDR 23.8-inch 4k 12gsdi HDR Studio Monitor

SWIT BM-U245HDR 23.8-inch 4k 12gsdi HDR Studio Monitor(BM-U245HDR, BMU245HDR, BM/U245HDR)

23.8-inch 1000nits 4K

UHD panel, 89% REC2020

BM-U245HDR adopts a 23.8-inch 10-bit LCD panel, UHD 3840×2160 resolution, 1000nits LED backlight, 1000:1 contrast, 91.9% DCI-P3 and 89% Rec2020 color gamut. The viewing angle is H178° / V178°.　

Multi 4K/8K Interfaces

12GSDI 4-in 4-out, supports:

Single link 4K; Quad link 4K and Quad link 8K

HDMI 2.0 (4K60P)

12GSDI via SFP Fiber (Optional)

ST2110 IP via SFP Fiber (Optional)

Display Modes

Supports Single link 4K input including 12GSDI, HDMI2.0 or 12GSDI via SFP, and Quad link 4x 3GSDI 4K or Quad link 4x 12GSDI 8K inputs. You can also input 4x independent 4K videos to multiview, supports 12G/6G/3G/HD-SDI and HDMI 2.0/1.4/1.3 mixed formats input, and waveform, vector, audio meters, EOTF, color gamut selection for each input.

Multi CG & EOTF Viewing

Supports 1 input source copied to 4 windows and display different HDR/SDR and color gamut simultaneously. You can get correct reference when producing HDR and SDR together.

3DLUT Auto Self-Calibration

By X-rite i1 or JETI Specbos 1211

With built-in 3DLUT calibration software, (software copyright) support X-rite i1 and Jeti Specbos 1211 probes to directly connect with the monitor USB port. The monitor generates color patterns and the color probes read the color, send color info to monitor via USB. Then the monitor compares the color difference and generate 3DLUT and calibrate itself automatically.

Size 23.8 inches

Display area 527.04×296.46mm

Resolution 3840×2160

Aspect ratio 16:9

Brightness 1000nits

Contrast 1000:1

Color 1.073G colors, 10-bit

Viewing Angle 178°(H) /178°(V)

Input

BNC ×4 12G/6G/3G/HD/SD-SDI input

HDMI ×1 HDMI 2.0 input

Output

BNC ×4 12G/6G/3G/HD/SD-SDI loop output

Video Format

SDI 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

2048×1080i (50 / 59.94 / 60)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

1080psf (30 / 29.97 / 25 / 24 / 23.98)

720p (60 / 59.94 / 50)

480i (59.94), 576I (50)

HDMI 4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

1080i (60 / 59.94 / 50)

720p (60 / 59.94 / 50)

General

Input voltage AC 100-240V, 50/60Hz, DC 12-17V

Power consumption 120W

Working temperature 0°C～+50°C

Working humidity 10%～90%

Storage temperature -15°C～+60°C

Storage humidity 10%～90%

Dimensions 593×404.5×92mm

Net weight (main body) 10kg

In the Box

SWIT BM-U245HDR 23.8-inch 4k 12gsdi HDR Studio Monitor
