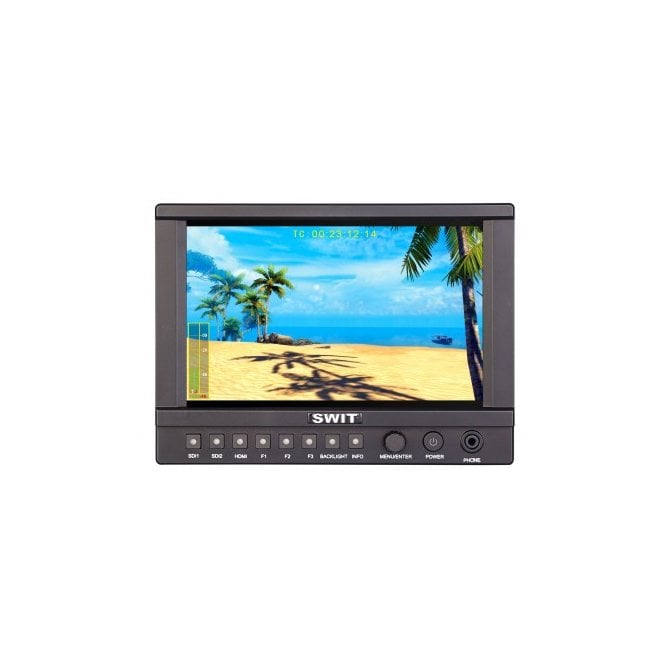

SWIT CM-S73H 7" Super Bright 3000nits 4K Monitor
CM S73H CMS73H CM-S73H CM/S73H
Swits New CM-S73H 7" Full HD (1920 x 1080) monitor has 3000 nits of brightness.
The monitor is based around Swit’s existing S-1073H, with the brightness increasing by a generous 525%. Display aids include R/G/B/Mono only, zebra, and false colour.
The monitor features built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2, S-log3, V-log, J-log1, RedLogFilm. You can also import own 3DLUTs to monitor by USB stick (support 17x17x17 3DLUT cube files).
The CM-S73H also boasts embedded audio monitoring of up to 16-ch meters with alerts and a select output. You can also select any 2 channels audio to output via 3.5mm socket or speakers.
The audiometer pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audiometer pattern are selectable.
7-inch 3000nit Super Bright
PQ/HLG/S-log3 HDR capable
The CM-S73H adopts a 7-inch super high bright LCD, the Max brightness is 3000nit, viewable under sunlight, and support PQ, HLG, S-log3 HDR display.
The native resolution is Full HD 1920×1200, contrast 1200:1
CM-S73H monitor supports:
CM-S73H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm.
You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.
Embedded audio monitoring
Up to 16-ch meters with alert and select output
Peaking, R/G/B/Mono only, Zebra, False Colour
Timecode, H/V delay, AFD, Scale Markers
CM-S73H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.
CM-S73H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor.
USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into CM-S73H monitor to upgrade, without PC connection.
Input Video Formats
CM-S73H supports the following input video formats:
4096×2160p (60 / 50 / 30 / 25 / 24)
3840×2160p (60 / 50 / 30 / 25 / 24)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)
480i/ 576i / 480p / 576p
SMPTE 2048-2:2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (60 / 59.94 / 50)
SMPTE-425M-A/B:1080P (60 / 59.94 / 50)
SMPTE-274M:1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
SMPTE-296M: 720p (60 / 59.94 / 50)
SMPTE-125M: 480i (59.94)
ITU-R BT.656:576i (50)
Audio Meter Level
With alert info and select any 2 channels to output
The audio meters support audio abnormal alert info display, for example if the channel has no audio signal, the audio meter position will display “UNLOCKED”, and if the channel has audio signal but no volume, it will display “MUTE”.
The audio meters can be selected to display only 2 channels or only 8 channels, and support alert info on/off switch, markers on/off switch, and display position can be selected from 4 corners, also the translucence of the pattern can be adjusted.
USB firmware Upgrade
GPI Pin Definition
The RJ45(RS485) port on the rear panel supports UMD control and GPI functions setting and control. There’re 4 GPI pins and can be assign the following functions, by shorting with GND pin to enable the functions.
Size: 7 inches
Display Area: 151.2×94.5mm
Aspect Ratio: 16:9 (4:3 adjustable)
Brightness: Max 3000cd/m2
Colour: 16.77 million colours
Viewing Angle: Horizontal: 160°; Vertical: 160°
What's in the box
