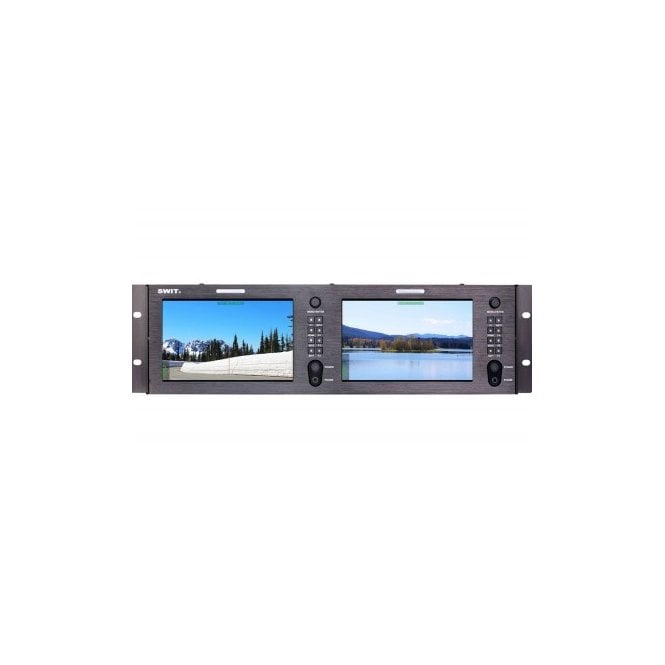

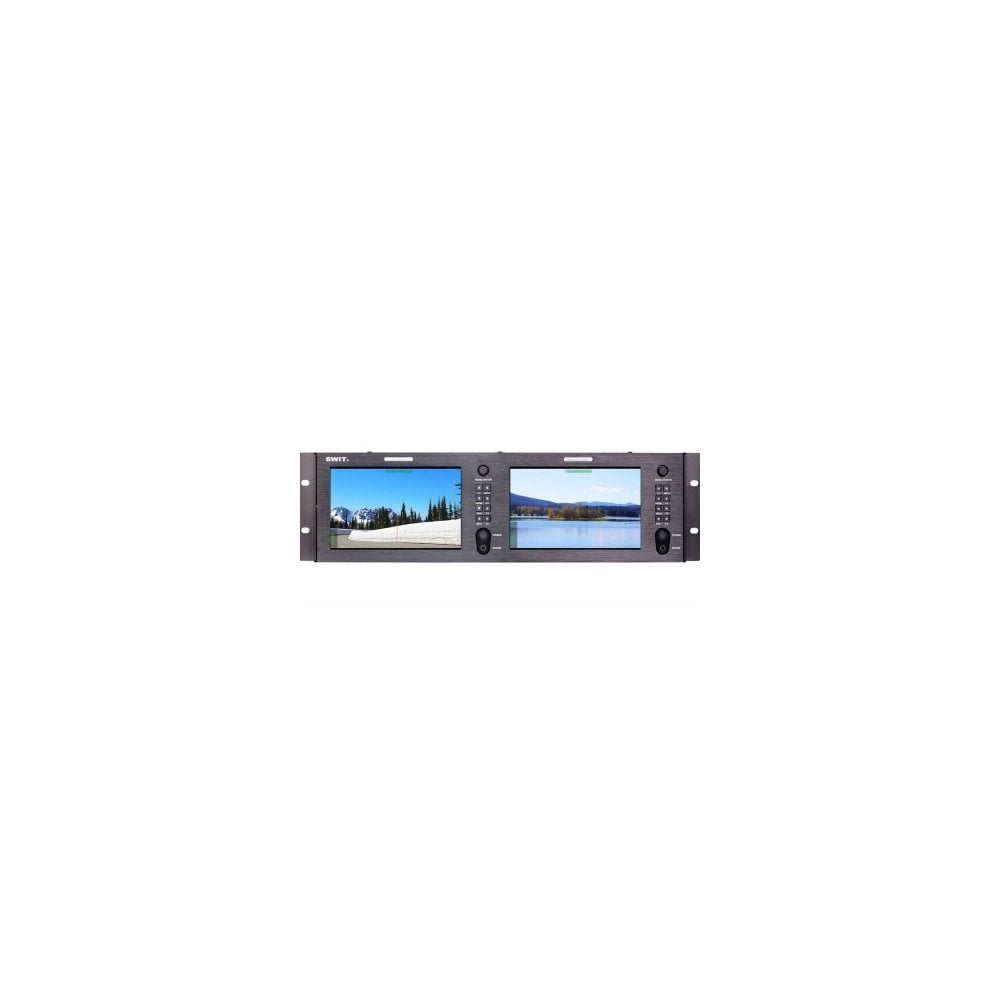

Swit M-1073H 2x7" Rackmount LCD Panel

SWIT M-1073H 2x7" Rackmount LCD Panel

M 1073H M1073H M-1073H M/1073H

7-inch Full HD LCD

TFT panel with LED backlight

The M-1073H adopts dual 7-inch LCD panels with LED backlight, The native resolution is Full HD 1920×1200, contrast 1000:1, and viewing angle is Horizontal: 160° / Vertical: 160°

Input/Output Interfaces

• 3G-SDI、4K-HDMI
• Each LCD of M-1073H supports:
• 2K/3G/HD/SD-SDI input × 2
• 2K/3G/HD/SD-SDI loop output × 1
• HDMI 2.0 (4K60p) input × 1
• HDMI 2.0 (4K60p) loop output × 1
• 3.5mm SDI/HDMI embedded audio output

3DLUT Log to Rec709

User LUT cube import

M-1073H monitor has built-in camera logs to Rec 709 conversion LUTs, including Log-C, C-log, S-log2， S-log3, V-log, J-log1, RedLogFilm.

You can also import own 3DLUTs to monitor by USB stick, support 17x17x17 3DLUT cube files.

Embedded audio monitoring

Up to 16-ch meters with alert and select output

M-1073H supports SDI-16ch and HDMI-2ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audiometer pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audiometer pattern are selectable.

Peaking, R/G/B/Mono only, Zebra, False colour

Timecode, H/V delay, AFD, Scale Markers

On-screen Tally

M-1073H supports on-screen TALLY display, and the TALLY control signal inputs via GPI(RS485) port on the rear panel of the monitor

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1073H monitor to upgrade, without PC connection.

Power Supply

M-1073H provides DC 6.5-24V power input socket, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

Installation

M-1073H is standard 19” rack mount fixing, occupies 3U height. The monitor is ±30° up and down rotatable when installed on racks.

Input Video Formats

M-1073H supports the following input video formats:

HDMI

• 4096×2160p (60 / 50 / 30 / 25 / 24)
• 3840×2160p (60 / 50 / 30 / 25 / 24)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 480i/ 576i / 480p / 576p

SDI

• SMPTE 2048-2: 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048×1080i (60 / 59.94 / 50）
• SMPTE-425M: 1080P (60 / 59.94 / 50)
• SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-296M: 720p (60 / 59.94 / 50)
• SMPTE-125M: 480i (59.94)
• ITU-R BT.656: 576i (50)

Key Features:

• Dual 7” non-glaring LCD, 1920×1200
• 19-inch 3U rack mount, ±30° rotatable
• 2K/3G/HD/SD-SDI input & loop output
• HDMI 2.0 (4K60p) input & loop output
• 16-ch embedded audio meters with alert
• Select any 2 audio channels to output
• 9 steps quick zoom-in and mapping
• Focus assist with precision adjustment
• Build-in multi-camera logs to Rec.709
• User 3DLUT cube file import by USB
• On-screen TALLY display and GPI
• Zebra stripes, False color, R/G/B/Mono
• H/V delay, AFD, Timecode display
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• USB firmware upgrade

Specifications

LCD Performance

• Size: 7 inches
• Display Area: 151.2×94.5mm
• Resolution: 1920×1200
• Aspect Ratio: 16:9 (4:3 adjustable)
• Brightness: 400cd/m2
• Contrast: 1000:1
• Colour: 16.77 million colours
• Viewing Angle: Horizontal: 160°; Vertical: 160°

Input (Each LCD)

• BNC x 2 2K/3G/HD/SD-SDI input
• HDMI x 1, HDMI 2.0 input
• USB x 1 Firmware upgrade
• RS485 x 1, GPI (Tally) input

Output (Each LCD)

• BNC x 1 2K/3G/HD/SD-SDI loop output
• HDMI x 1, HDMI 2.0 loop output
• 3.5mm x 1, SDI, HDMI embedded audio output

Video Format

SDI

• SMPTE 2048-2: 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) 2048×1080i (60 / 59.94 / 50）
• SMPTE-425M: 1080p (60 / 59.94 / 50)
• SMPTE-274M: 1080i (60 / 59.94 / 50) 1080p (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-296M: 720p (60 / 59.94 / 50)
• SMPTE-125M: 480i (59.94)
• ITU-R BT.656: 576i (50)

HDMI

• 4096×2160p (60 / 50 / 30 / 25 / 24)
• 3840×2160p (60 / 50 / 30 / 25 / 24)
• 480i/ 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

• Working Voltage: DC / battery 6.5V-36V
• Power Consumption: 18-26W
• Working Temperature: -10°C～+50°C
• Working Humidity: 10%～90%
• Storage Temperature: -15°C～+60°C
• Storage Humidity: 10%～90%
• Dimensions: 485×130×82mm
• Net Weight (Main Body): 2.4kg

What's in the box

• SWIT M-1073H 2x7" Rackmount LCD Panel
• 1x AC-DC Adaptor
