Swit M-1093F 2x9" Rackmount IPS LCD Panel, Waveform

SWIT M-1093F 2x9" Rackmount IPS LCD Panel, Waveform

M 1093F M1093F M-1093F M/1093F

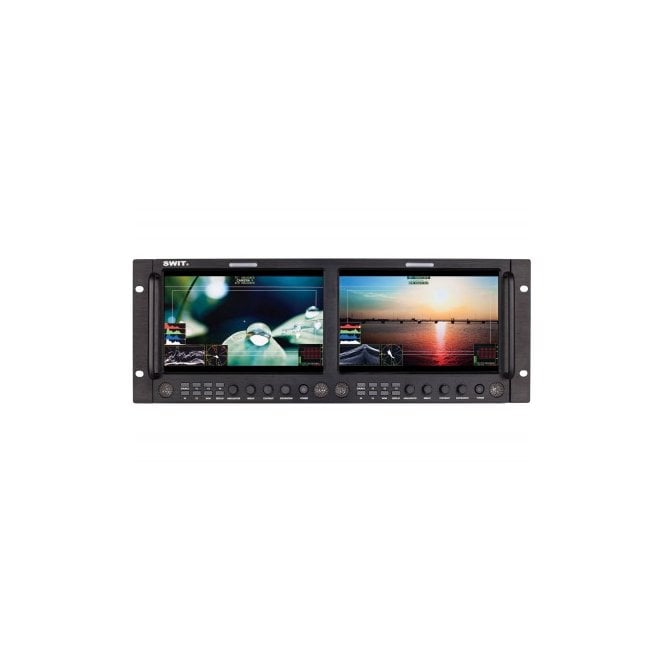

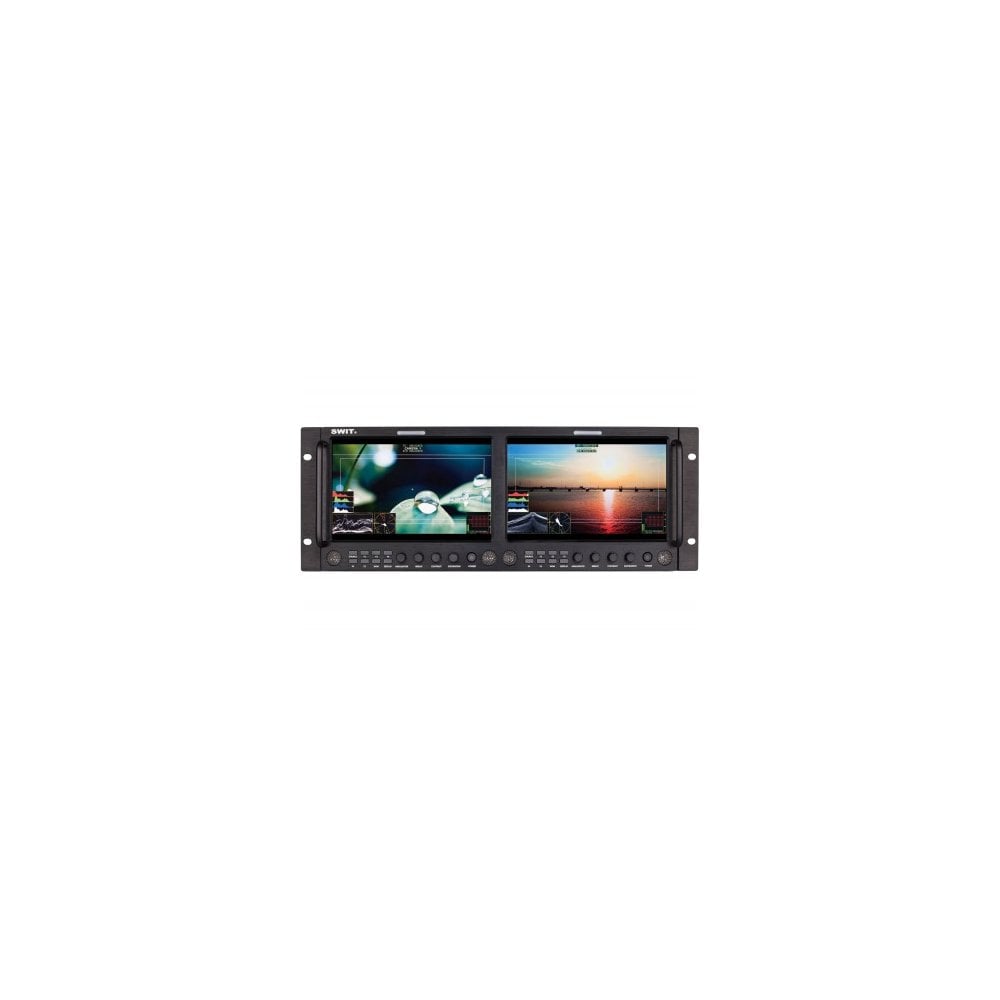

Dual 9-inch Full HD SDI/HDMI Waveform Rack LCD Monitor

The M-1093F adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°.

Input/ Output Interfaces - SDI / HDMI / CVBS / Analog Audio

Each LCD of M-1092H supports:

• 2K/3G/HD/SD-SDI input × 2
• 2K/3G/HD/SD-SDI loop output × 2
• HDMI 1.3 input × 1
• HDMI 1.3 loop output × 1
• CVBS input × 1
• CVBS loop output × 1
• 3.5mm analog audio input × 1
• 3.5mm analog audio output × 1

Video Analysis Assistant Pattern - Waveform / Vector scope / Histogram

M-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Colour, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, colour, and translucence. Embedded Audio Monitoring - Up to 16-ch meters with alert and select output

The M-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display - TSL 3.1 / 4.0 Protocol

The M-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

Peaking, R/G/B/Mono only, Zebra, False colour

Timecode, H/V delay, AFD, Scale Markers

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1093F monitor to upgrade, without PC connection.

3-colour TALLY Light - RJ45(RS485) input signal

There are front TALLY lights of Red, Green and Yellow colours on each screen, and users can define the pins of RJ45 port to control the TALLY lights.

Power Supply

The M-1093F provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

Installation

M-1093F is standard 19” rack mount fixing, occupies 4U height. The monitor is ±30° up and down rotatable when installed on racks.

Key Features:

• 1920×1200 resolution, 800:1 contrast
• 19-inch 4U rack mounting, ±30° rotatable
• 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
• 16-ch Embedded audio meters with alert
• Select any 2 audio channels to output
• Waveform Y/Cb/Cr/R/G/B and single line
• Vector scope, histogram R/G/B/Y
• AFD, H/V delay, R/G/B/Mono, False colour
• TSL UMD and text TALLY display
• Zebra stripes, Peaking focus assist
• SDI timecode display
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• TALLY light and GPI control
• USB firmware upgrade

Specifications

LCD Performance

• Size: 9 inches ×2
• Display area: 191.52×119.70mm
• Resolution: 1920×1200
• Aspect ratio: 16:9 (4:3 adjustable)
• Brightness: 450cd/m2
• Contrast: 800:1
• Colour: 16.77 million colours
• Viewing Angle: Horizontal: 170°; Vertical: 170°

Input (Each LCD)

• BNC ×2: 2K/3G/HD/SD-SDI input ×2
• BNC ×1: Composite input
• HDMI ×1: HDMI input
• 3.5mm ×1: Analog audio input

Output (Each LCD)

• BNC ×2, 2K/3G/HD/SD-SDI loop output
• BNC ×1, Composite loop output
• HDMI ×1, HDMI loop output
• 3.5mm ×1, SDI, HDMI, Analog audio output

Video Format

• CVBS: NTSC∕PAL

SDI:

• SMPTE 2048-2: 2011: 2048×1080p (23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60), 2048×1080i (50 / 59.94 / 60)
• SMPTE-425M: 1080p (60 / 59.94 / 50)
• SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-296M: 720p (60 / 59.94 / 50)
• SMPTE-125M: 480i (59.94)
• ITU-R BT.656: 576i (50)

HDMI

• 480i/ 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

• Working voltage: DC / battery 6.5V-24V
• Power consumption: ≤36W
• Working temperature: 0°C～+40°C
• Working humidity: 10%～90%
• Storage temperature: -15°C～+60°C
• Storage humidity: 10%～90%
• Dimensions: 484×177×112.8mm
• Net weight (w/o stand): 2.8kg

What's in the box

• Swit M-1093F Dual 9-inch FHD Waveform Rack LCD Monitor
• 1x 4-pin XLR power adaptor
• 2x LCD protective film
