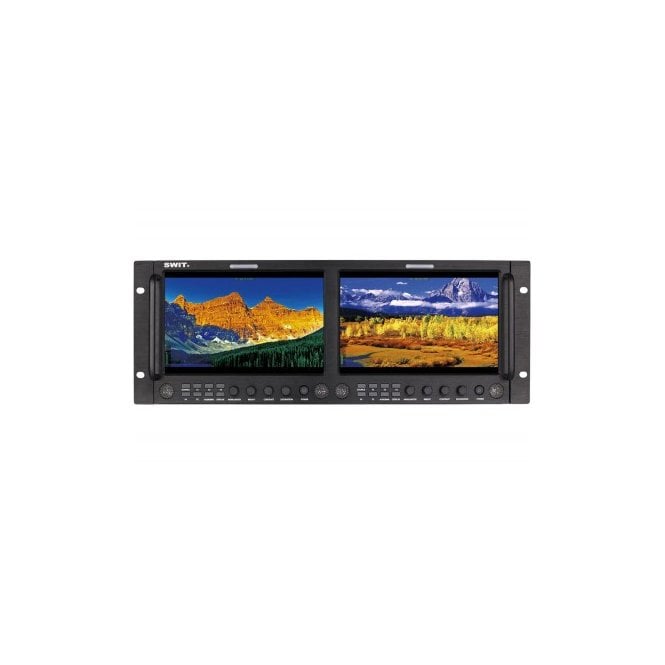

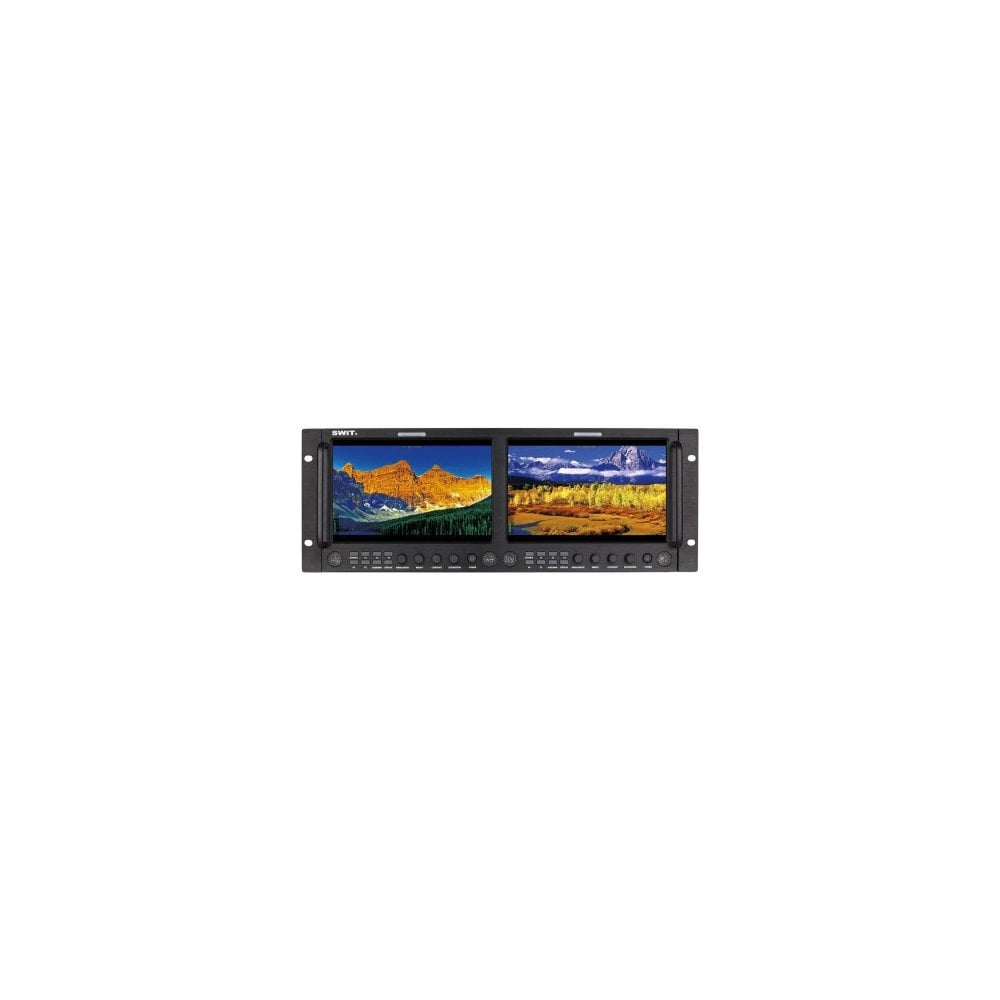

Swit M-1093H 2x9" Rackmount IPS LCD Panel

SWIT M-1093H 2x9" Rackmount IPS LCD Panel

M 1093H M1093H M-1093H M/1093H

IPS panel with LED backlight

Swit's M-1093H adopts 2× 9-inch IPS (In-Plane Switching) LCD panels, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

Input/Output Interfaces

SDI / HDMI / CVBS / Analog Audio Each LCD of M-1093H supports:

• 2K/3G/HD/SD-SDI input × 2
• 2K/3G/HD/SD-SDI loop output × 2
• HDMI 1.3 input × 1
• HDMI 1.3 loop output × 1
• CVBS input × 1
• CVBS loop output × 1
• 3.5mm analog audio input × 1
• 3.5mm analog audio output × 1

Embedded Audio Monitoring

2-ch meters with alert M-1093H supports SDI-2ch / HDMI-2ch embedded audio meters and Analog 2-ch audio meters display, with marks and audio abnormal alert info. The audio meter pattern position can be selected from one of four corners, and the scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display

TSL 3.1 / 4.0 Protocol M-1093H supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

Peaking, R/G/B/Mono only, Zebra, False colour

Timecode, H/V delay, AFD, Scale Markers

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into M-1093H monitor to upgrade, without PC connection.

3-colour TALLY Light

RJ45(RS485) input signal There are front TALLY lights of Red, Green and Yellow colours on each screen, and users can define the pins of RJ45 port to control the TALLY lights.

Power Supply:

M-1093H provides a 4-pin XLR socket of DC 6.5-24V power input, for the both 2 screens, and an AC-DC adaptor is attached on the rear panel of the monitor.

Installation:

M-1093H is standard 19” rack mount fixing, occupies 4U height. The monitor is ±30° up and down rotatable when installed on racks.

Key Features:

• 9-inch IPS LCD Panel ×2
• 1920×1200 resolution, 800:1 contrast
• 19-inch 4U rack mounting, ±30° rotatable
• 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
• 2-ch Embedded audio meters with alert
• AFD, H/V delay, R/G/B/Mono, False colour
• TSL UMD and text TALLY display
• Zebra stripes, Peaking focus assist
• SDI timecode display
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• TALLY light and GPI control
• USB firmware upgrade

Specifications

Input Supported formats

CVBS: PAL / NTSC

HDMI:

• 480i/ 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)

SDI

• SMPTE 2048-2: 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 2048×1080i (60 / 59.94 / 50)
• SMPTE-425M: 1080P (60 / 59.94 / 50)
• SMPTE-274: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-296M: 720p (60 / 59.94 / 50)
• SMPTE-125M: 480i (59.94)
• ITU-R BT.656: 576i (50)

What's in the box

• 1x AC-DC Adaptor
• SWIT M-1093H 2x9" Rackmount IPS LCD Panel
