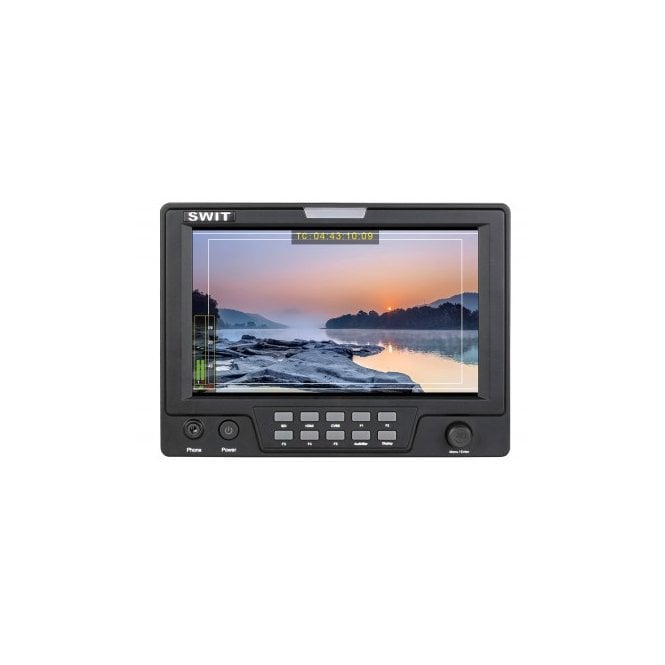

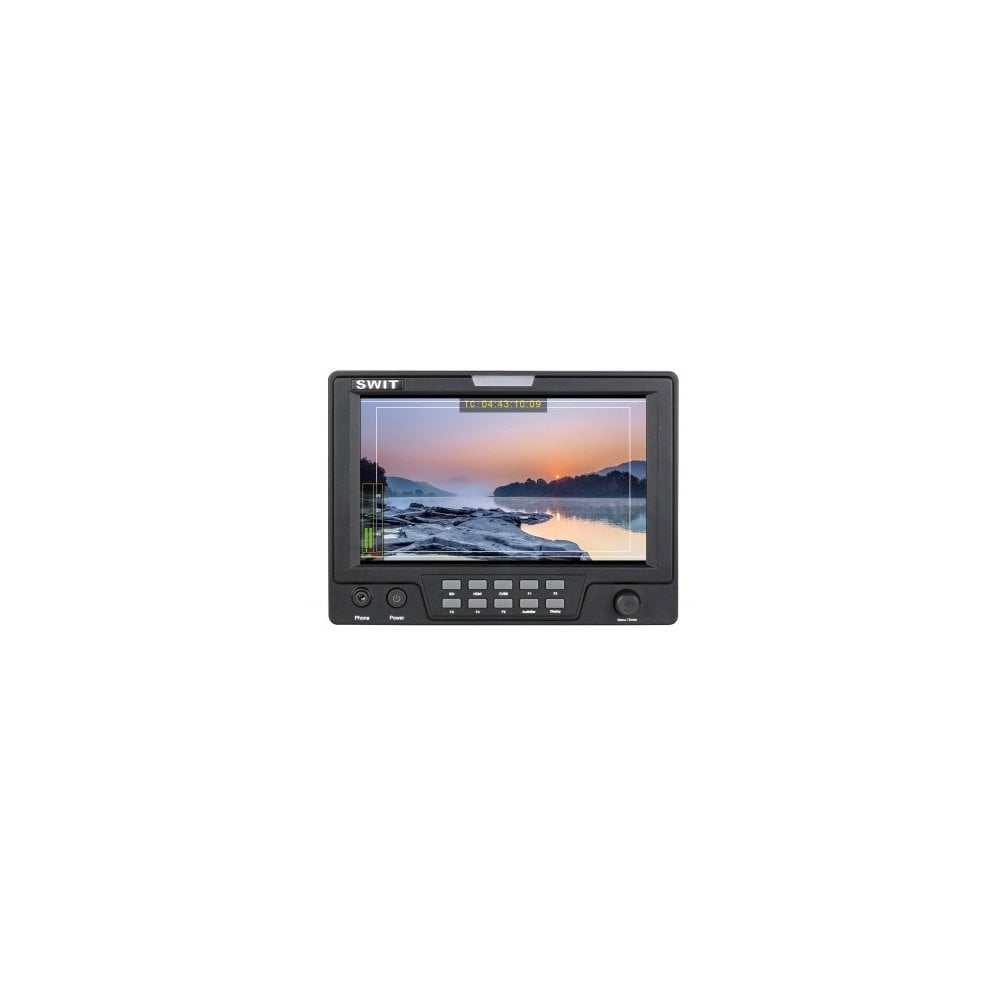

Swit S-1071HPlus 7inch Studio LCD Monitor

Swit S-1071HPlus (S/1071HPlus, S_1071HPlus, S1071HPlus, S 1071HPlus) 7inch Studio LCD Monitor

The S-1071H+ adopts a 7-inch FFS-IPS LCD panel, with 1024×600 high resolution and LED backlight, 900:1 contrast, 8-bit colour depth, and a H/V 160° viewing angle.

Input/Output Interfaces

SDI / HDMI / CVBS / Analog Audio

S-1071H+ monitor supports:

• 2K/3G/HD/SD-SDI input × 1
• 2K/3G/HD/SD-SDI loop output × 1
• HDMI input × 1
• HDMI loop output × 1
• CVBS input × 1
• CVBS loop output × 1
• RCA analog audio input L×1 R×1
• RS232 GPI/TALLY input × 1
• Embedded audio monitoring

2-ch meters with alert

The S-1071H+ supports SDI-2ch / HDMI-2ch embedded audio meters and Analog 2-ch audio meters display, with marks and audio abnormal alert info. The audio meter pattern position can be selected from one of four corners, and the scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display

TSL 3.1 / 4.0 Protocol

S-1071H+ supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

USB Firmware Upgrade

The monitor provides a standard USB port on the rear panel, for firmware upgrade. Users can download the latest firmware file to a USB stick, and directly insert into S-1071H+ monitor to upgrade, without PC connection.

Front & Rear TALLY Light

There are front and rear TALLY lights of Red, Green and Yellow colors, and users can define the pins of RS232 port to control the TALLY lights.

Multiple Power Sources

The monitor provides a 4-pin XLR socket of DC 6.5-17V power input, and can be fixed on V-mount, Gold mount or DV battery plate. Various types of DV battery plates are provided for optional, with snap-on designed, quick released and interchangeable with each other.

Plate Compatible batteries

• S-7004A
• Gold mount batteries
• S-7004S
• V-mount batteries
• S-7004F
• SONY NP-F970/770
• S-7004U
• SONY BP-U60/U30
• S-7004D
• Panasonic D54/D28
• Panasonic VW-VBD58, AG-VBR59
• S-7004B
• Panasonic VW-VBG6
• S-7004V
• JVC BN-VF823
• S-7004I
• SSL-JVC50
• S-7004C
• Canon BP-945/970G
• S-7004E
• Canon LP-E6

Sun Hood

For outdoor using, you can apply a sun hood on the monitor. The sun hood can be easily installed via the left and right screw threads, or directly by Velcro tapes.

The sun hood is provided in the monitor package.

 Key Features:

• 7” FFS-IPS LCD, 1024×600, H/V 160°viewing
• 2K/3G/HD/SD-SDI, HDMI, CVBS monitoring
• 2-ch Embedded audio meters with alert
• AFD, H/V delay, R/G/B/Mono, False colour
• TSL UMD and text TALLY display
• Zebra stripes, Peaking focus assist
• SDI timecode display
• Marker 4:3, 13:9, 14:9, 15:9, 1.85:1, 2.35:1
• Front / Rear TALLY light and GPI control
• V-mount, Gold mount or snap-on DV mount
• USB firmware upgrade

LCD Performance

• Size: 7 inches
• Display area: 153.6×90mm
• Resolution: 1024×600
• Aspect ratio: 16:9 (4:3 adjustable)
• Brightness: 400nit
• Contrast: 900:1
• Colour: 16.77 million colours
• Viewing angle
• Horizontal: 160°; Vertical: 160°

Input

• BNC ×1
• 2K/3G/HD/SD-SDI input
• BNC ×1
• Composite input
• HDMI ×1
• HDMI input
• RCA ×2
• Analog audio input L ×1 R×1
• Output
• BNC ×1
• 2K/3G/HD/SD-SDI loop output
• BNC ×1
• Composite loop output
• HDMI ×1
• HDMI loop output
• 3.5mm ×1
• SDI, HDMI, Analog audio output

Video Format

SDI

• 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 2048×1080i (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50)
• 1080i (60 / 59.94 / 50)
• 1080p (30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94)
• 576i (50)

HDMI

• 480i/ 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)

CVBS

PAL / NTSC

General

• Input voltage: DC / battery 6.5V-17V
• Power consumption: ≤10W
• Working temperature: 0°C～+40°C
• Working humidity: 10%～90%
• Storage temperature: -15°C～+60°C
• Storage humidity: 10%～90%
• Dimensions: 192×139×47mm
• Net weight (main body): 550g

In The Box

• 1x SWIT S-1071HPlus 7" Studio LCD, no plate
