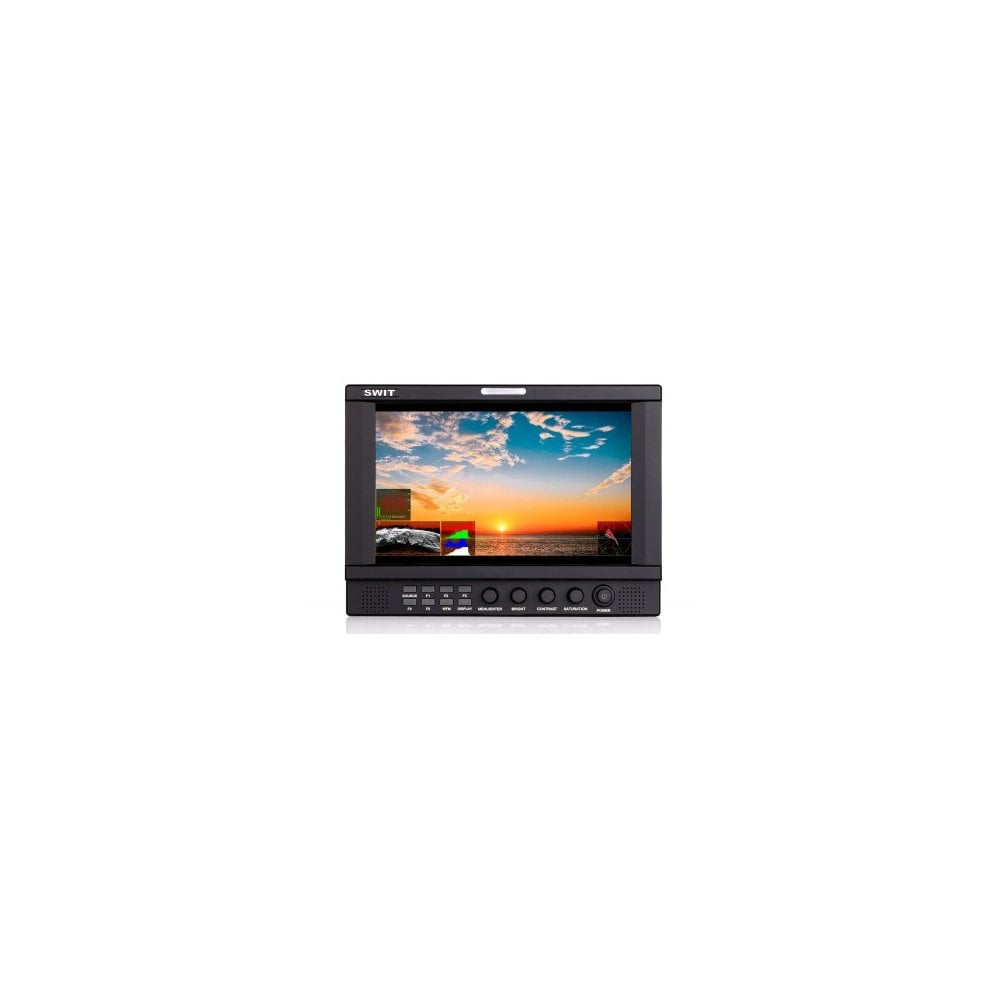

Swit S-1093F 9-inch On camera LCD monitor, no plate

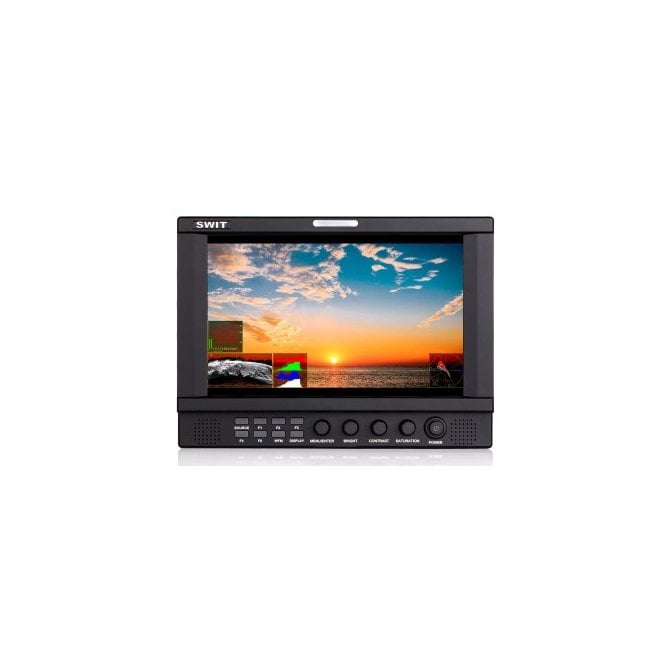

SWIT S-1093F 9-inch On camera LCD monitor, no plate

S 1093F S1093F S-1093F S/1093F

9-inch Full HD LCD

IPS panel with LED backlight

The S-1093F adopts a 9-inch IPS (In-Plane Switching) LCD panel, with Full HD 1920×1200 resolution and LED backlight, 800:1 contrast. The viewing angle is Horizontal: 170° / Vertical: 170°

LCD Protective Glass

The LCD of S-1093F is overlaid with a glass, protects the screen against scratch or broken.

Input/Output Interfaces, SDI / HDMI / CVBS / Analog Audio

S-1093F monitor supports:

• 2K/3G/HD/SD-SDI input × 2
• 2K/3G/HD/SD-SDI loop output × 2
• HDMI input × 1
• HDMI loop output × 1
• CVBS input × 1
• CVBS loop output × 1
• 3.5mm analog audio input × 1
• 3.5mm analog audio output × 1

Video Analysis Assistant Pattern, Waveform / Vector scope / Histogram

S-1093F supports video analysis assistant patterns includes: Waveform (Y/Pb/Pr/R/G/B), Vector scope, Histogram (R/G/B/Y), to convert the digital video quality info (Luma, Colour, Saturation, etc) to patterns, and the patterns can be switched on/off individually, select display position (Up/Down/Left/Right), size, colour, and translucence.

Embedded audio monitoring Up to 16-ch meters with alert and select output

S-1093F supports SDI-16ch and HDMI-8ch embedded audio meters display, with marks and audio abnormal alert info. Users can also select any 2 channels audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only 2 channels, 8 channels, and full 16 channels. Also scale markers, alert info, and translucent of the audio meter pattern are selectable.

UMD and Text-Tally Display, TSL 3.1 / 4.0 Protocol

S-1093F supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and Max 8 letters displayed. The UMD/TALLY signal inputs via RJ45(RS485) port on the rear panel of the monitor.

Specifications

LCD Performance

• Size: 9 inches
• Display area: 191.52×119.70mm
• Resolution: 1920×1200
• Aspect ratio: 16:9 (4:3 adjustable)
• Brightness: 450cd/m2
• Contrast: 800:1
• Colour: 16.77 million colours
• Viewing angle: Horizontal: 170°Vertical: 170°

Input

• BNC ×2 2K/3G/HD/SD-SDI input ×2
• BNC ×1 Composite input
• HDMI ×1 HDMI input
• 3.5mm ×1 Analog audio input

Output

• BNC ×2 2K/3G/HD/SD-SDI loop output ×2
• BNC ×1 Composite loop output
• HDMI ×1 HDMI loop output
• 3.5mm ×1, SDI, HDMI, Analogue audio output

Video Format

CVBS

SDI:

• SMPTE ST 2048-1: 2011
• SMPTE-425M
• SMPTE-274M
• SMPTE-RP211
• SMPTE-296M
• SMPTE-125M
• ITU-R BT.656

NTSC∕PAL:

• 2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080p (60 / 59.94 / 50)
• 1080i (60 / 59.94 / 50)
• 1080p (30 / 29.97 / 25 / 24 / 23.98)
• 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• 720p (60 / 59.94 / 50)
• 480i (59.94)
• 576i (50)

HDMI:

• 480i/ 576i / 480p / 576p
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

General

• Working voltage: DC / battery 6.5V-24V
• Power consumption: ≤18W
• Working temperature: 0°C～+40°C
• Working humidity: 10%～90%
• Storage temperature: -15°C～+60°C
• Storage humidity: 10%～90%
• Dimensions: 241×178×52mm
• Net weight (main body): 960g

What's in the box

• 1x  Monitor
• 1 x Cold shoe / Screw Articulating Arm trestle
• 1 x Sun hood
• 1 x 4-pin XLR power adaptor (A-PA03)
