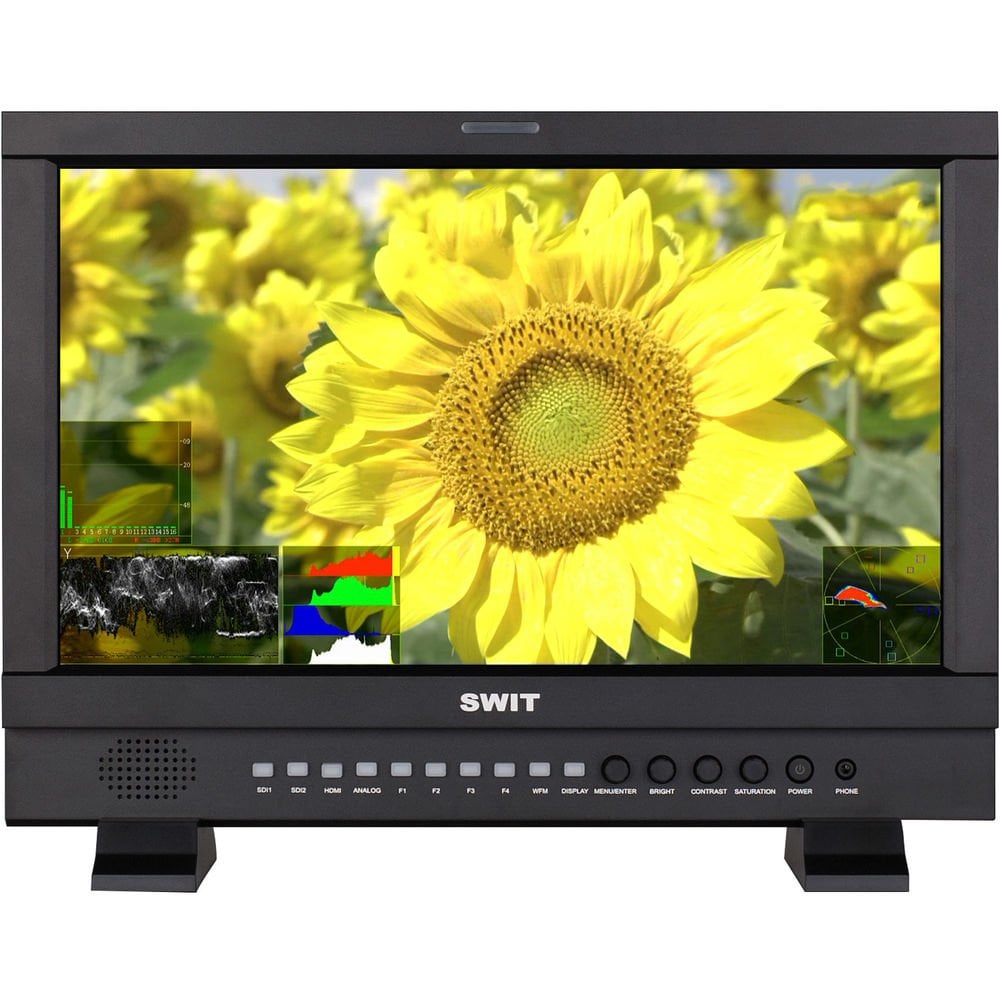

The 17.3" Full HD Waveform Studio LCD Monitor with V-mount battery plate from SWIT offers a 17.3" IPS (In-Plane Switching) LCD panel and Full HD resolution. It also features a horizontal and vertical viewing angle of 160°, an LED backlight, and a 700:1 contrast ratio for accurate colour reproduction. It also supports video analysis assistant patterns that include waveform (Y/Pb/Pr/R/G/B), vector scope, histogram (R/G/B/Y) to convert the digital video quality info (luma, colour, saturation, etc) to patterns (which can be switched on/off individually), and you can select display position (up/down/left/right), size, colour, and translucence.

The LCD also supports SDI 16-channel and HDMI 8-channel embedded audio meter displays with marks and abnormal audio alert info. Users can also select any two channels of audio to output via the 3.5 mm socket or through the speakers. The audio meter pattern position can be selected from up/down/left/right, and you can choose to display only two channels, eight channels, or the full sixteen channels. It features a UMD and text tally display using the TSL 3.1/4.0 protocol with 1-126 TSL address selection and a maximum of eight letters displayed. The UMD inputs via RS-485 or RS-232C port and outputs via RS-485 port.

The LCD provides a standard USB port for firmware upgrades. Users can download the latest firmware file to a USB stick and directly insert it into the S-1173FS monitor to upgrade, without a PC connection. It has a 4-pin XLR jack rated for 11-17 VDC, and includes a V-mount battery plate for outdoor use. There are red, green and yellow colours for the Tally light.

• 17.3" LCD panel, 1920 x 1080 resolution
• 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
• Y/Pb/Pr, VGA, CVBS monitoring
• 16-channel embedded audio meters with alerts
• Select any two audio channels to output
• Supports video analysis assistant patterns such as waveform Y/Cb/Cr/R/G/B and single line, vector scope, & histogram R/G/B/Y
• Peaking focus assist (red/blue switch)
• AFD, timecode, H/V delay
• TSL UMD and text Tally display
• Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
• False colour, R/G/B/Mono, zebra stripes, internal colour bar
• V-mount battery plate
• 19" rack install, 7U height
• USB firmware upgrade

Specifications

Performance

• Size : 17.3" / 43.9 cm
• Display Area : 381.89 x 214.8 mm
• Resolution : 1920 x 1080
• Aspect Ratio : 16:9 (4:3 adjustable)
• Brightness : 300 cd/m2
• Contrast : 700:1
• Colour : 16.77 million colours
• Viewing Angle : Horizontal: 160°
• Vertical : 160°

Input / Output

• Input : 2 x BNC: 2K/3G/HD/SD-SDI input
• 1 x BNC : CVBS input
• 3 x BNC : Y/Pb/Pr input
• 1 x HDMI : HDMI input
• 2 x RS-485 : 1 x GPI, 1 x UMD
• 1 x RS-232C : UMD
• 1 x VGA : VGA input
• 2 x 3.5 mm RCA : L/R audio input
• 1 x USB input (firmware upgrade)

Output :

• 2 x BNC: 2K/3G/HD/SD-SDI loop output
• 1 x BNC : CVBS Loop output
• 1 x HDMI : HDMI loop output
• 1 x RS-485 : UMD
• 1 x 3.5 mm : SDI, HDMI, embedded audio output, analog audio output

Video Formats Supported

• CVBS NTSC/PAL
• SDI SMPTE 2048-1:2011
• 2048 x 1080p: 60/59.94/50/30/29.97/25/24/23.98

SMPTE-425M:

• 1080p: 60/59.94/50

SMPTE-274M:

• 1080i: 60/59.94/50
• 1080p: 30/29.97/25/24/23.98

SMPTE-RP211:

• 1080psf: 30/29.97/25/24/23.98

SMPTE-296M:

• 720p: 60/59.94/50

SMPTE-125M:

• 480i: 59.94

ITU-R BT.656:

• 576i: 50
• HDMI 480i / 576i / 480p / 576p
• 1080i: 60 / 59.94 / 50
• 720p: 60 / 59.94 / 50
• 1080p: 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98
• Component (Y/Pb/Pr) 480i / 576i / 480p / 576p
• 720p: 50/60
• 1080i: 50/60
• 1080p: 50/60
• VGA 640 x 480 / 800 x 600/ 1024 x 768 / 1152 x 864 / 1280 x 768

General

• Working Voltage : 100 to 240 VAC
• DC: 11 to 17 V
• Power Consumption : 22 W
• Working Temperature : 32 to 104°F / 0 to 40°C
• Humidity : 10 to 90%
• Storage Temperature : 5 to 150°F / -15 to 60°C
• Storage Humidity : 10 to 90%
• Dimensions : 17.0 x 12.2 x 2.8" / 430 x 310 x 73 mm
• Weight : 10.3 lb / 4.65 kg

What's in the box

• SWIT 17.3" Full HD Waveform Studio LCD Monitor (V-Mount)
• 2 x Desktop Stand Feet
• V-Mount Battery Plate
• AC-DC Power Adapter
• 19-Inch Rack Mount Bracket
