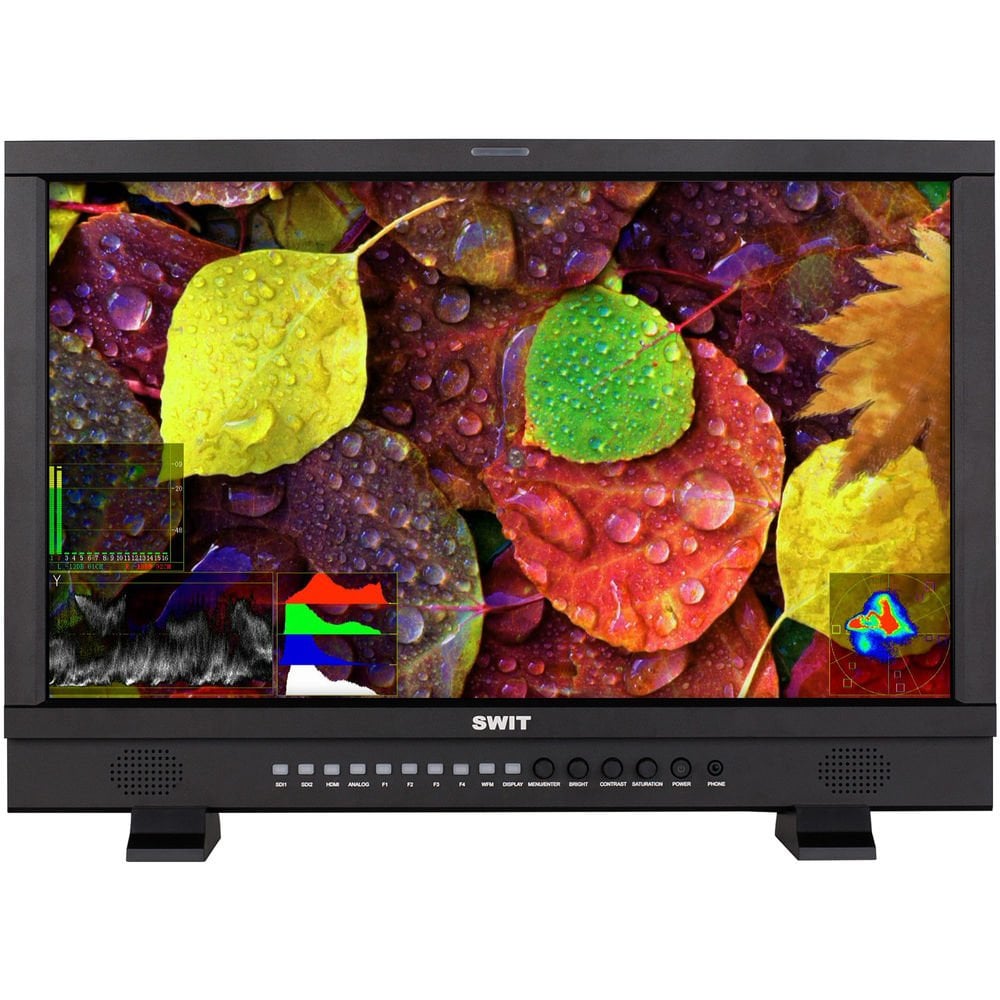

Swit S-1243FS 23.8" FHD Studio Monitor with full professional functions

SWIT S-1243FS | 23.8" FHD Studio Monitor with full professional functions

S 1243FS S1243FS S-1243FS S/1243FS

23.8" Studio Monitor with full professional functions, 3G SDI/HDMI, 1920*1080,including desktop stand, TSL UMD

The S-1243F Waveform Studio LCD Monitor from SWIT adopts a 23.8? LCD panel to produce 3G/SDI/HDMI video in Full HD 1920 x 1080 resolution. It provides a 1000:1 contrast for accurate colour reproduction and comes with a V-Mount battery plate. With four corners and a large centre positioning, the monitor allows for adjusted translucence for waveform and vector scope/histogram.

• 23.8" LCD panel
• 1920 x 1080 resolution
• 2 x 2K/3G/HD/SD-SDI, HDMI monitoring
• Y/Pb/Pr, VGA, CVBS monitoring
• Chart positioning / Translucence adjustment
• Four corners and large centre, with adjusted translucence for waveform and vector scope/histogram
• 16-channel embedded audio meters with alert
• SDI: 16-channel / HDMI: 8-channel
• 2 selectable audio channels to output
• Peaking focus assist (red/blue switch)
• Active Format Description (AFD)
• Timecode, H/V delay
• TSL UMD and text TALLY display
• Safety marker 4:3/13:9/14:9/15:9/1.85:1/2.35:1
• False colour with colour chart
• R/G/B/mono colour modes
• Over exposure zebra stripes
• Internal colour bar
• V-Mount battery plate optional
• USB firmware upgrade

Specifications

• Signal System NTSC/PAL
• Monitor Type LCD
• Screen Size 23.8" (60.5 cm)
• Resolution 1920 x 1080
• Display Area 19 x 11" (53 x 30 cm)
• Display Colours 16.77 million colours
• Aspect Ratio 16:9 / 4:3
• Viewing Angle H/V: 178°/ 178°
• Brightness 300 cd/m2
• Contrast Ratio 1000:1
• Inputs BNC: 2 x 2K/3G/HD/SD-SDI input, CVBS input, Y/Pb/Pr input
• 1 x HDMI
• RS-485: 1 x GPI, 1 x UMD
• 1 x USB
• 1 x VGA
• 1 x RS-232C (UMD)
• RCA: 2 x L/R audio input
• Output BNC: 2K/3G/HD/SD-SDI Loop output, CVBS loop output
• 1 x HDMI loop output
• 1 x RS-485 (UMD)
• 1 x 3.5 mm SDI/HDMI embedded audio output, analog audio output
• Video Formats SDI:
• SMPTE 2048-2: 2048 x 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98), 2048 × 1080i (60 / 59.94 / 50)
• SMPTE-425M: 1080p (60 / 59.94 / 50)
• SMPTE-274M: 1080i (60 / 59.94 / 50), 1080p (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-RP211: 1080psf (30 / 29.97 / 25 / 24 / 23.98)
• SMPTE-296M: 720p (60 / 59.94 / 50)
• SMPTE-125M: 480i (59.94)
• ITU-R BT.656: 576i (50)
•

• HDMI:
• 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
• 1080i (60 / 59.94 / 50)
• 720p (60 / 59.94 / 50)
• 576p / 576i / 480p / 480i
•

• Y/Pb/Pr: 1080p (50/60), 1080i (50/60), 720p (50/60), 576p / 576i / 480p / 480i
•

• VGA: 1600 x 1200 / 1280 x 1024 / 1280 x 960 / 1280 x 768 / 1152 x 864 / 1024 x 768 / 800 x 600 / 640 x 480
• Temperature Working: 32 to 104°F (0 to +40°C)
• Storage: 5 to 140°F (-15 to +60°C)
• Humidity 10 to 90%
• Power Requirements 100 to 240 VAC, 11 to 17 VDC
• Power Consumption =36 W
• Dimensions 23 x 15 x 3.4" (58 x 38 x 8.7 cm)
• Weight 16 lb (7.2 kg)

What's in the box

• SWIT S-1243FS 23.8" FHD Studio Monitor with full professional functions
