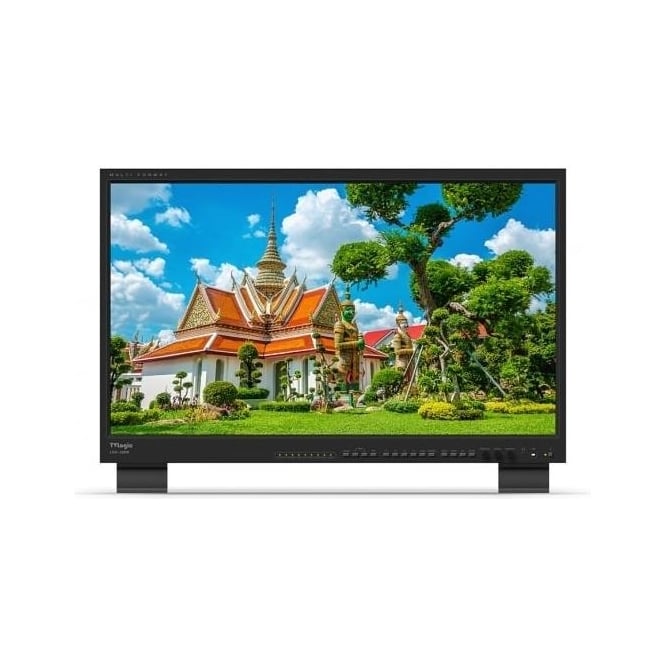

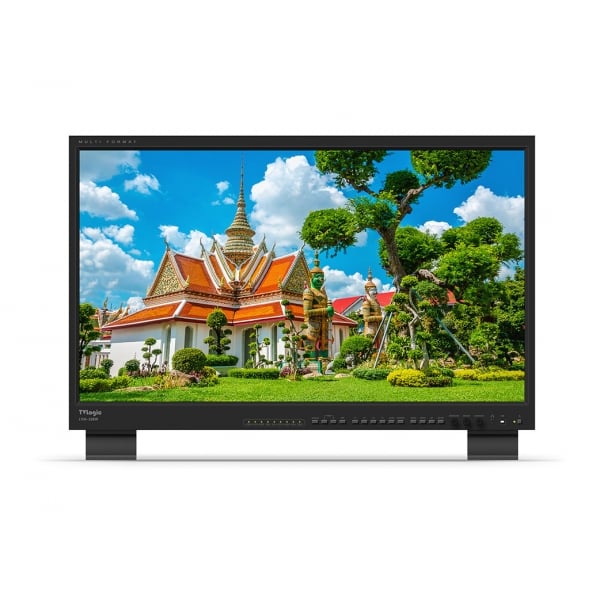

TV Logic 32 1920 x 1080 Native HD LCD

TV-Logic LVM-328W (LVM/328W, LVM 328W, LVM328W, lvm-328w) 32 1920 x 1080 Native HD LCD

The LVM-328W is a 32-inch 1920x1080 resolution broadcast QC-grade monitor. A new white LED backlight unit improves power consumption, color purity, and contrast ratio. The LVM-328W has a new, thinner bezel width to improve edge-to-edge viewing and features 12-bit video processing and a multiple image-measurement tools.

Display Spec.

• Size : 31.5"
• Resolution : 1920 X 1080 (16 : 9)
• Pixel Pitch : 0.364mm
• Color Depth : 16.7M
• Viewing Angle : 178°(H) / 178°(V)
• Luminance : 350cd/m2
• Contrast Ratio : 1200 : 1
• Display Area : 698(H) x 392(V) mm

Input

• 3 X BNC : Analog Input (Component)
• 2 X BNC : 3G-SDI A/B Channel Input
• 1 X HDMI : HDMI Input
• 1 X DVI : DVI Input

Output

• 3 X BNC : Analog Output (Component)
• 4 X BNC : 3G-SDI Output

Audio

• Audio In : Embedded Audio/Analog Stereo (Phone Jack)
• Audio Out : Analog Stereo (Phone Jack)

FPGA Functions

1:1 Pixel Mapping Modes for SD/HD, Blue Only, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Waveform/Vector

Closed Caption

• CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47

Calibration

• TVLogic Color Calibration Utility

Other Functions

• REMOTE : GPI (RJ45)
• REMOTE : TVLogic’s specification
• USB : Firmware update by USB cable
• Ethernet : Ethernet Control support
• Conversion : SDI-to-SDI,

Options

• Carrying Case
