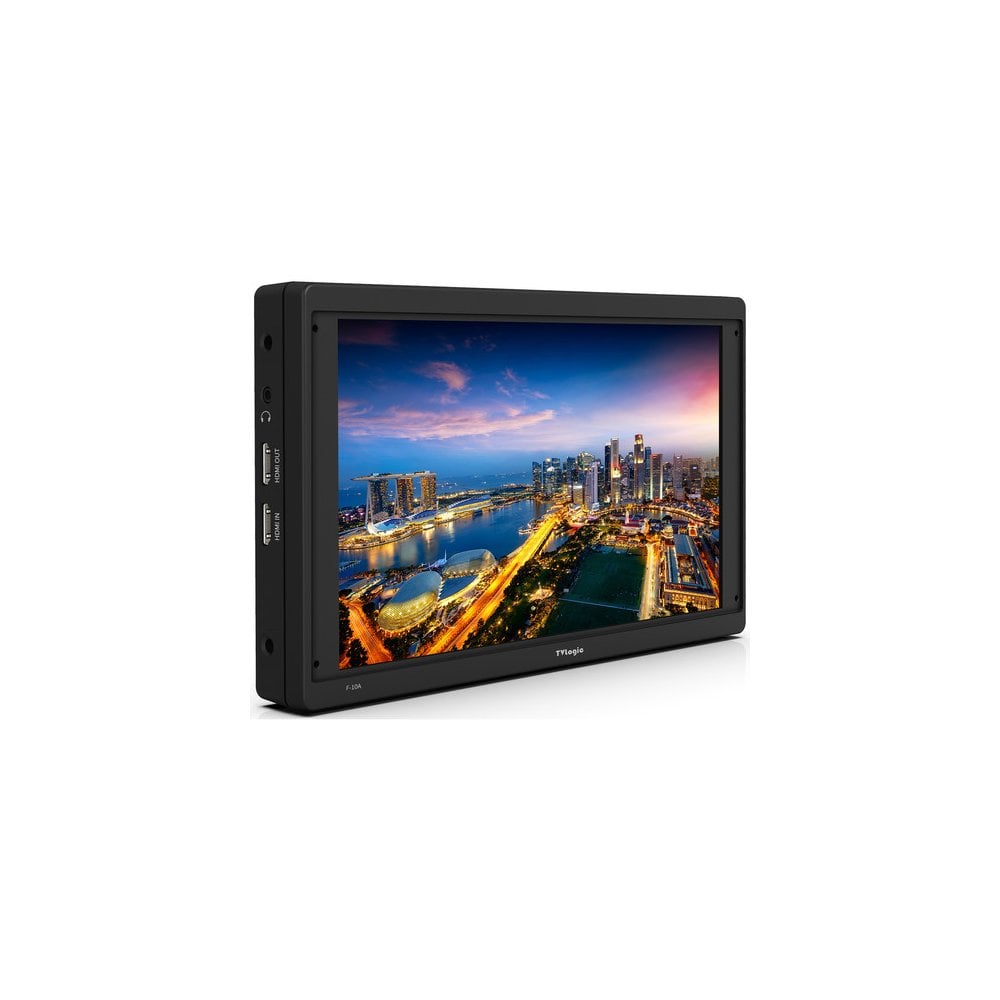

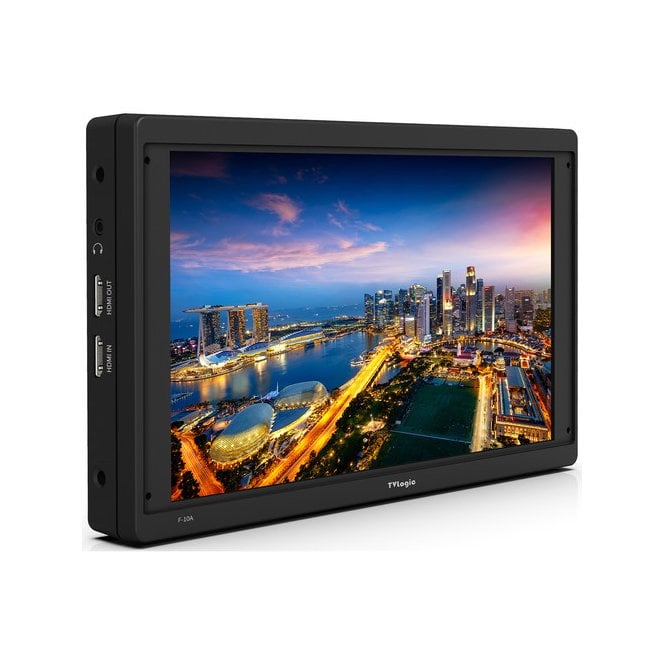

TV Logic F-10A 10 Inch Full HD HDMI/SDI HDR Field Monitor

TV-Logic F-10A (F_10A, F/10A, F 10A) 10 Inch Full HD HDMI/SDI HDR Field Monitor

The F-10A is the new 10" field monitor with HDR capability and Full HD resolution. Designed for versatile field production applications, the F-10A offers nearly half the weight and slimmer design compared to its class size. It also supports HDMI 2.0 and HDCP 2.2 to support 4K HDR 60Hz and supports various video signals (3G HD/SD-SDI, HDMI). In addition, it provides various professional functions such as HDMI ↔ SDI conversion output, Camera LUTs, Arri Metadata Display, Waveform/Vectorscope, H/V Flip, Auto Flip, Scan and Image Overlay.

10-inch Full HD Display – A lot more functions in bigger screen!

F-10A features a large 10-inch full HD (1920 x 1080) display, while remaining powerful and light enough to take anywhere.

HDMI 2.0 and HDCP 2.2 4K HDR Monitoring

F-10A can display the 4K HDR 60Hz video so that you can see true-to-life colour and clear details.

Display

• Size: 10-inch
• Resolution: 1920 x 1080 (16:9)
• Pixel Pitch: 0.11475mm
• Colour Depth: 16.7m
• Viewing Angle: 160°(H) / 160°(V)
• Luminance: 300cd/m2
• Contrast Ratio: 1,000:1
• Display Area (H x V): 220.32 x 123.93mm

Inputs

• 2x BNC: 3G-SDI A/B Channel Input
• 1x HDMI: HDMI Input

Outputs

• 2x BNC: 3G-SDI Output
• 1x HDMI: HDMI Output

Audio

• Audio In: Embedded Audio/Analog Stereo (Phone Jack)
• FPGA Functions: 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom, Camera Lut
• Calibration: TVLogic Colour Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other functions

• Remote: GPI (RJ45)
• USB: Firmware update by USB memory stick
• Ethernet: Ethernet Control support
• Conversion: HDMI-to-HDMI, HDMI-to-SDI, SDI-to-HDMI, SDI-to-SDI

Dimensions

• Main body (L x H x W): 258 x 154 x 29.8mm / 10.15 x 6.06 x 1.17in
• Weight: 1.3kg / 2.86lbs

In the box

• 1x F-10A Monitor
