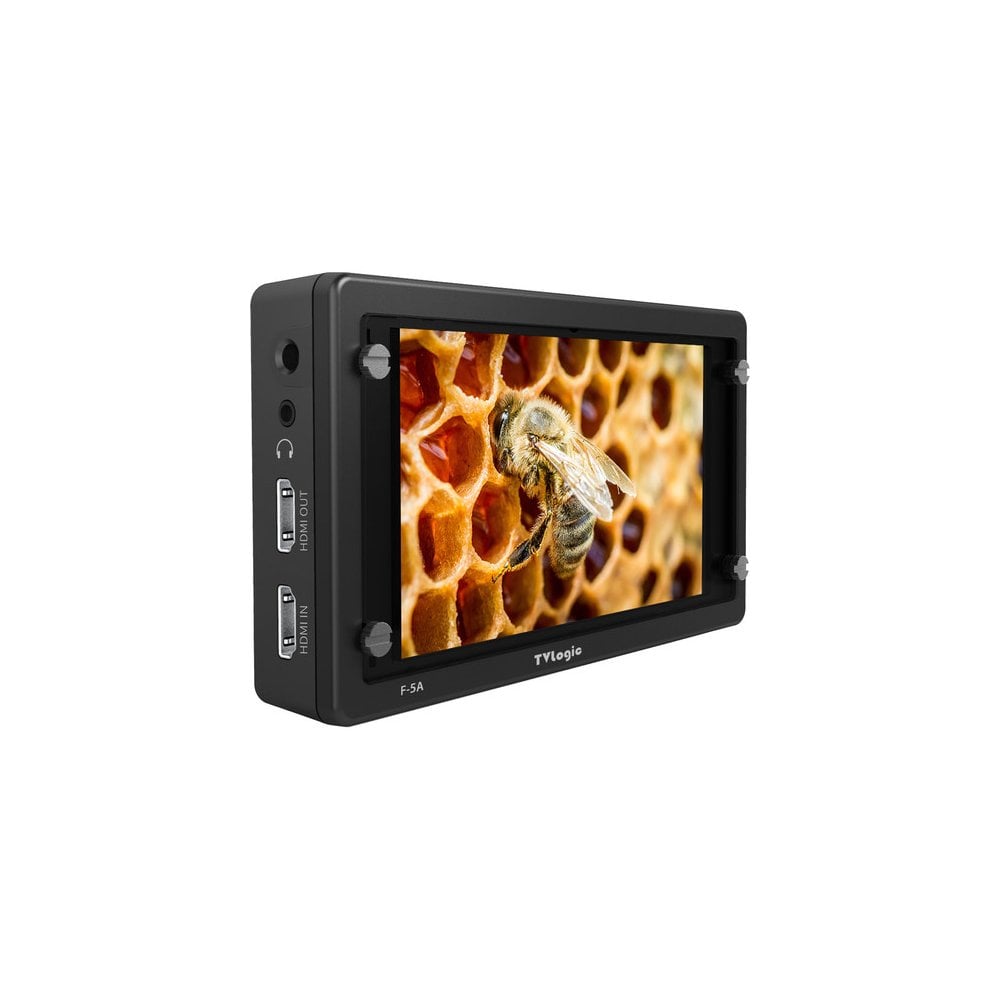

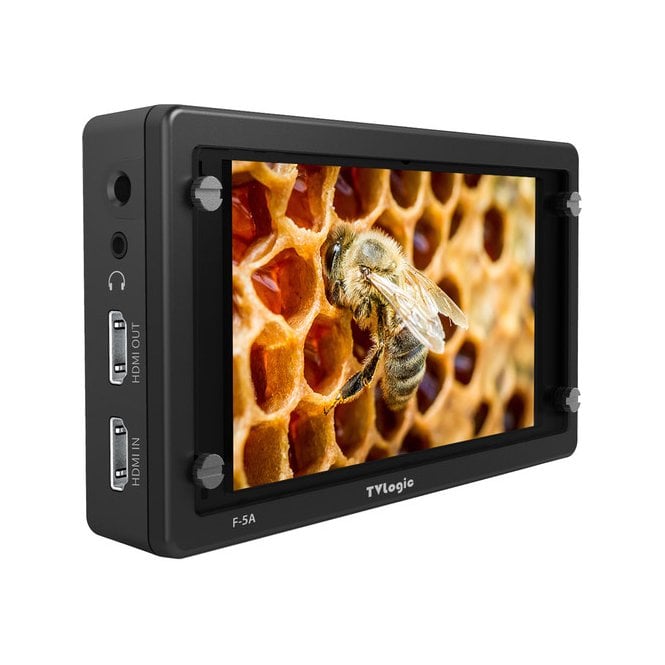

TV Logic F-5A 5.5 inch IPS On-Camera Monitor with L-Series Type Plate

TV-Logic F-5A (F_5A, F/5A, F 5A) 5.5 inch IPS On-Camera Monitor with L-Series Type Plate

TVLogic's F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate offers cinematic image quality in a sleek, compact form suitable for use as an EVF or onboard camera monitor. This monitor features a 1080p Full HD IPS display with 160° viewing angle and a contrast ratio of 1000:1. Monitoring functions include waveform, vectorscope, and 16-channel audio level meter displays. The versatile F-5A monitor has both 3G-SDI and HDMI inputs and outputs, enabling HDMI-to-SDI and SDI-to-HDMI conversion.

The monitor supports horizontal/vertical image flip, timecode display, image zoom, auto/manual aspect ratio selection, and blue/mono-only modes. The monitor supports ARRI camera metadata as well as HDR emulation of PQ, HLG, and SLog3. Pro-style focus assist functions like peaking boost help your assistant keep your image sharp. Power the F-5A using a separately available battery and either the integrated Sony L-series type battery plate, the included D-Tap cable, or via a separately available AC power supply. Tally is supported by the connector on the back of the monitor.

Display

• Panel Type: IPS-Type LCD
• Display Size: 5.5" / 14.0 cm
• Active Area: 4.83 x 2.72" / 122.7 x 69 mm
• Screen Resolution: 1920 x 1080
• Aspect Ratio: 16:9
• Viewing Angle: Horizontal: 160°, Vertical: 160°
• Touchscreen: No
• Maximum Brightness: 500 cd/m2
• Contrast Ratio: 1000:1
• Dot Pitch: 0.0213 x 0.063 mm
• Bit Depth / Color Support: 8-Bit (16.7 Million Colors)
• Real-Time LUT Monitoring: SDR
• Image Controls: Blue Only, False Color, Focus Peaking, H/V Delay, Image Flip, Screen Markers, Underscan, Vectorscope, Waveform, Zebra

I/O

• Video: 1 x BNC (3G-SDI) Input, 1 x HDMI Type A Input, 1 x BNC (3G-SDI) Output, 1 x HDMI Type A Output
• Embedded Audio: HDMI, SDI
• Audio: 1 x 3.5 mm Headphone Output
• Built-In Speaker: 1
• Power: 1 x Barrel Input
• Other I/O: None
• Card Slot: None

Power

• DC Input Power: 12 to 34 VDC at 0.65 A
• Battery Type: 1 x L-Series
• Power Consumption: 10 W

Environmental

• Operating Temperature: 32 to 113°F / 0 to 45°C
• Storage Temperature: -4 to 140°F / -20 to 60°C

General

• Material of Construction: Aluminum
• Dimensions (W x H x D): 6.4 x 3.62 x 1.09" / 162.5 x 92 x 27.6 mm
• Weight: 14.8 oz / 420 g

In the box

• TVLogic F-5A 5.5" IPS On-Camera Monitor with L-Series Type Plate
• D-Tap Cable
• L-Shaped BNC Adapter
• Screen Protector
• Camera Support
