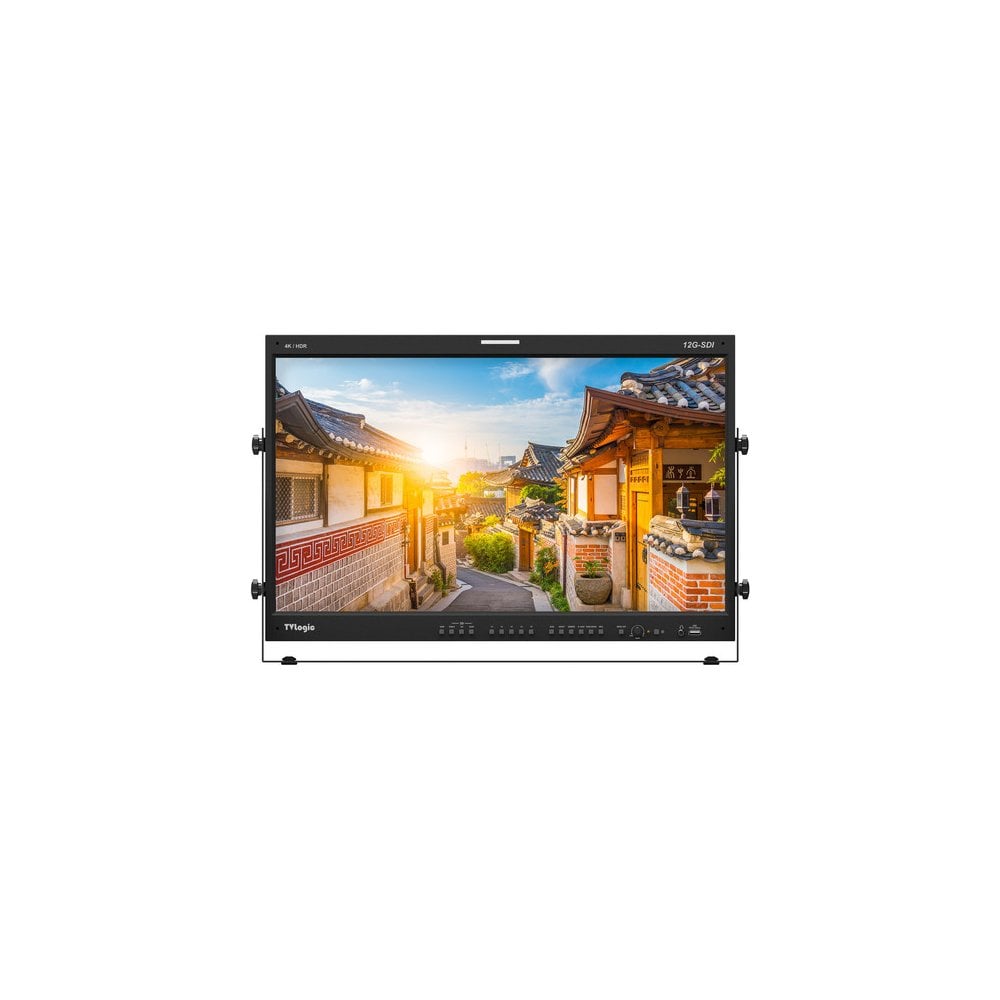

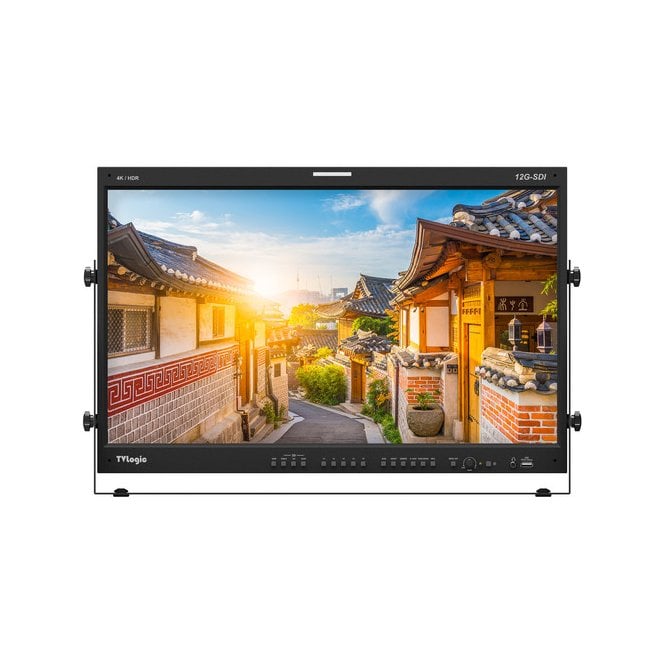

TV Logic LUM-242G 24-inch 4K/UHD HDR Emulation Monitor

TV-Logic LUM-242G (LUM_242G, LUM/242G, LUM 242G) 24-inch 4K/UHD HDR Emulation Monitor

The LUM-242G is a 24-inch UHD resolution (3840 x 2160) monitor with maximum luminance of 500nit, contrast ratio of 1,200:1, wide colour gamut and wide viewing angle. Equipped with 4 BNCs (2x12G-SDI + 2x3G-SDI) and HDMI 2.0 interface, it supports various video formats up to 4K/60p through single-link 12G-SDI, Quad 3G-SDI and HDMI 2.0. In addition to various professional features such as Waveform monitor and Vectorscope, the LUM-242G provides HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

Powerful Picture Quality

LUM-242G supports HDR EOTFs of PQ, HLG and SLog3 and with 98% DCI-P3 coverage and true UHD resolution, LUM-242G reproduces true-to-life picture quality.

Fast Colour Standard Switching Speed 1 Sec

Switching speed had improve from 5 seconds to 1 second when changing colour values.

Display

• Size: 24"
• Resolution: 3840 x 2160 (16:9)
• Pixel Pitch: 0.137mm
• Color Depth: 1.07B
• Viewing Angle: 178°(H) / 178°(V)
• Luminance: 500cd/m2
• Contrast Ratio: 1,200:1
• Display Area: 526(H) X 296(V) mm

Input

• 4 X BNC: 3G-SDI A/B/C/D Channel Input
• 4 X BNC: 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
• 1 X HDMI: HDMI Input

Output

• 4 X BNC: 3G-SDI A/B/C/D Channel Output
• 4 X BNC: HD SDI A/B/C/D Channel Output

Audio

• Audio In: Embedded Audio/Analog Stereo (Phone Jack)
• FPGA Functions: 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode
• Closed Caption: CC-608 ANC, CC-608 LINE 21, CC-708
• Calibration: TVLogic Colour Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

• Remote: GPI (RJ45)
• Remote: TVLogic’s specification
• USB: Firmware update by USB memory stick
• Conversion: SDI-to-SDI

Dimensions

• Main Body (W x H x D): 552 x 360 x 98.5mm / 21.73 x 14.17 x 3.98in
• With Stand (W x H x D): 586 x 388 x 150mm / 23.07 x 15.27 x 5.9in
• Weight : 10.3kg / 22.71lbs

In the box

• 1x LUM-242G Monitor
• 1x AC Power Cable
• 1x Stand
