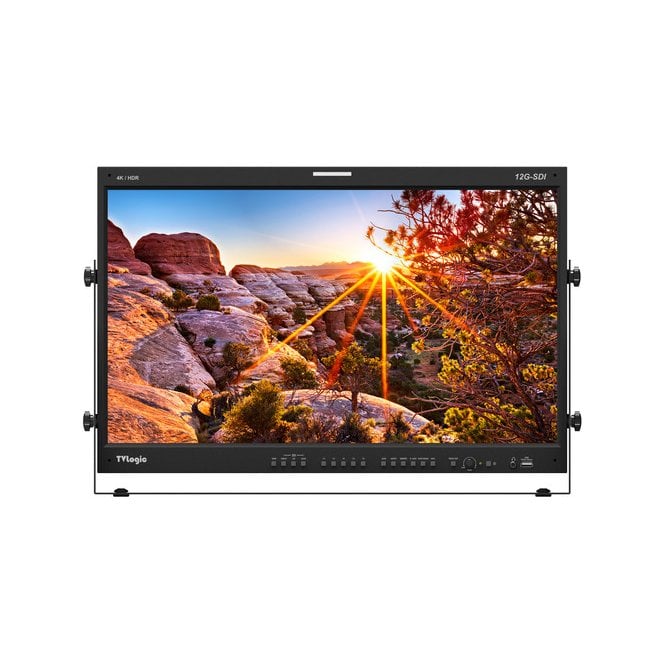

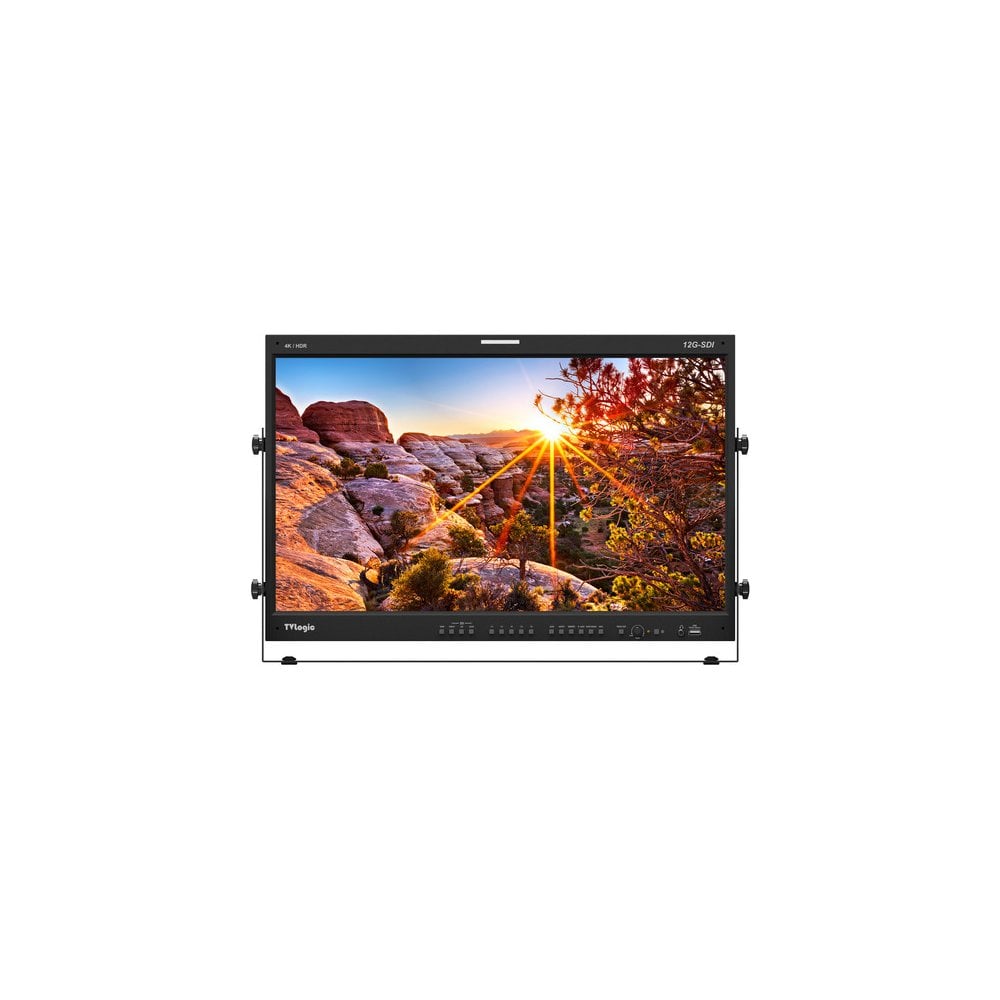

TV Logic LUM-242H 24-inch 4K/UHD High Brightness HDR Emulation Monitor

TV-Logic LUM-242H (LUM_242H, LUM/242H, LUM 242H) 24-inch 4K/UHD High Brightness HDR Emulation Monitor

The LUM-242H is a 24-inch monitor with UHD resolution (3840 x 2160), high luminance up to 1,500cd/m², a 10-bit colour depth, high contrast ratio of 1,000: 1 and wide viewing angle. The LUM-242H support various standard colour gamuts including 95% DCI-P3 coverage. It supports 12G-SDI signal with 4 BNC input connectors (2 for 12G-SDI and 2 for 3G-SDI) and an HDMI 2.0. input.

High Quality HDR

LUM-242H supports maximum luminance of 1500nits for HDR and with 95% DCI-P3 coverage and true UHD resolution, LUM-242H reproduces true-to-life colour and clear details.

Fast Colour Standard Switching Speed – 1 second

Switching speed had improved from 5 seconds to 1 second when changing colour values.

Display

• Size: 24 inch
• Resolution: 3840 x 2160 (16:9)
• Pixel Pitch: 0.137mm
• Colour Depth: 1.07B
• Viewing Angle: 178°(H) / 178°(V)
• Luminance: 150cd/m2
• Contrast Ratio: 1,000:1
• Display Area: 527(H) X 296(V) mm

Input

• 4 X BNC: 3G-SDI A/B/C/D Channel Input
• 4 X BNC: 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
• 1 X HDMI: HDMI Input

Output

• 4 X BNC: 3G-SDI A/B/C/D Channel Output
• 4 X BNC: HD SDI A/B/C/D Channel Output

Audio

• Audio In: Embedded Audio/Analog Stereo (Phone Jack)
• FPGA Functions: 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Max Brightness On/Off, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, SingleMode
• Closed Caption: CC-608 ANC, CC-608 LINE 21, CC-708
• Calibration: TV Logic Colour Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

• REMOTE: GPI (RJ45)
• REMOTE: TVLogic’s specification
• USB: Firmware update by USB memory stick
• Conversion: SDI-to-SDI

Dimensions

• Main Body (W x H x D): 552 x 360 x 98.5mm / 21.73 x 14.17 x 3.88in
• With Stand (W x H x D): 586 x 388 x 150mm / 23.07 x 15.27 x 5.9in
• Weight: 10.3kg / 22.71lbs

In the box

• 1x LUM-242H Monitor
• 1x AC Power cable
• 1x Stand
