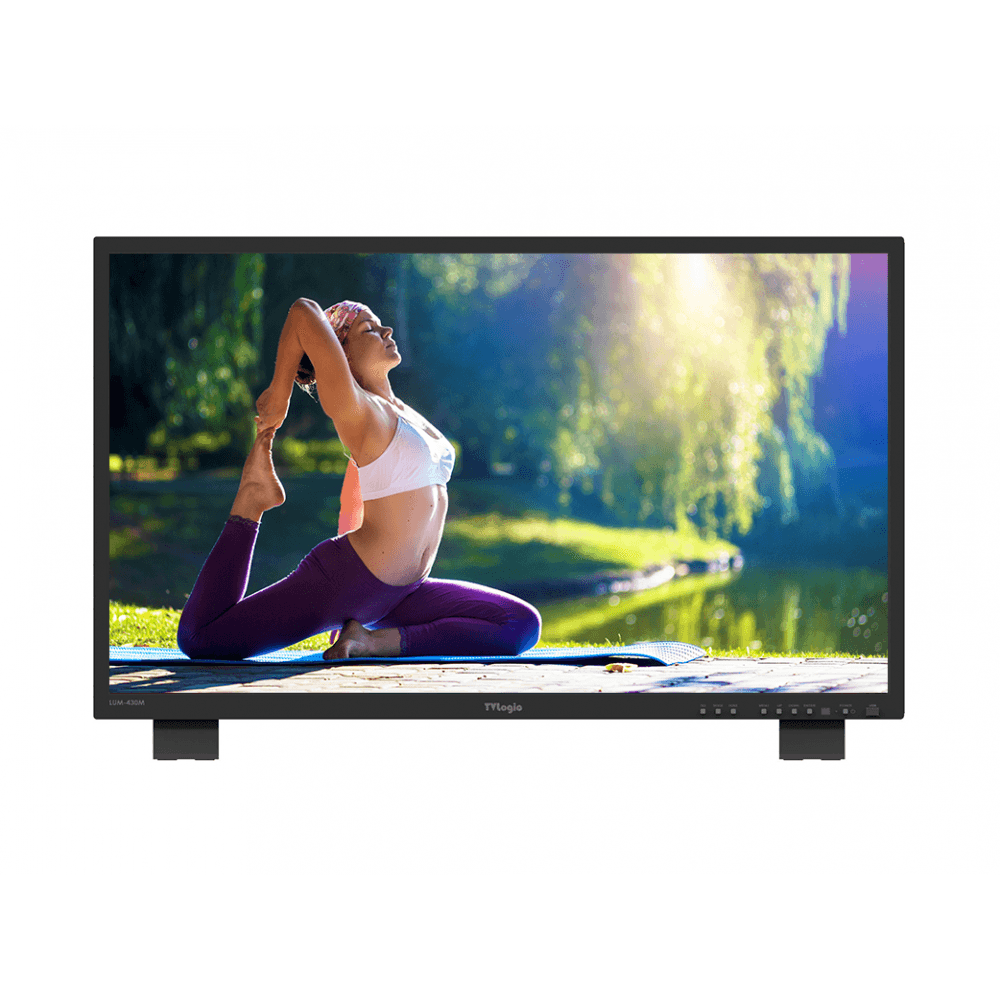

TV Logic LUM-430M2 43-inch 4K/UHD HDR Emulation Monitor

TV-Logic LUM-430M2 (LUM_430M2, LUM/430M2, LUM 430M2) 43-inch 4K/UHD HDR Emulation Monitor

The LUM-430M2 is a 4K/UHD monitor with a 42.5" True UHD (3840x2160) resolution and True 10-bit drivers. It supports 12G/6G/3G-SDI inputs and a HDMI 2.0 input. It supports various professional functions including Waveform/Vectorscope, CC-608, 708 and HDR emulation function with HDR EOTFs of PQ, HLG and SLog3.

Display

• Size: 42.5"
• Resolution: 3840 x 2160 (16:9)
• Pixel Pitch: 0.2451mm
• Colour Depth: 1.07B
• Viewing Angle: 178°(H) / 178°(V)
• Luminance: 350cd/m2
• Contrast Ratio: 1,000:1
• Display Area: 962(H) x 554.8(V) mm

Input

• 4 X BNC: 3G-SDI A/B/C/D Channel Input
• 4 X BNC: 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input
• 1 X HDMI: HDMI Input

Output

• 4 X BNC: 3G-SDI A/B/C/D Channel Output
• 4 X BNC: 1 x 12G-SDI OUTPUT

Audio

• Audio In: Embedded Audio/Analog Stereo (Phone Jack)
• FPGA Functions: 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, Key Lock, Luma(Y') Zone Check, Marker, Time Code Display, UMD, Waveform/Vector, Single Mode, Camera Lut.
• Closed Caption: CC-608 ANC, CC-608 LINE 21, CC-708
• Calibration: TV Logic Colour Calibration Utility, 3D LUT & Adjustable Gamma

Other Functions

• REMOTE: GPI (RJ45)
• REMOTE: TV Logic’s specification
• USB: Firmware update by USB memory stick
• Ethernet: Ethernet Control support
• Conversion: HDMI-to-SDI, SDI-to-SDI

Dimensions

• Main Body (W x H x D): 985 x 587 x 87.4mm / 38.77 x 23.11 x 3.44in
• With Stand (W x H x D): 985 x 635.6 x 309.4mm / 98.77 x 25.02 x 12.18in
• Weight: 23.0kg / 50.70lbs

In the box

• 1x LUM-430M2 Monitor
• 1x Stand
• 1x AC Power cable
• 1x IR Remote
