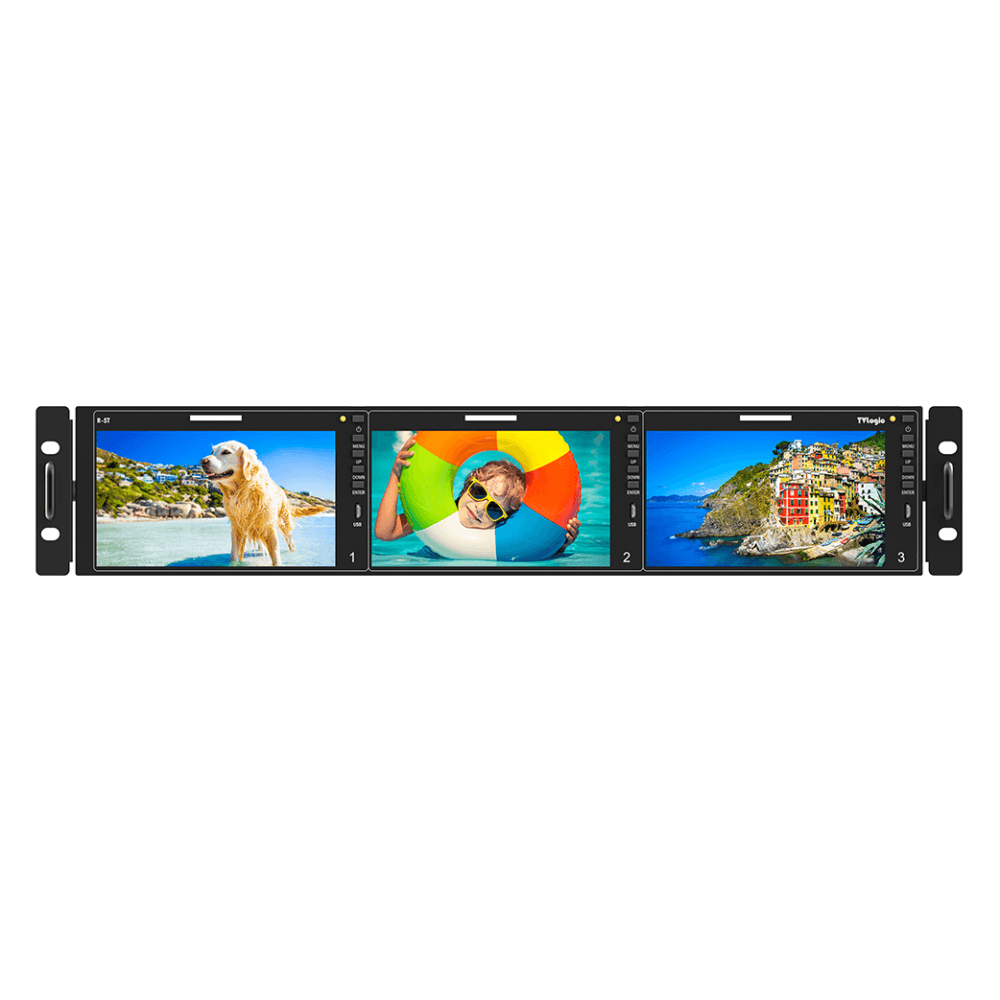

TV Logic R-5T 3x 5.5in Full HD Multi-Channel LCD Rack Monitors 2RU

TV-Logic R-5T (R_5T, R/5T, R 5T) 3x 5.5in Full HD Multi-Channel LCD Rack Monitors 2RU

The R-5T is a brand-new rack monitor(3 x 5.5”) with advanced design and performance. It offers an outstanding picture quality with a Full HD resolution of 1920 x 1080 and high luminance up to 500cd/㎡. The R-5T supports the video formats up to 12G-SDI and HDMI 2.0 and the professional features such as Scan, Audio Level Meter, Time Code Display, Waveform/Vectorscope and UMD.

• Size: 5.5"
• Resolution: 1920 X 1080 (16:9)
• Pixel Pitch: 0.0213(W) x 0.0639(H)
• Colour Depth: 16.7M
• Viewing Angle: 160°(H) / 160°(V)
• Luminance: 500cd/m2
• Contrast Ratio: 1,000:1
• Display Area: 122.7(H) × 69.0(V) mm
• Dimensions: 480.2 x 87.5 x 118.7 mm
• Weight: 2.86kg
• Input: 2 X BNC - SDI Input(12G-SDI x 1 / 3G-SDI x 1), 1 X HDMI - HDMI Input
• Output: 2 X BNC - 1 x 12G-SDI / 1 x 3G-/SDI OUTPUT
• FPGA Functions: 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, H/V Flip, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, User Aspect, Various Scan Modes, Waveform/Vector, Zoom
• Calibration: TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import
• Other Functions: REMOTE - GPI (RJ45), USB - Firmware update by USB memory stick, Ethernet - Ethernet Control support

In the box

• 3x Video Monitors
• 1x Rack Mountable Kit
• 1x DC Power Adapter
