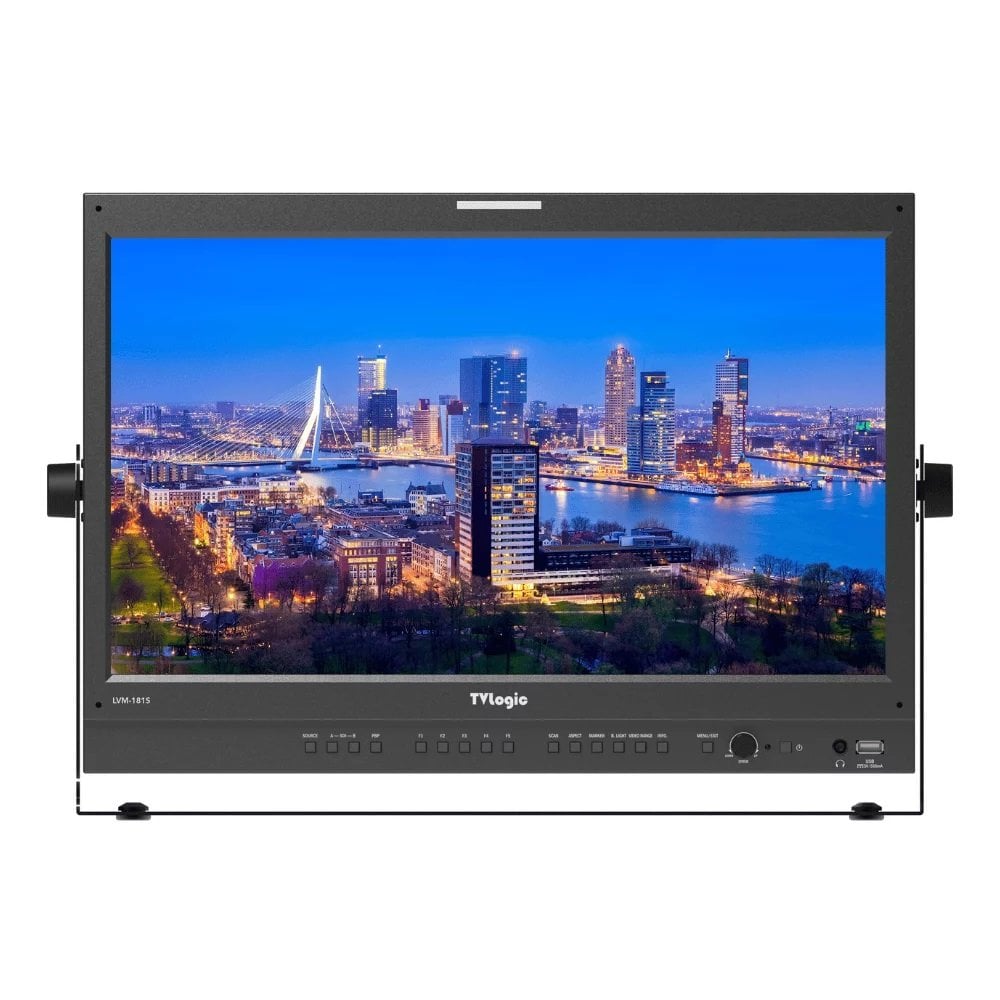

TV Logic TVLogic 18.5″ FHD High-End LCD Monitor

TVLogic 18.5″ FHD High-End LCD Monitor(TVL-LVM-181S, TVLLVM181S, TVL/LVM/181S)

The LVM-181S is TVLogic’s top grade 18.5” model with a 18.5 inch IPS LCD panel with 1920×1080 native resolution, high brightness 500 nit, enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful dual-channel performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.

HDR Emulation

A true HDR monitor must employ a special display panel with high dynamic range and a wide color gamut, along with being calibrated for PQ and HLG. For example, the LUM-310X (dual layer LCD system) and LUM-310R (LCD with local dimming backlight system) are capable of reproducing a peak luminance of 1,000 nit and 2,000 nit respectively, and a contrast ratio of 1,000,000 : 1; in addition, they cover 99% of the DCI color gamut.

Ember+ control protocol

‘Ember+’ from LAWO group is a non-proprietary TCP/IP interface protocol for broadcast equipment. An Ember+ provider can “publish” parameters which may then be used by an Ember+ consumer. Please visit GITHUB site for more information.

Audio Level Meter Display

Displays the level of the embedded sound signal together with the video signal input through the terminal such as SDI or HDMI.

Blue Only / Mono

Red and Green channels are not used and only Blue or Monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturation) of the screen using the SMPTE Color Bar. For example, after displaying the Blue channel, adjust the Color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original Gray and Blue are of the same brightness.

Custom 3D LUT Import

Allows you to load your making 3D-LUT files at NLE software like Davinci Resolve by USB flash memory and displays your LUT on VFM-055A or F-7H. Once you synchronize LUTs in the monitor, you will easily change them on production.

Fast Mode

Fast Mode is to reduce the internal video processing time of the monitor to reduce the video latency and lip sync., usually by sacrificing the de-interlacing quality in the scaler IC.

Focus AssistAssigns a color to the pixels on the boundaries of the image to inform the user to achieve the best focus. With this function, user can easily differentiate the focused area from out-focused area especially when shooting with a shallow depth of field.

H/V Delay

Allows you to check the Blanking area and synchronize signals by displaying the horizontal and vertical intervals in the center of the screen.

Key Lock

Key Lock is a password-protection function of the OSD menu so that non-authorized users cannot change the setting of the monitor.

Marker

Displays various kinds of aspect ratios on the screen. Wide range of markers and security areas are available with line color and curtain transparency selection. A User Marker is available if any of standard markers fits your requirements.

Range Error

Analyzes the input signal’s Luma (Y’) and chroma (C’) information. If the input signal exceeds the designated minimum and maximum values, the pixel will blink. This function allows for the user to easily identify any issues with exposure.

Various Scan Modes

Controls the size of the image. Overscan: Extra area around the four edges of the image that may not be seen reliably by the viewer. Underscan: Constrains the size of the image so the monitor shows everything the camera is seeing. 1:1 pixel: Displays the original image resolution without scaling to match a certain resolution or an aspect ratio.

Waveform/Vector Scope

Waveform Y: Displays the Luma(Y’), Cb, Cr component of the input signal into waveform.Vector Scope: Displays the color components ‘B-Y’ and ‘R-Y’of the input signals onto the X-Y axis.

Size 18.5″

Resolution 1920 x 1080 (16 : 9)

Colour Depth 1.06B

Viewing Angle 178°(H) / 178°(V)

Luminance 500cd/m2

Contrast Ratio 1,000:1

Display Area 408(H) x 203(V) mm

Inputs 3x BNC: Analog Input (Component)

2x BNC: 3G-SDI A/B Channel Input

1x HDMI: HDMI Input

1x DVI: DVI Input

Outputs 3x BNC: Analog Output (Component)

2x BNC: 3G-SDI Output

2x BNC: HD SDI A/B Channel Output

Input Signal 3G SDI: 2.970Gbps

HD SDI: 1.485Gbps

SD SDI: 270Mb/s

HDMI: 480i/480p/576i/576p/720p/1080i/1080p/640×480/ 720×400/800×600/1024×768/1280×1024/1366×768

DVI Analog: 640×480/720×400/800×600/1024×768/1366×768

DVI DP: 640×480/720×400/800×600/1024×768/1366×768

DVI DH: X

SDI Input Signal Formats SMPTE 425M-A/B: “1080p (60/59.94/50/30/29.97/25/24/23.98/

30sF/ 29.97sF/25sF/24sF/23.98sF)

Audio Out Analog Stereo (Phone Jack), Internal Speaker(Stereo)

FPGA Functions 1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display,

Blue Only, Focus Assist, H/V Delay, Key Lock, Marker, Mono, Range Error, Time Code Display,

UMD, User Aspect, Various Scan Modes, Waveform/Vector, X3 Zoom(PBP)

Closed Caption CC-608 ANC, CC-608 LINE 21, CC-708, CC-KOR, OP42, OP47

Calibration TVLogic Colour Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions REMOTE: GPI (RJ45)

USB: Firmware update by USB memory stick

Ethernet: Ethernet Control support

In the Box

1x LVM-181S Monitor

1x AC Power Cable
