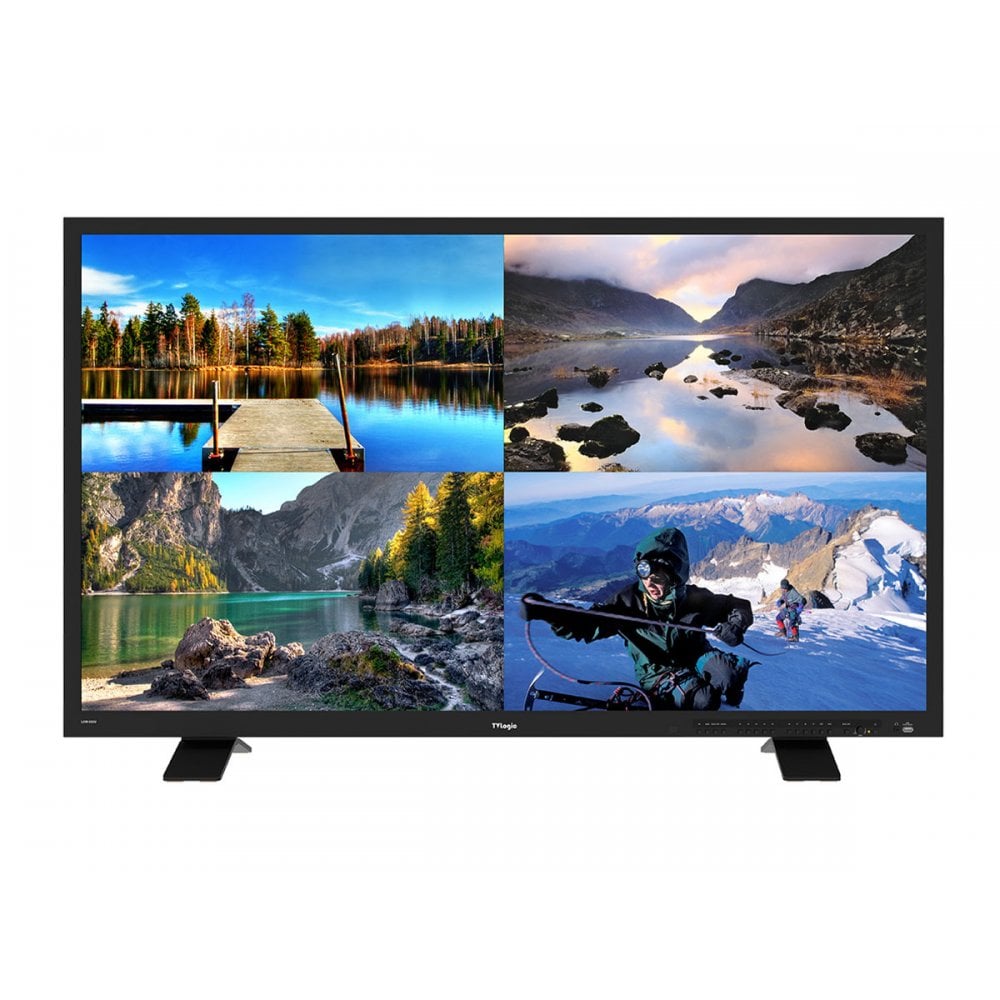

TVLogic 55" 4K/UHD HDR LCD Monitor(TVL-LXM-550U, TVLLXM550U, TVL/LXM/550U)

The LXM series incorporates 12G-SDI Input(x4), 12G-SDI Output(x4), Reference(External Sync) input, HDMI 2.0 Input, SFP Input(x2) & Processed Monitor Output.

These new 4K/UHD monitors feature wide viewing angle IPS panel, various HDR EOTFs, Wide colour gamut, 10-bit colour depth, and Accurate Colour Reproduction by 3D LUT support. Additionally, the LXM series monitors offer the high-performance functions such as HDR-SDR Comparison, 12G-SDI Quad-View and Dual-View display, custom 3D LUT import, SFP to SDI conversion output, Processed monitor output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and more. The LXM monitors are ideal for 4K live production, versatile monitoring in the studio and field location, edit suite and post-production.

Size: 54.6"

Resolution: 3840 x 2160 (16:9)

Pixel Pitch: 0.315(H) x 0.315(V) mm

Colour Depth: 1.07B Colours (10 bit)

Viewing Angle: 178°(H) / 178°(V)

Luminance of White: 700cd/m2

Contrast Ratio: 1100:1

Display Area: 1209.6(H) x 680.4(V) mm

INPUT

4x BNC: 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Input

1x HDMI: HDMI 2.0 Input

2x SFP: SFP A/B Channel Input

1x BNC: Reference Input

OUTPUT

4x BNC: 12G/6G/3G/HD/SD-SDI A/B/C/D Channel Output

1x BNC: Processed Output

INPUT SIGNAL

12G-SDI: 12Gb/s

6G-SDI: 6Gb/s

3G-SDI: 2.970Gb/s

HD-SDI: 1.485Gb/s

HDMI 2.0: 480p/720p/1080p/2160p

SDI INPUT SIGNAL FORMATS

SMPTE ST 2082: 3840x2160 (60/50/30/25/24p)

SMPTE ST 2081: 3840x2160 (30/25/24p)

SMPTE ST 2036-1: 3840x2160 (23.98/24/25/29.97/30/50/59.94/60p)

SMPTE-425M-A/B: 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/29.97sF/25sF/24sF/23.98sF)

1080i (60/59.94/50)

SMPTE-274M: 1080i (60/59.94/50)

1080p (30/29.97/25/24/24sF/23.98/23.98sF)

SMPTE-296M: 720p (60/59.94/50)

SMPTE-260M 1035i (60/59.94)

SMPTE-125M: 480i (59.94)

ITU-R BT.656: 576i (50)

SMPTE ST 2048-2: 2048x1080 (23.98/24/25/29.97/30p/psf, 47.95/48/50/59.94/60p)

REMOTE CONTROL & UPDATE

1x LAN: RJ-45 Input (Ethernet), Firmware Update & Remote Control

1x REMOTE: RJ-45 Input, GPI Control

2x RS-422: RJ-45 Input & Output, Montor Control by TVLogic Protocol or TSL Protocol

1x USB: USB A type, Firmware Update

GENERAL

Audio Out: Internal Speakers (Stereo 3W x 3W) / Analog Stereo (Phone Jack)

Power: AC100-240V (50-60Hz)

Operating Temperature: 0°C to 35°C (32°F to 95°F)

Storage Temperature: -20°C to 60°C (-4°F to 95°F)

Dimensions: Main Body: 1262 x 746 x 81.4mm / 49.68 x 29.37 x 3.20"

With Stand: 1262 x 794.5 x 245mm / 49.68 x 31.27 x 9.64"

Shipping Box: 1410 x 410 x 1050mm / 55.51 x 16.14 x 41.34"

Weight: TBD

In the Box
