TV Logic TVLogic Klein Instrument K-10A

code: TVL-K-10A
  • £8,927.68
  • RRP: £8,927.68
Status   |   Usually dispatched within 24 hours


• Large Photodiodes. Diodes that are 5mm x 5mm each, along with thermally stable components, are combined to report the highest degree of accuracy

• Exceptionally Accurate Filters. Not only is the f1 of Y critical but the accuracy of x and Z as well. See the actual Klein vs. CIE graph

• Light Mixing Chamber. This ensures all the diodes see the same light and virtually eliminates any x,y variations by turning the probe clockwise or counter clockwise

• Quick Measurements. The head takes 256 measurements per second, even at low light. For readability, 8 measurements per second are displayed.

• FFT Flicker Meter: Probe measures and integrates Y data in the head and streams in real time to the PC and a Fast Fourier Transform is performed. JEITA method

• Gamma Testing. Luminance measurements are taken from 100% video to 0% video in 10% increments. Y gamma is displayed along with the data and graphs.

• Klein PC Program. Create calibration files and set measuring parameters. Then data log, graph and export. The PC program manages the data in an easy to use interface

• 8 Bright LED's. LED's projecting through a 12ft focal length lens (62mm style available) and focusing on a screen define the measurement area. Acceptance angle is ±5 degrees

• Rugged Construction. The K-10s auto ranging is solid state and the case is impact resistant to hold up to 24 hours a day, 7 days a week required usage that manufacturing plants require

• Included items are the PC program and a certificate of calibration

• Include a free tripod mount


• The mounting hole is a standard camera mount hole of 1/4 -20

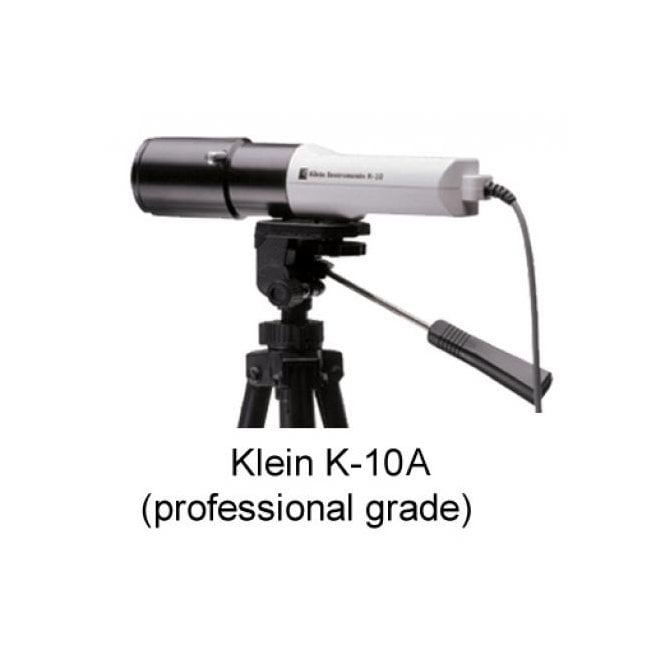

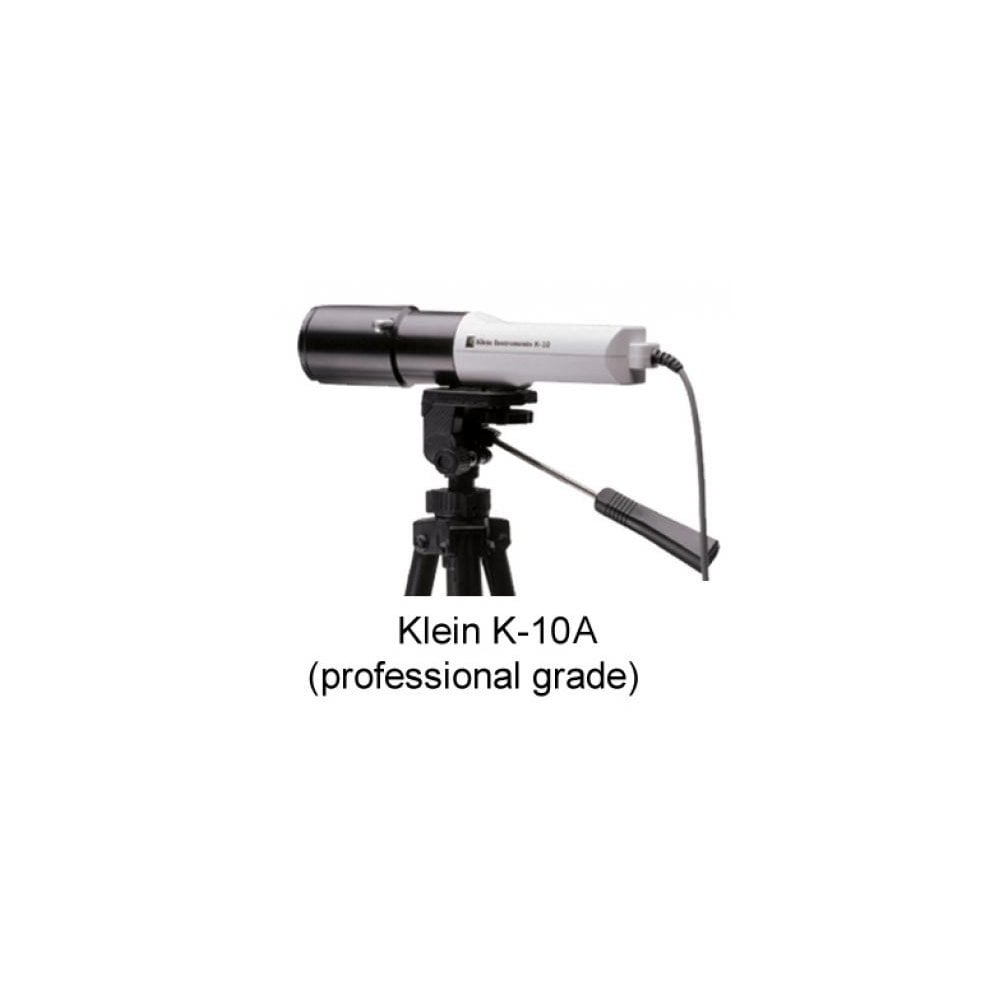

TVLogic Klein Instrument K-10A


The K-10 is specifically designed for LCD displays. It is so smart that it can measure all luminous display technologies, such as Plasma (PDP's), LED and OLED types, CRT's, FED's and much more.



What's in the box

  • 1x TVLogic Klein Instrument K-10A
