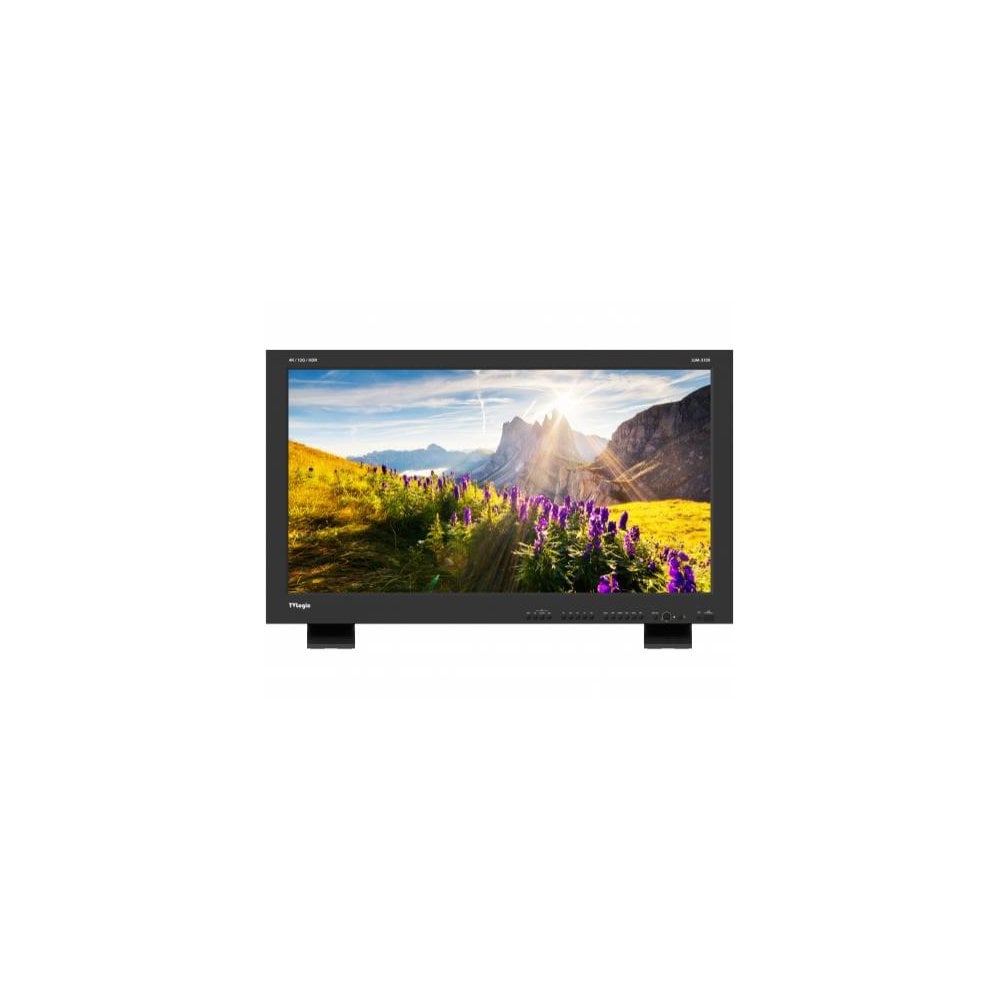

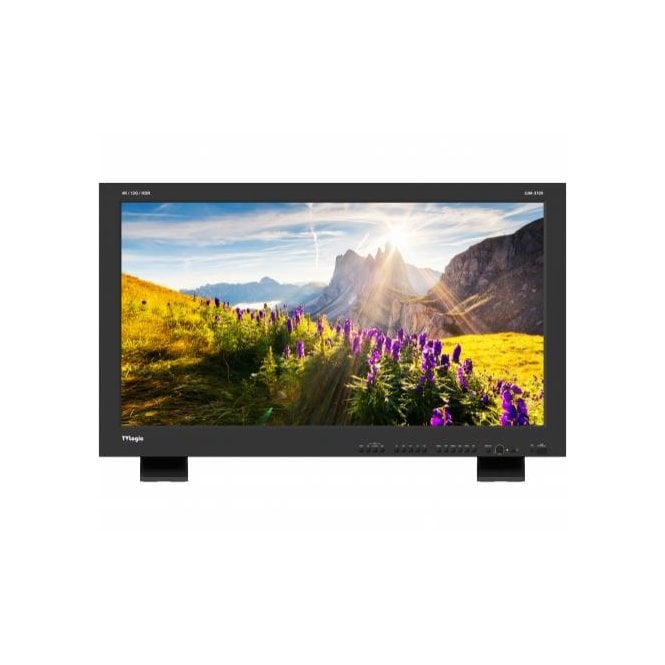

TV Logic TVLogic LUM-310X (incl. Flight Case)

TVLogic LUM-310X (incl. Flight Case), TVL-LUM-310X (TVL_LUM-310X, TVL LUM-310X, LUM-310X, TVL/LUM-310X)

The LUM-310X-CI utilizes a 31” native 4K resolution LCD panel with dual layer technology, which allows for 1,000 nit max luminance and 0.001 nit black level to provide the best available contrast ratio of 1,000,000:1. The colour gamut range of the display is wide enough to cover 100% of BT.709, 99% of DCI-P3, and 86% of the BT.2020 standard. In addition, a superior wide viewing angle can be enjoyed due to its proprietary S-IPS technology.

Display Spec.

 Size 31.1"

 Resolution 4096 X 2160 (17:9)

 Pixel Pitch 0.1704mm

 Colour Depth 1.07B

 Viewing Angle 178°(H) / 178°(V)

 Luminance 1,000cd/m2

 Contrast Ratio 1,000,000:1

 Display Area 698(H) x 368(V) mm

Input

 4 X BNC 12G-SDI A/B Channel Input, 3G-SDI C/D Channel Input

 1 X HDMI HDMI Input

Output

 4 X BNC 12G-SDI A/B,3G-SDI C/D Channel (Active Through Out)

Input Signal

 3G SDI 2.970Gbps

 12G SDI 11.880Gbps

 HD SDI 1.485Gbps

 SD SDI 270Mb/s

 HDMI 480i/480p/576i/576p/720p/1080i/1080p/2160p

SDI Input Signal Formats

 SMPTE 425M-A/B 1080p (60/59.94/50/30/29.97/25/24/23.98/30sF/ 29.97sF/25sF/24sF/23.98sF) / 1080i (60/59.94/54)

 SMPTE 296 720p (60/59.94/54)

 SMPTE 274 1080i (60 / 59.94 / 50) 1080p (30/29.97/25/24/24sF/23.98/23.102sF)

 SMPTE 260 47.95/48/50/59.94/60p)

Audio

 Audio In Embedded Audio/Analog Stereo (Phone Jack)

 Audio Out Analog Stereo (Phone Jack)

FPGA Functions

 1:1 Pixel Mapping Modes for SD/HD,  3G-SDI Level A/B,  Audio Level Meter Display,  Blue Only,  Focus Assist,  H/V Delay,  Key Lock,  Luma(Y') Zone Check,  Marker,  Max Brightness On/Off,  Mono,  Time Code Display,  UMD,  User Aspect,  Various Scan Modes,  Waveform/Vector,  SingleMode

Closed Caption

 CC-608 ANC,  CC-608 LINE 21,  CC-708

Calibration

 TVLogic Color Calibration Utility, 3D LUT & Adjustable Gamma, 3rd Party 3D LUT Import

Other Functions

 REMOTE   GPI (RJ45)

 REMOTE   TVLogic’s specification

 USB   Firmware update by USB memory stick

 Ethernet   Ethernet Control support

Options

 Stand,  Carrying Case,

Dimensions

 Main Body      776.7 x 456.35 x 193.1 (mm) / 30.57 x 17.96 x 7.6 (inch)

 With Stand      776.7 x 497.55 x 309.4 (mm) / 30.57 x 19.58 x 12.18 (inch)

 Weight      29kg / 63.93lbs

What's in the box:

• 1x 31" 4K HDR Reference Master Monitor
