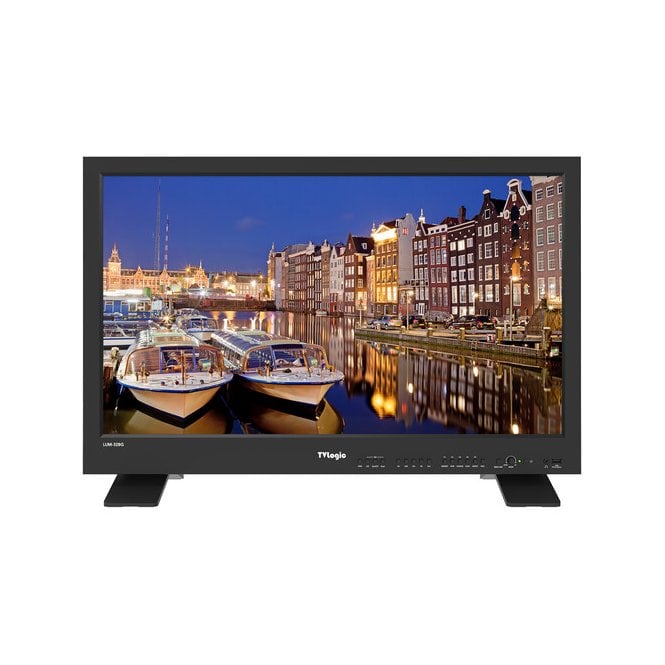

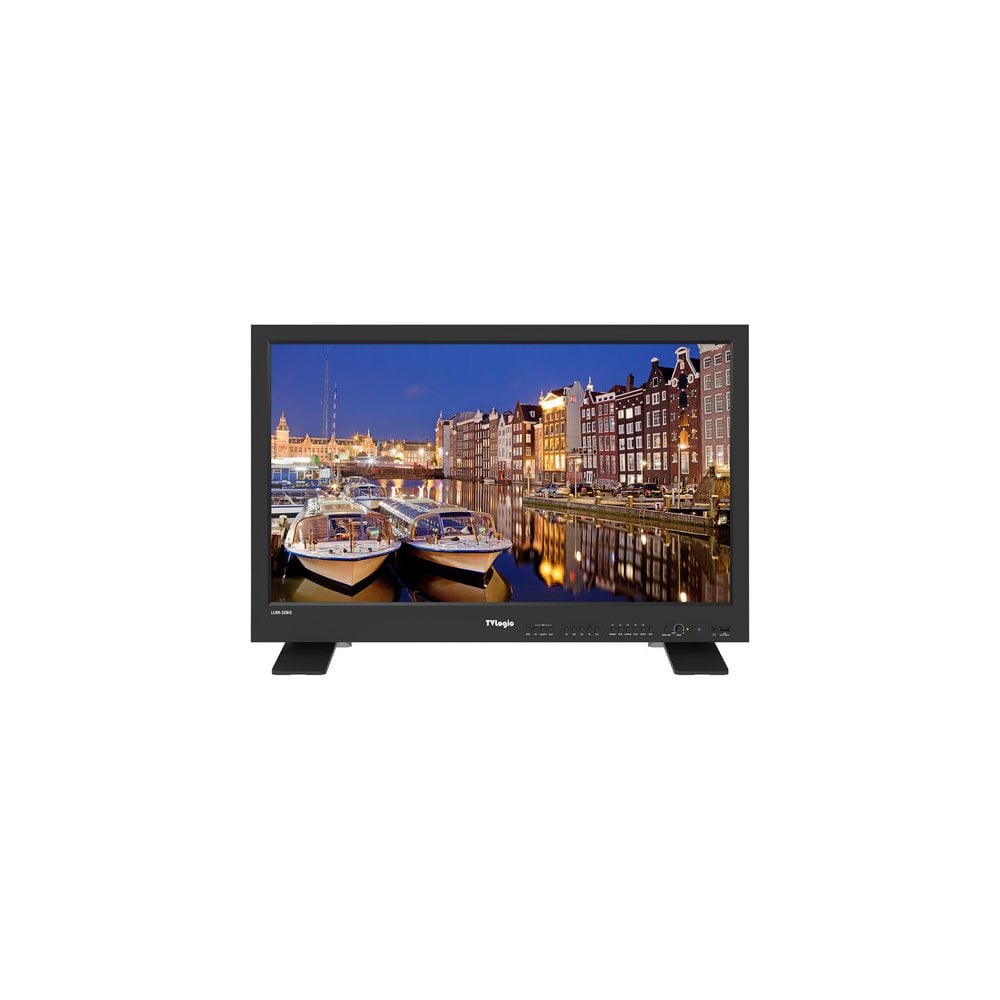

TV Logic TVLogic Lum-328g Monitor

code: TVL-LUM-328G

£11,956.52
Secure yours with a deposit of
RRP: £11,956.52
|
|

Status | Usually dispatched within 24 hours

Add to Compare

31.5” True UHD Resolution (3840×2160)

86% Coverage of DCI-P3 Color Gamut

1.07 Billion Colours (10bit)

Peak Luminance 1,000nits

HDR Emulation (PQ, HLG)

12G-SDI Single Link 4K/UHD

3G-SDI Quad-Link Square Division & 2-S.I. 4K/UHD

Waveform / Vectorscope

16ch Audio Level Meter

Focus Assist / Marker

Timecode Display

UMD Display

Blue/Mono Only

Various Aspect

Luma(Y’) Zone Check

Closed Caption (CC-608, CC-708)

H/V Delay

Screen Tally

Description
Specification
Included In Box
Reviews

TVLogic Lum-328g Monitor (TVL-LUM-328G, TVLLUM-328G, TVL LUM-328G)

The 32-inch UHD monitor offers excellent picture quality with 3840x2160 resolution, high brightness up to 1,000 nits, and wide viewing angles. The LUM-328G provides HDR emulation capabilities along with HDR EOTF of PQ and HLG, a bunch of video signal analysis functions, rugged housing, which make it ideal for use in control rooms, editing suites as well as OB Vans.

Size 31.5"

Resolution 3840 x 2160 (16:9)

Pixel Pitch 0.18159mm

Color Depth 1.07B Colors

Viewing Angle (Typ.) 178°(H) / 178°(V)

Luminance (Max.) 1,000nits (center)

Contrast Ratio 1000:1

Display Area 697.31(H) x 392.23(V) mm

Input 4 x BNC 12G-SDI A/B Channel Input

3G-SDI C/D Channel Input

1 x HDMI HDMI(2.0) Input

Output 4 x BNC 12G-SDI A/B, 3G-SDI C

Input Signal 12G-SDI 12Gb/s

6G-SDI 6Gb/s

3G-SDI 2.970Gb/s

HD-SDI 1.485Gb/s

HDMI 2160p(60)/1080p(60)/1080i(60)/720p(60)

/480p(60)/576p(50

SDI Input Signal Formats SMPTE ST 2048-1 - 2160p(60/50/59.94/30/29.97/25/24/23.98)

SMPTE ST 2082 - 2160p(60/50/59.94)

SMPTE ST 2081 - 2160p(30/25/24/23.98/29.97)

SMPTE-425M-A/B - 1080i(60/59.94/50)

1080p(60/59.94/50/30/29.97/25/24/23.98/

30sF/29.97sF/25sF/24sF/23.98sF)

SMPTE-274M - 1080i(60/59.94/50)

1080p(30/29.97/25/24/23.98/24sF/23.8sF)

SMPTE-296M - 720p(60/59.94/50)

SMPTE-259M - 480i (59.94), 576i (50)

Audio In Embedded Audio

Analog stereo (Phone Jack)

Audio Out Analog Stereo (Phone Jack)

Power AC 100~240V(50~60Hz)

Power Consumption (Approx.) 162Watts (Max.)

Operating Temperature 0°C to 45°C (32°F to 113°F )

Storage Temperature -20°C to 60°C (-4°F to 140°F )

Included Accessories AC Power Cable, Table Stand

Main Body Dimensions 760.3 x 485.3 x 107.1(mm) / 29.93 x 19.1 x 4.21(inch)

Weight 18.7kg / 41.22lbs

In the Box

1x Monitor

1x AC Power Cable

1x Table Stand
