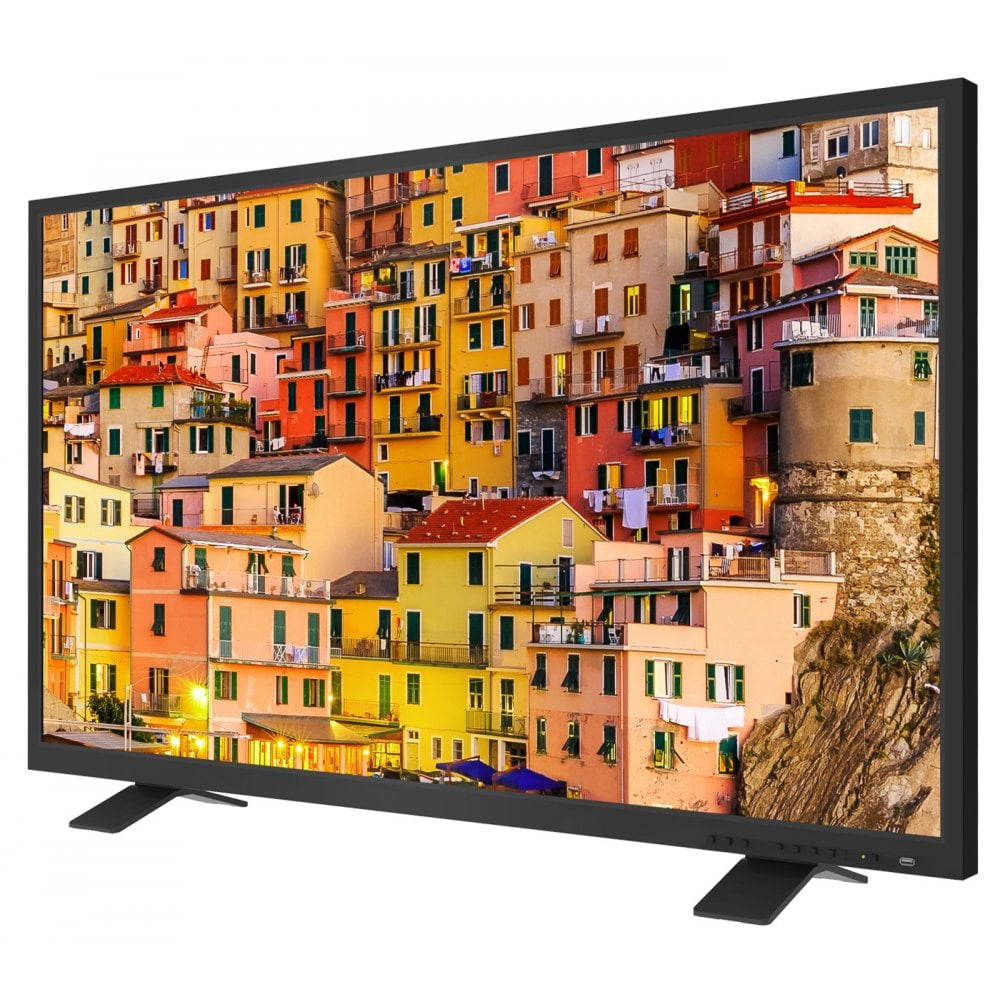

TV Logic TVLogic LUM-550M3 55" True UHD 4K LCD Monitor

TVLogic LUM-550M3 55" True UHD 4K LCD Monitor

LUM 550M3 LUM550M3 LUM-550M3 LUM/550M3

55" True UHD 4K LCD Monitor with 3840 x 2160 10 bit panel 700cd/m², DCI-P3 Coverage 86%, 2 x 12G/6G/3G/HD-SDI Input, 2 x 3G/HD-SDI Input, 4x3G-SDI Quad-link Input support, 1 x 12G/6G/3G/HD-SDI Output, 1 x HDMI 2.0 Input, HDR Emulation(PQ, HLG, SLog3)

Specifications

• Size: 54.6"
• Resolution: 3840×2160(16:9)
• Pixel Pitch: 0.315(H) x 0.315(V) mm
• Color Depth: 1.07B Colors
• Viewing Angle: 178°(H) / 178°(V)
• Luminance of white: 700nits
• Contrast Ratio: 1100:1
• Display Area: 1209.6(H) x 680.4(V) mm

Input

• 1 x HDMI HDMI(2.0) Input
• 4 x BNC 12G/6G/3G/HD/SD-SDI Ch1/Ch2, 3G/HD/SD-SDI Ch3/Ch4

Output

• 4 x BNC 12G/3G/HD/SD-SDI Output 1Ch
• By Pass Mode : SDI A/B Channel (Active Through Out)
• 12G Mode : 3840x2160 60p/59.94p/50p

Input Signal

• 12G-SDI 12Gb/s
• 6G-SDI 6Gb/s
• 3G-SDI 2.970Gb/s
• HD-SDI 1.485Gb/s
• HDMI 720p/1080p/2160p, Wav

What's in the box

• 1x TVLogic LUM-550M3 55" True UHD 4K LCD Monitor
• AC Power Cable
• IR Remote
• Table Stand
