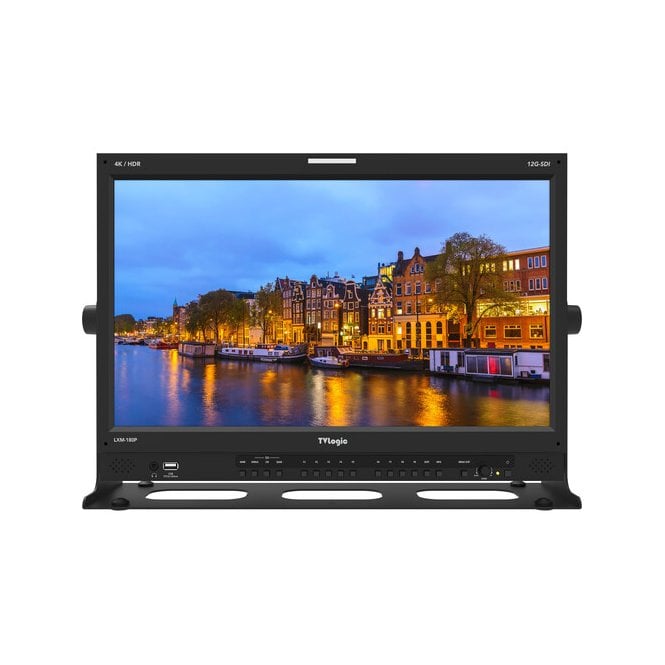

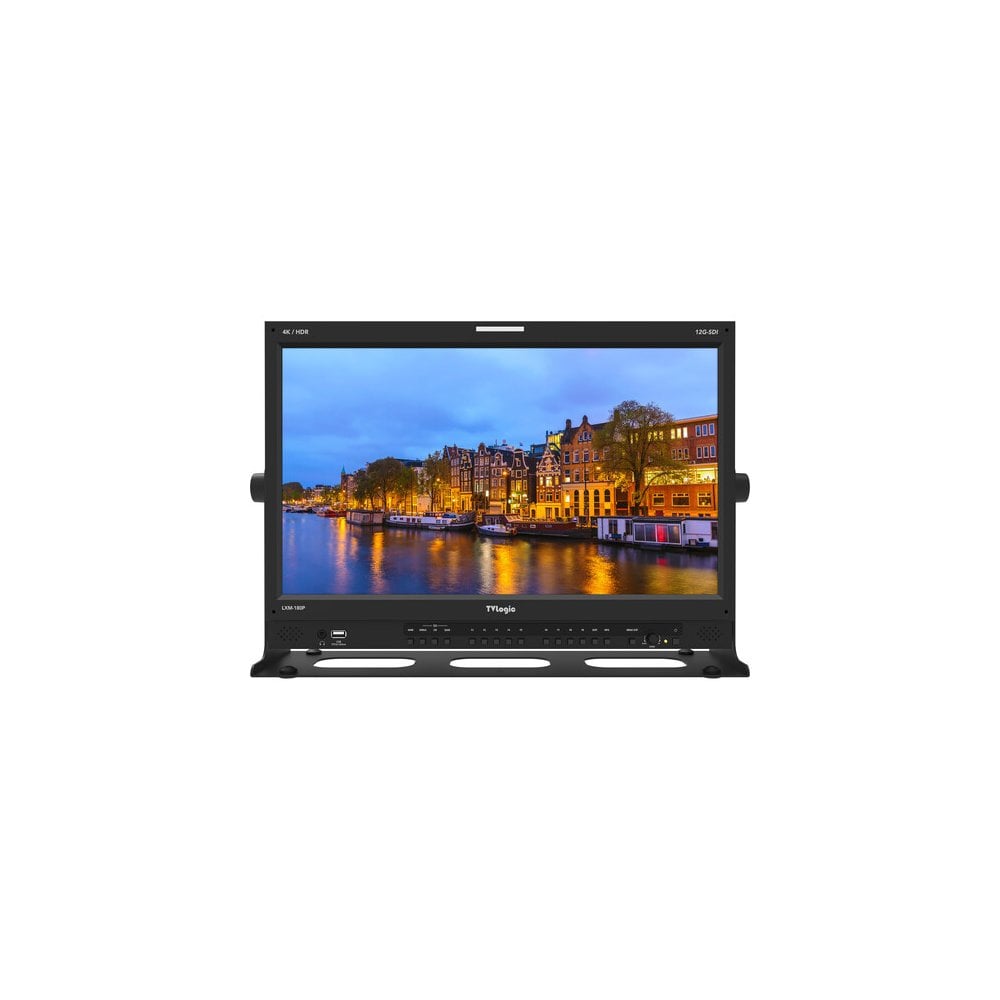

TV Logic TVLogic Lxm-180p Monitor

code: TVL-LXM-180P
  • £7,213.04
  • RRP: £7,213.04
Status   |   Usually dispatched within 24 hours

Four 12G-SDI input and loop output

3G-SDI quad-link input and loop output

Reference input

Dual SFP input

HDMI 2.0 input

Quad-view & dual-view display

Processed monitor output

Various conversion output

Quad link 12G input to single link 12G output

Firmware update by Ethernet

3840 x 2160 display resolution

1000 cd/m² peak luminance

1.073 billion colors


HDR vs SDR comparison

Wide color gamut

Custom 3D LUT import by USB flash drive

Auto detection of SDI payload ID

Fast mode

Waveform, vectorscope, histogram

Audio phase meter

Closed caption (CC-608, CC-708)

TVLogic Lxm-180p Monitor (TVL-LXM-180P, TVLLXM-180P, TVL LXM-180P)

Add a professional-grade monitor to your production environment with this LXM-180P 18.4" DCI/UHD 4K Monitor from TVLogic. This bright and vivid monitor supports HDR emulation including a wide color gamut, wide dynamic range, PQ, HLG, and SLog3 gamma, 10-bit color, up to 4K input, and its native resolution is 3840 x 2160. It accepts video up to UHD 4K via its HDMI 2.0 input or four 12G-SDI inputs, and quad-link 3G-SDI inputs. It also features 12G-SDI and 3G-SDI quad-link loop outputs to send the signals to additional monitors or switchers for quad-view or dual-view displays.

The monitor has 1000 cd/m² brightness for clear viewing in daylight conditions and a wide 178° angle of view, as well as a sharp 1000:1 contrast ratio. Its internal tools and features include closed caption support, SFP-to-SDI conversion, a color calibration utility, 3D LUT support, waveform, vectorscope, timecode display, markers, check field, and many other image monitoring tools. The monitor also supports control via GPI and Ethernet, and it can have its firmware updated using a USB flash drive.

In the Box

TVLogic LXM-180P 18.4" DCI/UHD 4K Monitor
