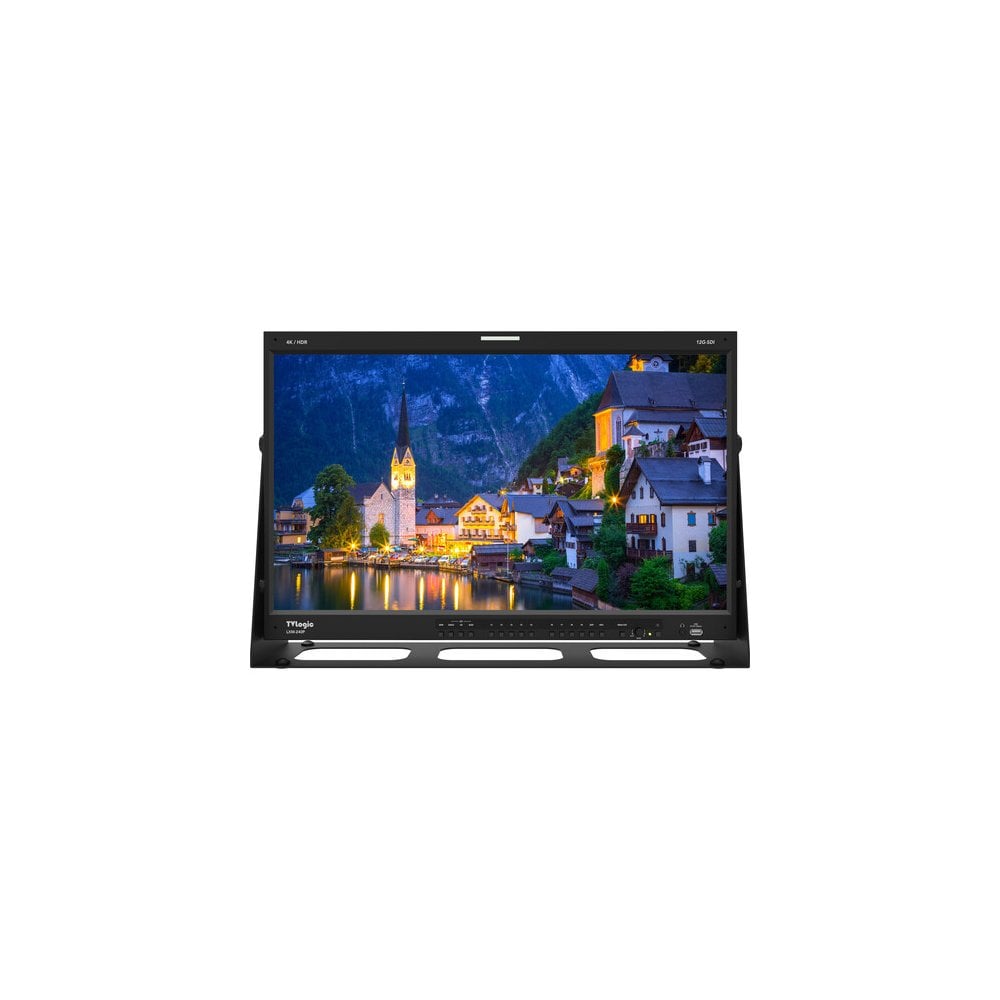

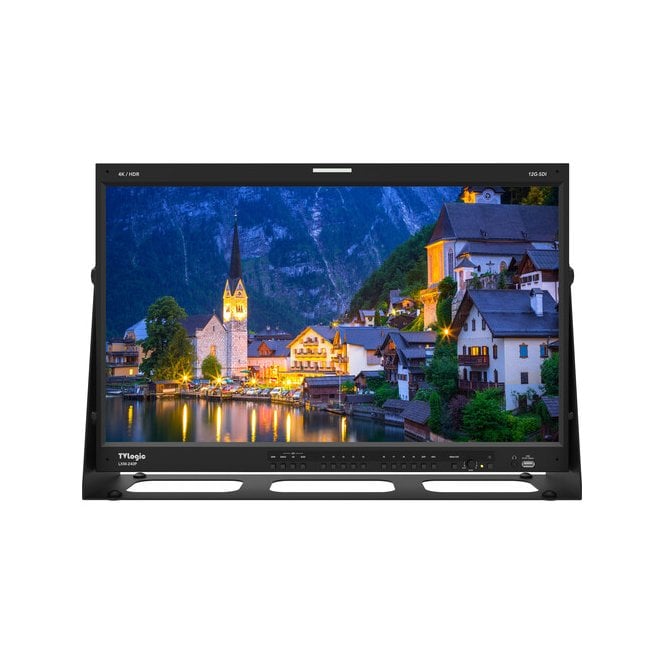

TV Logic TVLogic Lxm-240p Monitor

TVLogic Lxm-240p Monitor(TVL-LXM-240P, TVLLXM-240P, TVL LXM-240P)

Add a professional-grade UHD 4K monitor to your production environment with this LXM-240P 23.8" DCI/UHD 4K Monitor from TVLogic. This bright and vivid monitor supports HDR emulation including a wide color gamut, wide dynamic range, PQ, HLG, and SLog3 gamma, and 10-bit color support, and its native resolution is 3840 x 2160. It accepts video up to UHD 4K via its HDMI 2.0 input or four 12G-SDI inputs, and up to 1080p60 via two 3G-SDI input. It also features 12G-SDI and 3G-SDI quad-link loop outputs to send the signals to additional monitors or switchers for quad-view or dual-view displays.

The monitor has approximately 1000 cd/m² brightness for clear viewing in daylight conditions and a wide 178° angle of view, as well as a sharp 1000:1 contrast ratio. Its internal tools and features include closed caption support, SFP-to-SDI conversion, a color calibration utility, 3D LUT support, waveform, vectorscope, timecode display, markers, check field, and many other image monitoring tools. The monitor also supports control via GPI and Ethernet, and it can have its firmware updated using a USB flash drive.

Display

Panel Type IPS-Type LCD

Display Size 23.8" / 60.5 cm

Screen Area 20.70 x 11.64" / 52.7 x 29.65 cm

Resolution 3840 x 2160

Aspect Ratio 16:9

Viewing Angle Horizontal: 178°

Vertical: 178°

Touchscreen No

Maximum Brightness 1000 nits / cd/m2

Contrast Ratio 1000:1

Dot Pitch 0.137 x 0.137 mm

Bit Depth / Color Support 10-Bit (1.07 Billion Colors)

HDR Compatibility Hybrid Log Gamma

Pixels Per Inch (ppi) 185 ppi

Color Gamut 98% DCI-P3

Real-Time LUT Monitoring SDR, HDR

Image Controls Histogram, Vectorscope, Waveform

Inputs / Outputs

Video I/O 4 x BNC (12G-SDI) Input

1 x HDMI 2.0 Input

4 x BNC (12G-SDI) Loop Output

1 x BNC (Unspecified SDI) Output

Audio I/O 1 x 1/8" / 3.5 mm Line Input

Built-In Speaker None

Power I/O 1 x XLR 4-Pin (12 VDC) Input

1 x IEC Input

Other I/O 1 x BNC (Reference) Input

1 x RJ45 (LAN)

1 x RJ45 (GPI) Input

1 x RJ45 (RS-422) Input

1 x RJ45 (RS-422) Output

Expansion Slots 2 x SFP Slot

Media/Memory Card Slot None

Wi-Fi None

Bluetooth None

Mobile App Compatible No

*As of May, 2023: Check with manufacturer for the most up-to-date compatibility

Format Support

Video Signal Conversion HDMI to SDI

SFP+ to SDI

General

Dimensions 21.75 x 14.19 x 3.78" / 55.25 x 36.04 x 9.59 cm

23.07 x 15.28 x 5.9" / 58.61 x 38.82 x 15 cm, Including Stand

Weight 22.0 lb / 10 kg

In the Box

TVLogic LXM-240P 23.8" DCI/UHD 4K Monitor

AC Power Cord

Desktop Stand

USB Port Cover
