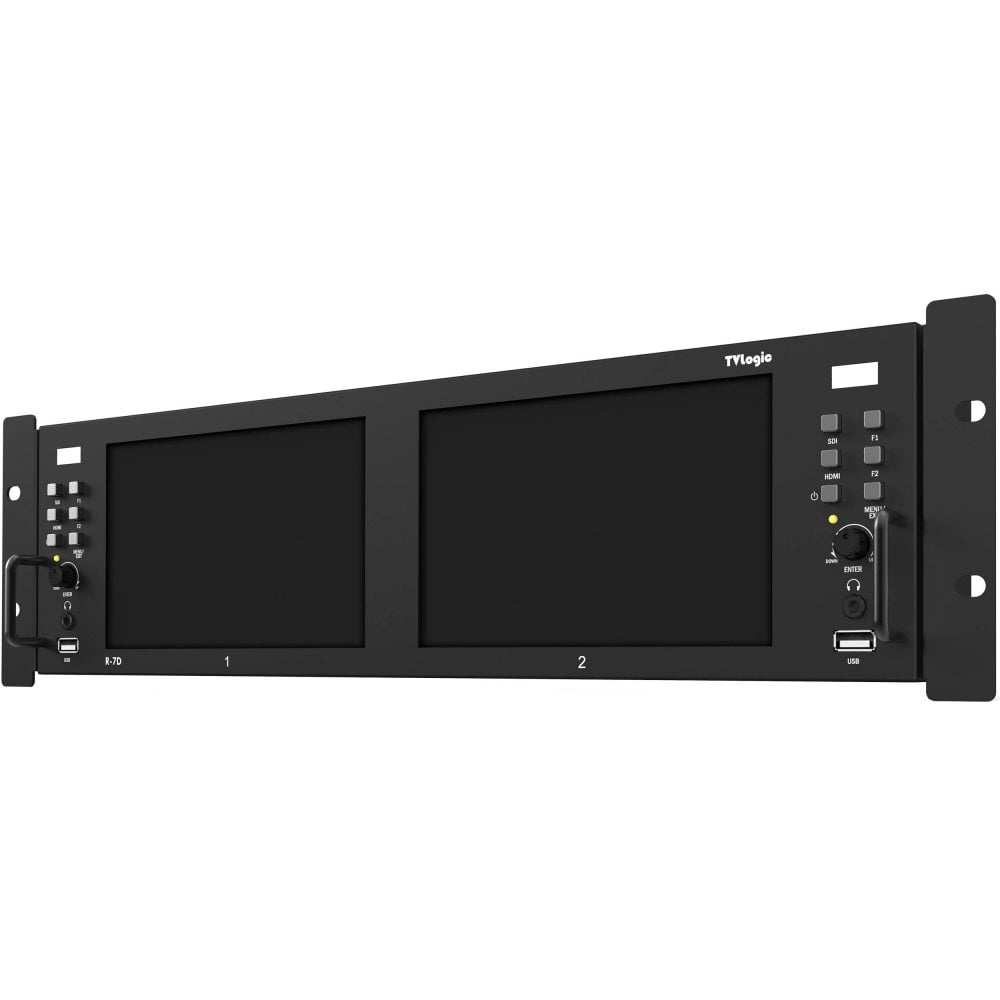

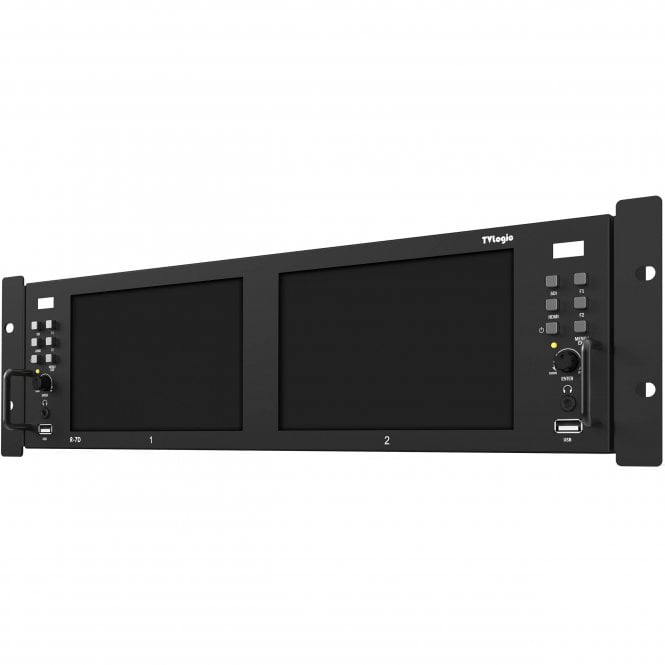

Featuring two 7" displays in a slim 3 RU design, the Dual 7" LCD UHD 4K Ready Rackmount Monitors from TVLogic are designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The R-7D has 12G-SDI, 3G-SDI, and HDMI inputs and outputs per display as well as 3.5mm headphone output and a USB input for firmware and 3D LUT import for each panel. Each 7" display features a 1920 x 1200 resolution, a wide 160° viewing angle, and they can monitor up to UHD 4K60 video resolutions.

Built-in image analysis functions include HDR emulation, 1:1 scan modes, waveform, vectorscope, delay, zone check, a 16-channel audio meter, and timecode display. A 4-pin XLR power input is provided on the rear, and a 12 VDC power adapter is included. A rackmount kit is included to mount the dual monitors onto a standard rack.

Specifications

• Panel Type: LCD
• Display Size: 7.0" / 17.8 cm
• Screen Area: 6.0 x 3.7" / 151.2 x 94.5 mm
• Resolution: 1900 x 1200
• Aspect Ratio: 16:10
• Viewing Angle: Horizontal: 160°
• Vertical: 160°
• Touchscreen: No
• Maximum Brightness: 500 cd/m2
• Contrast Ratio: 1200:1
• Dot Pitch: 0.07875 x 0.07875 mm
• Bit Depth / Color Support: 6-Bit+FRC (16.7 Million Colors)
• HDR Compatibility: Hybrid Log Gamma
• Pixels Per Inch (ppi): 323 ppi
• Image Controls: Check Field, Customizable Aspect Ratios, Vectorscope, Waveform
• I/O

Video:

• 1 x BNC (12G-SDI) Input
• 1 x BNC (3G-SDI) Input
• 1 x HDMI Type A Input
• 1 x BNC (12G-SDI) Loop Output
• 1 x BNC (3G-SDI) Loop Output

• Embedded Audio: HDMI/SDI
• Audio: 2 x 1/8" / 3.5 mm Headphone Output
• Built-In Speaker: None
• Power I/O: 1 x XLR 4-Pin (1.85 A / 12 VDC) Input
• Other I/O: 2 x USB 2.0 (USB Type-A) Input
• Media/Memory Card Slot: None
• Wi-Fi: None

Format Support

• Video Format: HDMI/SDI
• UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
• DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
• 1080PsF: 30/29.97/25/24/23.98
• 1080p: 60/59.94/50/30/29.97/25/24/23.98
• 720p: 60/59.94/50
• 576i: 50
• 480i: 59.94

Power

• DC Input Power: 12 VDC at 1.85 A
• Power Consumption: 22 W

Mounting

• Rack Form Factor: 3 RU

Environmental

• Operating Temperature: 32 to 104°F / 0 to 40°C
• Storage Temperature: -4 to 140°F / -20 to 60°C

General

Dimensions:

• 16.9 x 5.2 x 2" / 430 x 132 x 50.5 mm, Excluding Bracket
• 18.9 x 5.2 x 2.9" / 480.8 x 132 x 73 mm, Including Bracket

Weight:

• 5.42 lb / 2.46 kg

What's in the box

• TVLogic R-7D
