TVLogic RKM-290A

TVL RKM 290A TVLRKM290A TVL-RKM-290A TVL/RKM/290A

HD/SD Multi-Channel LCD Rack Monitors from TVlogic

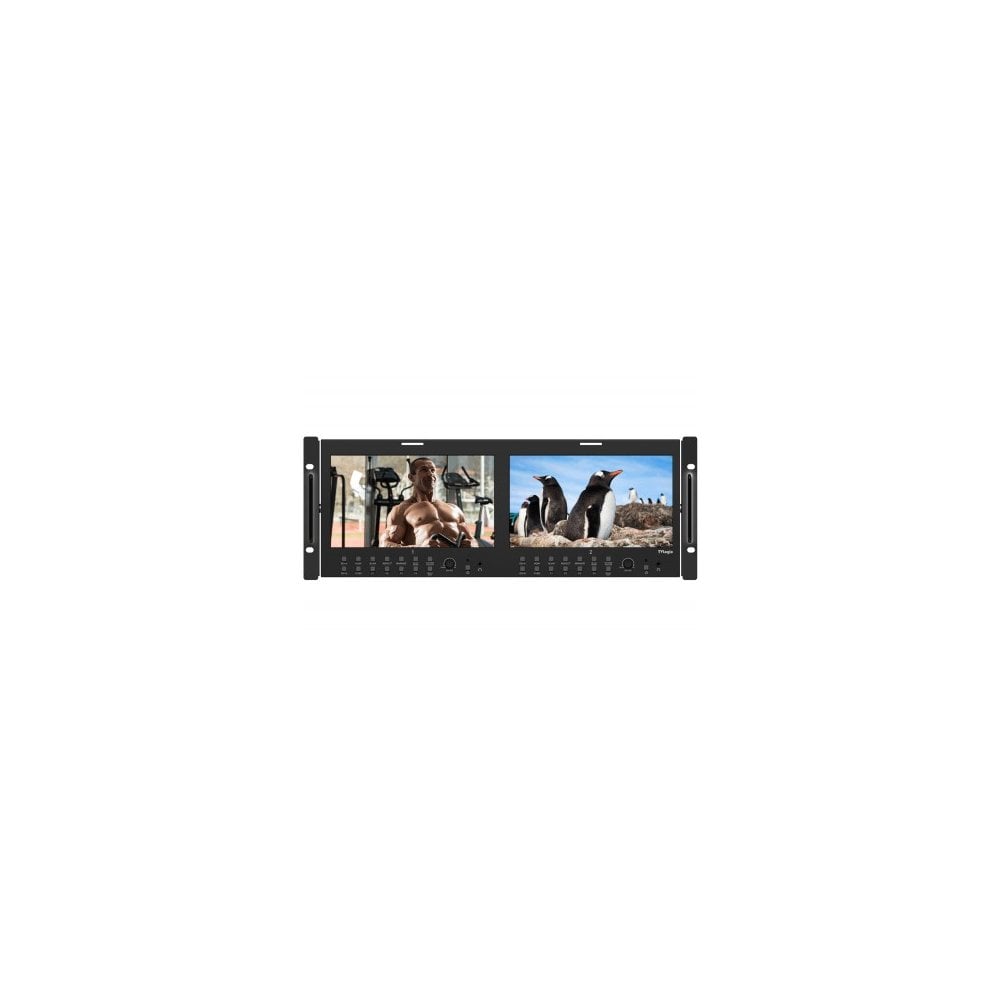

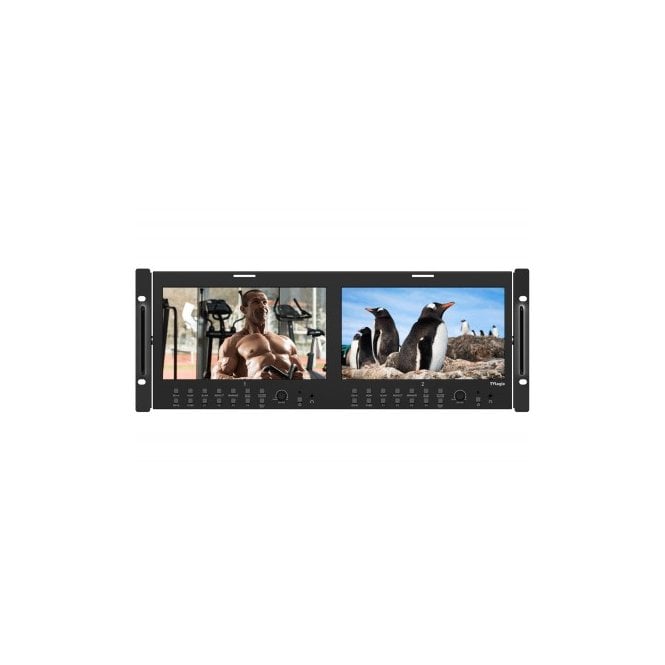

A brand-new rack-mount monitor with 2 × 9" LCD screens. which has the same high performance display as LVM-095W-N with full HD resolution and wide viewing angle capability. It supports SDI in/out and HDMI input.

Key Features:

• Features 2 x 9" LCD Screens
• Full HD Resolution
• Wide Viewing Angle
• Easy to set-up and use
• Features SDI In/Out and HDMI Input

Specifications

Display:

• Size: 9"
• Resolution: 1920 X 1080 (16 : 9)
• Pixel Pitch: 0.1035mm
• Colour Depth: 16.7M
• Viewing Angle: 176°(H) / 176°(V)
• Luminance: 400cd/m2
• Contrast Ratio: 750:1
• Display Area: 199(H) x 112(V) mm

Input

• 1 X BNC Analog Input (Composite)
• 2 X BNC 3G-SDI A/B Channel Input
• 1 X HDMI HDMI Input

Output

• 1 X BNC 3G-SDI Output

Audio

• Audio In: Embedded Audio/Analog Stereo (Phone Jack)
• Audio Out: Analog Stereo (Phone Jack), Internal Speaker(Mono)

FPGA Functions

• Functions :1:1 Pixel Mapping Modes for SD/HD, 3G-SDI Level A/B, Audio Level Meter Display, Blue Only, Focus Assist, H/V Delay, Key Lock, Luma(Y') Zone Check, Marker, Mono, Range Error, Time Code Display, UMD, Various Scan Modes, Waveform/Vector, Zoom

Closed Caption

• Closed Caption: CC-608 ANC, CC-608 LINE 21, CC-708

Other Functions

• USB: Firmware update by USB cable, Firmware update by USB memory stick
• Ethernet: Ethernet Control support
• Conversion: SDI-to-SDI

What's in the box

• 1 x TVlogic RKM-290A HD/SD Multi-Channel LCD Rack Monitors
