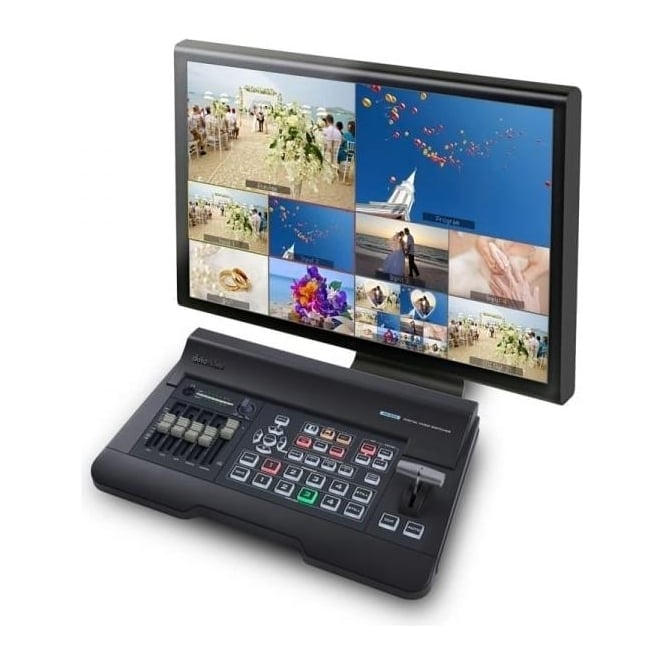

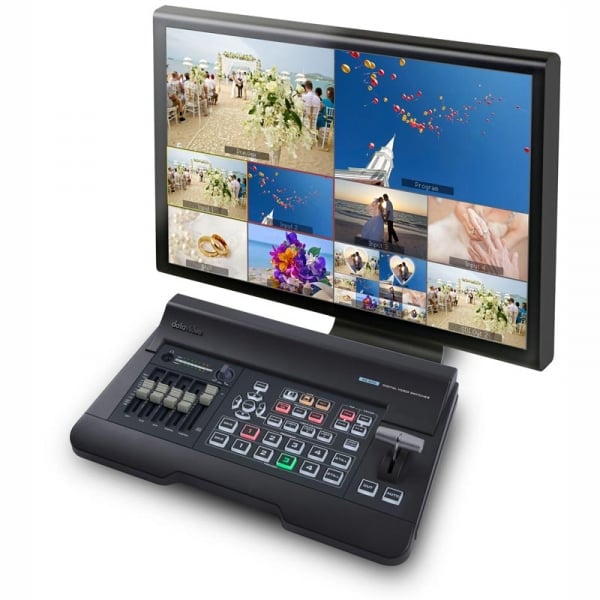

Datavideo DATA-SE650 4 Input HD Digital Video Switcher

Datavideo (DATA-SE650, DATASE650, DATA SE650)

The Datavideo SE-650 is a small, costeffective, professional HD digital video switcher.

It offers two HD-SDI and two HDMI inputs that support video formats up-to 1080i.

It features two HDMI outputs and a user assignable HD-SDI output.

The SE-650 is the perfect device for small scale video production using professional cameras and HDMI equipment. The SE-650 also features an audio mixer with microphone and unbalanced RCA audio inputs.

Advanced tools include Chromakey, Luma key, PiP, wipe generator, still store and tally.

• 4 Input HD digital video switcher
• Inputs: 2 x HD-SDI, 2 x HDMI
• Outputs: 1 x HD-SDI, 2 x HDMI
• Any Input can be used as a Frame store (Stills Store)
• Assignable Outputs: Program (w/ LOGO), Clean Program (w/o LOGO), Clean Preview (w/o LOGO), Multiview
• Frame Sync on each input
• Flexible Mix/Effects Processor with 1 Upstream Keyer, supporting Chromakey & Linear/ Luma Key
• 1 Upstream PIP, supporting Chromakey & Luma Key
• Wipe Generator: 32 Wipe Patterns, including Circle & Heart - Borders & Softness Control
• Full M/E Preview function
• Logo insertion
• XPT (Cross Point Assignment)
• Tally Output
• 6 Channel Audio Mixer
• Audio inputs: 2 x RCA Analogue (L/R), 2 x Microphone
• Audio outputs: 2 x RCA Analogue (L/R), 1 x Stereo headphone mini Jack
• Audio em-bedded function
• Multi-language support
