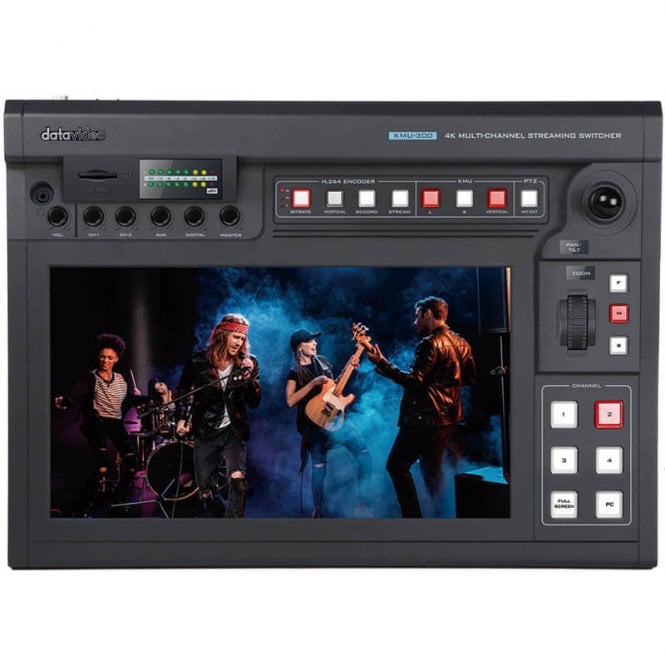

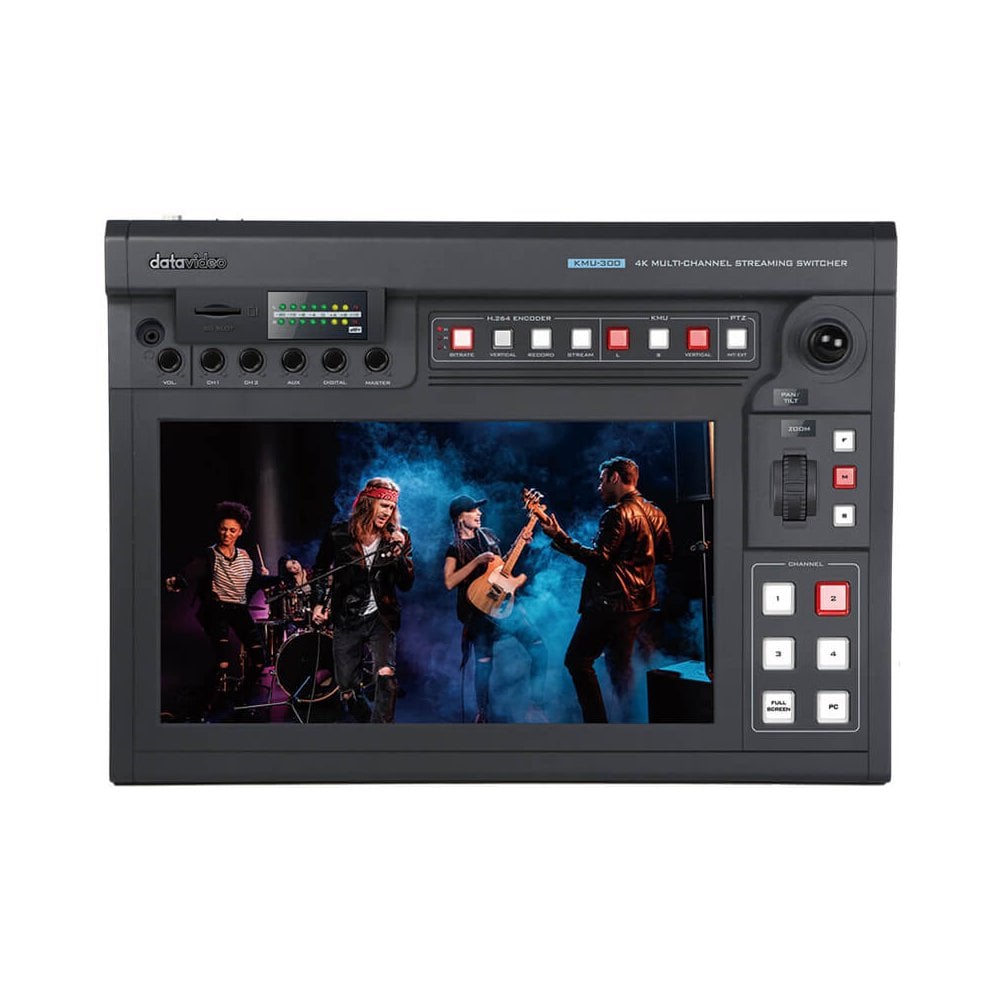

Datavideo 4K Multi Channel Streaming Switcher

Datavideo 4K Multi Channel Streaming Switcher(DATA-KMU-300)

New Design with Horizontal and Vertical Video Streaming and Recording

The Datavideo KMU-300 4K Touch Screen Video Production Switcher is an innovative new switcher design based on the award winning KMU-200.  Datavideo is transforming this new market category with the Datavideo KMU-300 4K Touch Screen Video Production Switcher 4K Multi-Channel Touch Screen switcher. The Datavideo KMU-300 4K Touch Screen Video Production Switcher brings switching, audio mixing, recording and streaming into a portable all in one device.

Another great feature of the new Datavideo KMU-300 4K Touch Screen Video Production Switcher is the ability to work as both a horizontal video switcher and as a vertical video switcher.  Horizontal video is the current norm, but vertical video content is growing in popularity due to smart phones where most content is consumed in portrait mode.  The Datavideo KMU-300 4K Touch Screen Video Production Switcher will allow you to push your vertical video productions to new limits.

Supports 4K UHD Resolution Input

4K cameras are widely available and content online doesn’t require the full 4K resolution for streamed content.  A single 4K camera can be utilized to obtain 4 cut outs or regions of interest. The Datavideo KMU-300 4K Touch Screen Video Production Switcher is perfect for interview application with small panels or smaller houses of worship.  With Social distancing becoming commonplace, the Datavideo KMU-300 4K Touch Screen Video Production Switcher reduces the amount of cameras needed to get your production streamed live.

Easy Touch-Screen Operation

Touch Screen operation for simplified tasks and tactile buttons are provide for switching.  The 14-inch touch screen allows gesture control over the live content.  The joystick and backlit buttons allow for more traditional control over the Datavideo KMU-300 4K Touch Screen Video Production Switcher’s screen selections.

6 Channels for Live switching

The six channel buttons incorporated into the lower right corner allow easy access to each region of interest, including two allocated for full screen mode and computer output.

Additional HDMI Input with Loop Out

The additional HDMI input allows the option to show an additional camera angle or to connect a computer’s display-output to the Datavideo KMU-300 4K Touch Screen Video Production Switcher for presentation software.

The HDMI loop out allows for production directors to have direct monitoring of the presentation input. All HDMI inputs have built-in strain relief bars to make sure nothing is left to chance during your production, by reducing the chances of cables becoming unplugged

XLR, TRS, and RCA Combination Inputs

The internal audio mixer supports four audio channels and embedded audio sources

Stream Directly to YouTube or Facebook

The built-in H.264 encoder can instantly stream live to get your content online.

Live-Streaming Vertical or Horizontal Video

The Datavideo KMU-300 4K Touch Screen Video Production Switcher has a built-in encoder enabling it to stream to any compatible CDN in traditional 16×9 format or 9×16 portrait mode.

Vertical Solution Book

Learn how to use the Datavideo KMU-300 4K Touch Screen Video Production Switcher to produce live streams in vertical format. Check out the e-book.

In the Box

1x KMU-300 Main Unit

1x AD Switch DC 12V with AC Cord

Video Standard: UHD & HD

Video Format:

Input:

3840x2160p 23.98/24/25/29.97/30/50/59.94/60

1080p 50/59.94/60

Output:

1080p 50/59.94/60

720p 50/59.94/60

Video Processing: 4:4:4/4:2:2/4:2:0

Video Input

1x HDMI 2.0

1x HDMI 1.4 with Loop through

Video Output: 2x HDMI 1.4

Support Video Output Resolution

1920 x1080p 50/59.94/60

1280 x720p 50/59.94/60

Streaming Encode: H.264/AVC, Main/High Profile

Streaming Video Bitrate

Record Only: Up to 16Mbps (1080p50/60)

Stream Only: Up to 10Mbps (1080p50/60), dual stream

Record+Stream: 36Mbps (1080p50/60)

Streaming Video Rate Mode: CBR

Streaming Audio Mode: Stereo/Mono

Streaming Audio Bitrate

Stereo: 64~384Kbps

Mono: 32~192Kbps

Streaming Protocols

TS over TCP/UDP (unicast & multicast)

RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming)

RTMP/RTMPS (Publish)

HLS

SRT

Network Interface: 1x RJ45 (10/100Mbps Ethernet)

Recording Storage Medium: SD Card

Recording Storage File System: MP4

Built-in Audio Mixer: Yes, 4 channels

Audio Input

2x XLR(Mic)

2x RCA

Audio Output: 2x Unbalanced RCA

Preview Display: 14″ Capacitive Touch LCD

Dimension (LxWxH): 17.24 x13.03 x4.48 Inches

Weight: 9.47 Lbs

Power Supply: DC 12V, 52W

Operating Temp. Range: 32~104°F
