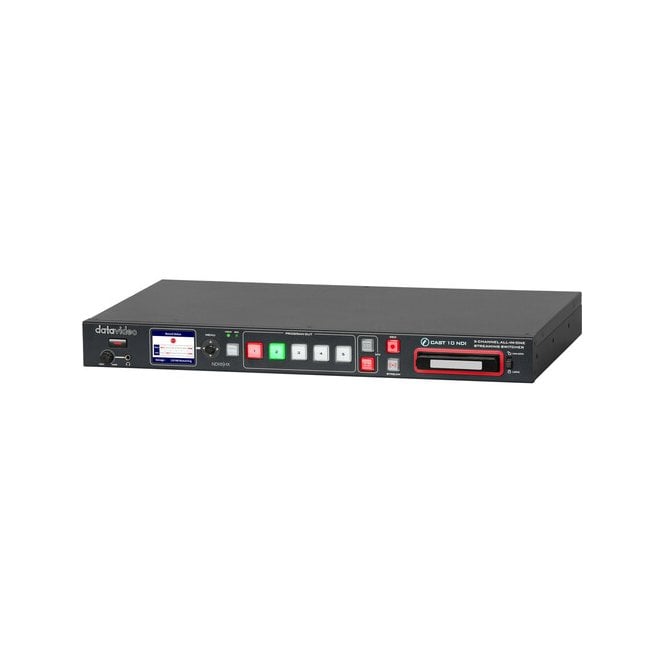

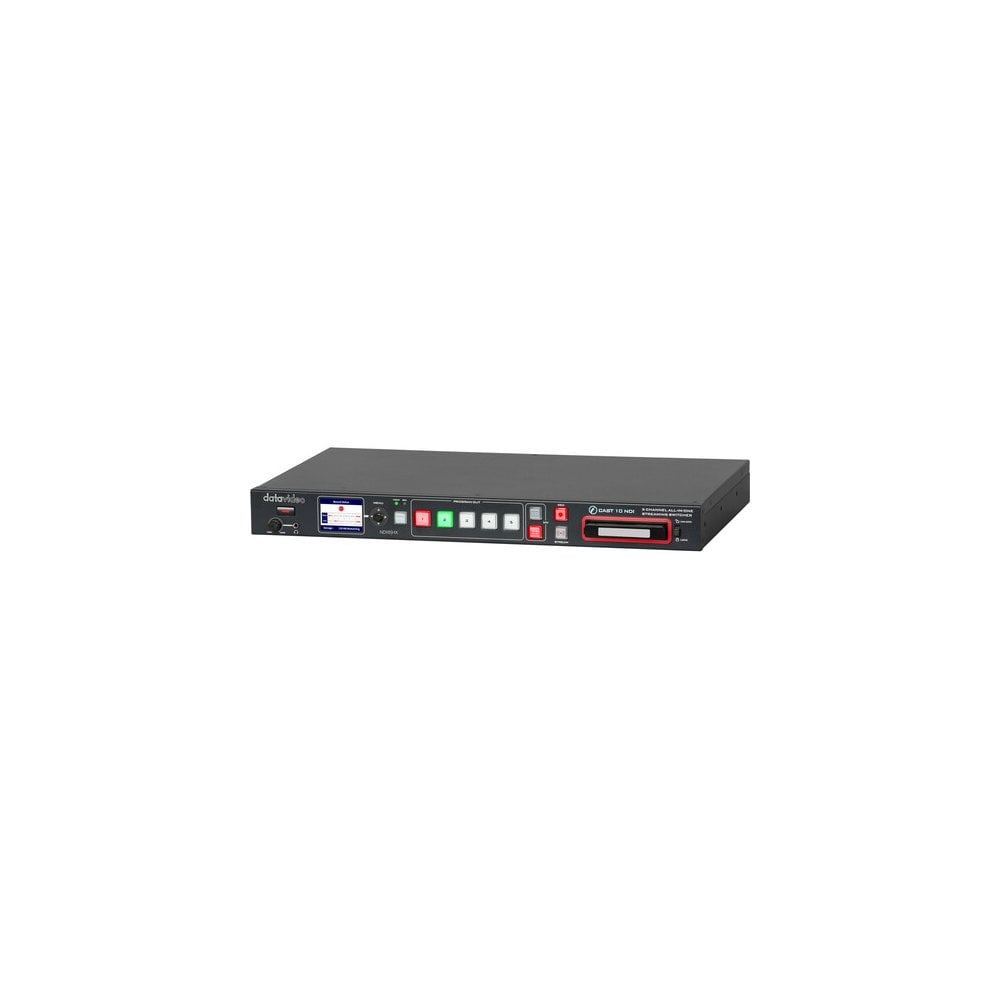

Datavideo iCAST 10NDI 5-Channel Streaming Switcher 1RU

Datavideo iCAST 10NDI 5-Channel Streaming Switcher 1RU(DATA-ICAST10NDI)

PRODUCE HYBRID EVENTS USING AN ALL-IN-ONE SWITCHER

The Datavideo iCAST 10NDI is a professional 5-channel all-in-one streaming switcher designed for hybrid events, live streaming, education, conferencing, houses of worship and professional AV production workflows.

Combining a video switcher, streaming encoder, camera controller and recorder in a compact 1RU rackmount design, the iCAST 10NDI supports HDMI, SDI, USB and NDI video sources for flexible multi-camera production environments.

The iCAST 10NDI supports up to 3 NDI® channels, multi-platform streaming, ISO recording, PTZ camera control and vertical video workflows, making it ideal for classrooms, lecture capture, hybrid conferences, esports production and corporate streaming applications.

With built-in streaming encoder functionality, SSD recording and support for RTMP, SRT and RTSP protocols, the iCAST 10NDI delivers a complete live production solution for modern streaming and broadcast environments.

Video Standard HD & SD

Video Format Input-

1080p60/59.94/50,

1080p30/29.97/25/24/23.98

1080i60/59.94/50

720p60/59.94/50

480i59.94, 576i50

Output-

1080p60/59.94/50→1080p60/59.94/50

1080p30/29.97/25/24/23.98→1080p30/29.97/25/24/23.98

1080i60/59.94/50→1080p30/29.97/25

720p60/59.94/50→720p60/59.94/50

480i59.94, 576i50→480p29.97, 576p25

(not supporting interlace)

Input Routable / Crosspoint N/A

Video Input 3G/HD/SD-SDI x1 (BNC 75 ohm)

HDMI 1.4 x4

(Channel 1 as SDI/HDMI selectable)

USB 3.0 x1

Mix HD & SD Source Yes

Computer Graphic Interface 4 via HDMI

Video Output 3G/HD/SD-SDI loop-through x1

HDMI 1.4 x1 (PGM)

HDMI 1.4 x1 (Multiview)

RJ-45 female x2 (10/100/1000M Ethernet) (LAN & WAN)

Down-converted Output 1080p output

Built-in Multi-view Monitoring Out HDMI x1

Analogue Audio Input XLR Balanced audio x2

RCA Unbalanced audio x 1 pair

SDI embedded audio

HDMI embedded audio

IP Audio (RTSP AAC-ADTS, PCM)

(External and embedded audio mixable)

Analogue Audio Output 3.5mm x1 (headphone, PGM audio monitoring)

Audio Delay Calibration Each channel delay time: 0-3000ms

Chromakey N/A

Title Creator Web GUI

USK N/A

DSK N/A

Picture in Picture Yes (PGM)

Logo Insertion Yes

Still Store N/A

Effects Cut

Transition Preview N/A

Sync / Reference In/Out N/A

Tally Output N/A

PC Remote Control Web UI for system configuration and control

Serial Port Control: RS-232 (RJ-45)

Camera Control N/A

Built-in Audio Mixer Yes

Storage SATA (6Gb/s)

Recording File System FAT, NTFS, exFAT

Recording File Format MP4

Video Encode H.264

Audio Encode AAC-LC

Sample rate: 48KHz, 16bit

AAC-LC

Sample rate: 48KHz, 16bit

Configurable bit rate: 128K or 256K or 384K

Streaming Protocol l DHCP client

l TS over UDP (unicast & multicast)

l RTSP over HTTP/TCP/UDP

l RTMP (Publish)/RTMPS

l HLS

l SRT Caller and Listener

l Web RTC (encode/decode)

l NDI Hx

Firmware Update Web UI (network)

Special Features Vertical video: crop or rotate

Vertical video Multiview

Chassis 1RU rack-mount mainframe

Dimension (LxWxH) 440 x 284 x 44mm

Weight 2.9 kg

Power DC 12V 24W

Operating Temp. Range 0~40 °C

In the Box

1 x iCast 10NDI main unit

1 x DC 12V Power Adaptor

2 x 1U Rack Mount Ear

6 x M4 Screws for Rack Mount Ear

1 x 2.5in Removable HDD/SSD Enclosure

4 x Screws for 2.5 Removable HDD/SSD Enclosure

1 x Blank Label

1 x SATA to USB 3.0 Cable
