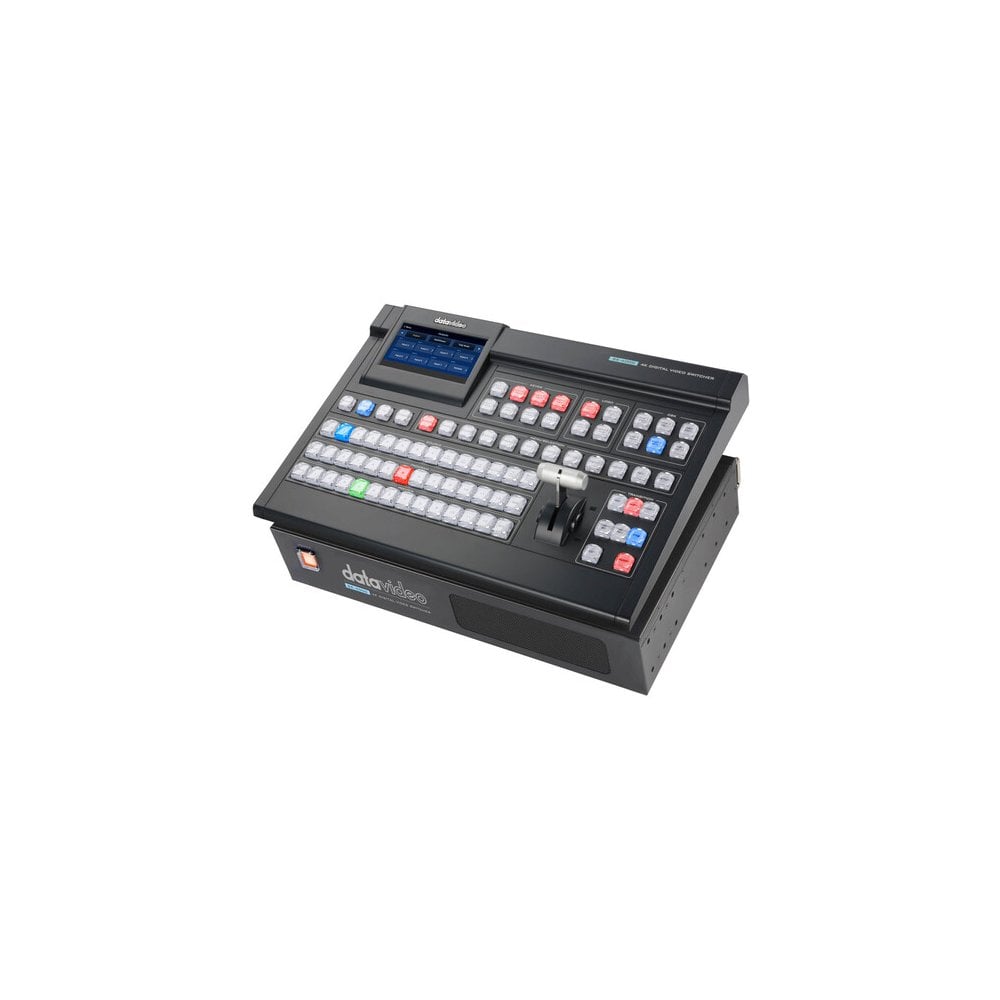

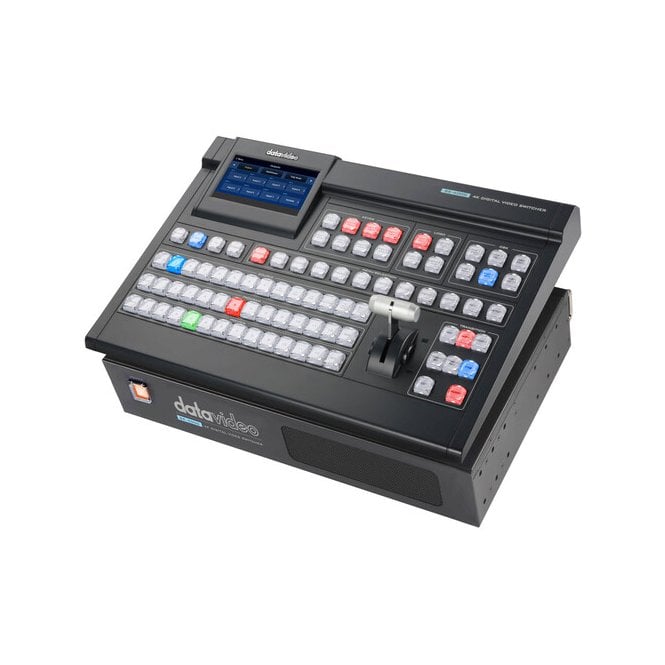

Datavideo SE-4000 12-Channel UHD Digital Video Switcher

Datavideo SE-4000 12-Channel UHD Digital Video Switcher(DATA-SE4000)

Complete and compact 8 inputs 4K production switcher

The SE-4000 is an 8-input live production switcher, which supports real 4K60/50P video resolution, with variety of video inputs and outputs, including 12G-SDI and HDMI 2.0 interface, help you produce a sophisticated and professional live event.

With User friendly interface on 5-inch LCD touch panel, it is very easy to operate and setup. The SE-4000 switcher also has powerful, easy-to-use effects, such as Chroma Key, Luma Key, DSK, PIP, DVE, Wipe Generator, still stores, and logo insertion.

Crosspoint assignment (XPT) grants you the option of rerouting each physical input and output to any of the available buttons.

Designed for Easy Installation

SE-4000's base unit can be easily mounted into a standard 19" rack. The power button on the front panel makes it easy to turn on and off the switcher.

Feature of 5" Touchscreen Display

The SE-4000 is Datavideo 4K switcher with 4K support on every input. Additionally, it has a 5" LCD touch panel to adjust all the setting without any laptop or app needed.

The SE-4000 is designed for large scale event production.  The switcher equips with intuitive and reliable physical buttons.

True 12G 4K 50/60 video production switcher

Support UHD 4K60/50p signals on inputs and outputs. It also has built-in input scaler, for up conversion on each available input.

Create stunning video effects with advanced features

SE-4000's main unit can be easily mounted into a standard 19" rack. The power button on the front panel makes it easy to turn on and off the switcher. Moreover, SE-4000 has DVIP remote control interface, Datavideo DVIP provides an easy way of system integration of Datavideo’s full range of devices.

Built-in Stinger Transitions and backgrounds

Choose from a variety of pre-saved animated stinger transitions and virtual set backgrounds to create advanced effects, and you can also import your own Stinger Transitions & Animated Logos.

Integrated 5" Touchscreen Display: One touch one function

With the 5" touchscreen panel built-in, you will not need a laptop or app to assist your live production.

With many functions built-in, including user memory with customized icon, Transition animation set up, Chroma key, Luma Key, DSK, PIP, DVE, Wipe Generator, still stores, and logo insertion; these can all be done on the 5" LCD touchscreen.

Flexible choice of video signal

With 12 video inputs, select 8 video signals for flexible use to switcher. Variety of video and audio inputs and outputs, 7 outputs with AUX assignment.

Create stunning video effects with advanced features in SE-4000 switcher

SE-4000 switcher advanced features include 2x PIPs, 4x upstream keyers for chromakey, linear and luma keys as well as picture-in-picture, 2x DSKs, and 2x independent Animated logos, Stinger Transitions and a 2D Transition DVE.

Picture-In-Picture frames with unique 3D borders

Create 2 picture-in-picture frames that can be active at the same time. Picture-in-picture frames are fully adjustable in size and position and have various border options including our unique 3D borders.

SE-4000 switcher has 4 Chromakeyer for a complete virtual studio experience

Up to 4 channels of switchable chromakey with our unique “Key tie” functionality. Create a complete 4 channel virtual studio and enjoy our super easy to use automatic chromakey functions.

Variety of video and audio input/output

Crosspoint assignment (XPT) grants you the option of rerouting each physical in and output to any of the available buttons. No more ducking under the table for quick rerouting!

Professional Switcher for Studio and Outdoor Broadcast Van

The SE-4000 is a versatile solution with the main unit mountable in the 19 inch rack. The control keyboard panel can be placed on a flat surface or built inside an outdoor broadcast van.

SE-4000 uses DC 12V power;  it requires small power consumption and perfect for OB Van.

Plug-and-Play

There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.

Video Standard 4K & HD

Video Format Input:3840x2160p: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50, 720p: 60/59.94/50

VGA, XGA (1024 x 768), SXGA (1280 x 1024),

UXGA (1600 x1200), WUXGA (1920 x 1200)

Output:3840x2160p: 60/59.94/50/30/29.97/25/24/23.98

1080p: 60/59.94/50/30/29.97/25/24/23.98

1080i: 60/59.94/50, 720p: 60/59.94/50

Video Processing SDI: 4:2:2 10-bit

HDMI: YUV 4:2:2 10-bit, RGB: 4:4:4 8/10-bit

Input Routable / Crosspoint YES

Video Input Total 8 live inputs (select 8 from 12)

8 x 12G-SDI

4 x HDMI

Mix HD & SD Source ----

Computer Graphic Interface 4 via HDMI

Video Output 4 x 12G-SDI

3 x HDMI

All assignable: Multiview, PGM, PVW, PGM+DSK, Clean PGM, Clean PVW, Input 1-12

Down-converted Output ----

Built-in Multi-view Monitoring Out HDMI & SDI assignable

Analogue Audio Input 4 x Analogue XLR

Analogue Audio Output 2 x Analogue XLR

Digital Embedded Audio Support Input 4 channels, Output 4 channels

Audio Delay Calibration Up to 16 fields or 8 frames per channel

A+V Switching Yes

Chromakey 4

Title Creator Yes, CG-200 software free download

USK 4x Keyer support Chromakey/ Linear/ Luma Key

DSK 2x DSK support Lumakey & Linear key (Key / Fill)

Picture in Picture 2

Logo Insertion 2

Still Store 999+

Effects DVE, FTB, Cut, 32 Wipe with border

Transition Preview Full transitions preview

Sync / Reference In/Out Built-in Genlock

Support external sync with loop thru

Tally Output 1x D-sub 25pin, dual color

PC Remote Control DVIP (Ethernet)

Camera Control ----

Built-in Audio Mixer ----

Storage ----

Recording File System ----

Recording File Format ----

Video Encode ----

Audio Encode ----

Streaming Protocol ----

Firmware Update Ethernet

Special Features 5" Touchscreen Display

Chassis 2 units, 2RU rack-mount mainframe

Dimension (LxWxH) 433 x 312 x 76 mm (switcher)

432 x 252 x 88 mm (main unit)

Weight 7.1 kg

Power DC 12V, 108W

Operating Temp. Range 0~40 °C

In the Box

1 x SE-4000 Main Unit

1 x SE-4000 Control Board

2 x AD Switch DC 12V

2 x AC Cord

1 x Ethernet Cable

12 x Screw

2 x 2U Ear Rack
