Datavideo TPC-700P Touchscreen Controller for SE-3200 HS-3200

Datavideo TPC-700P Touchscreen Controller for SE-3200 HS-3200(DATA-TPC700P)

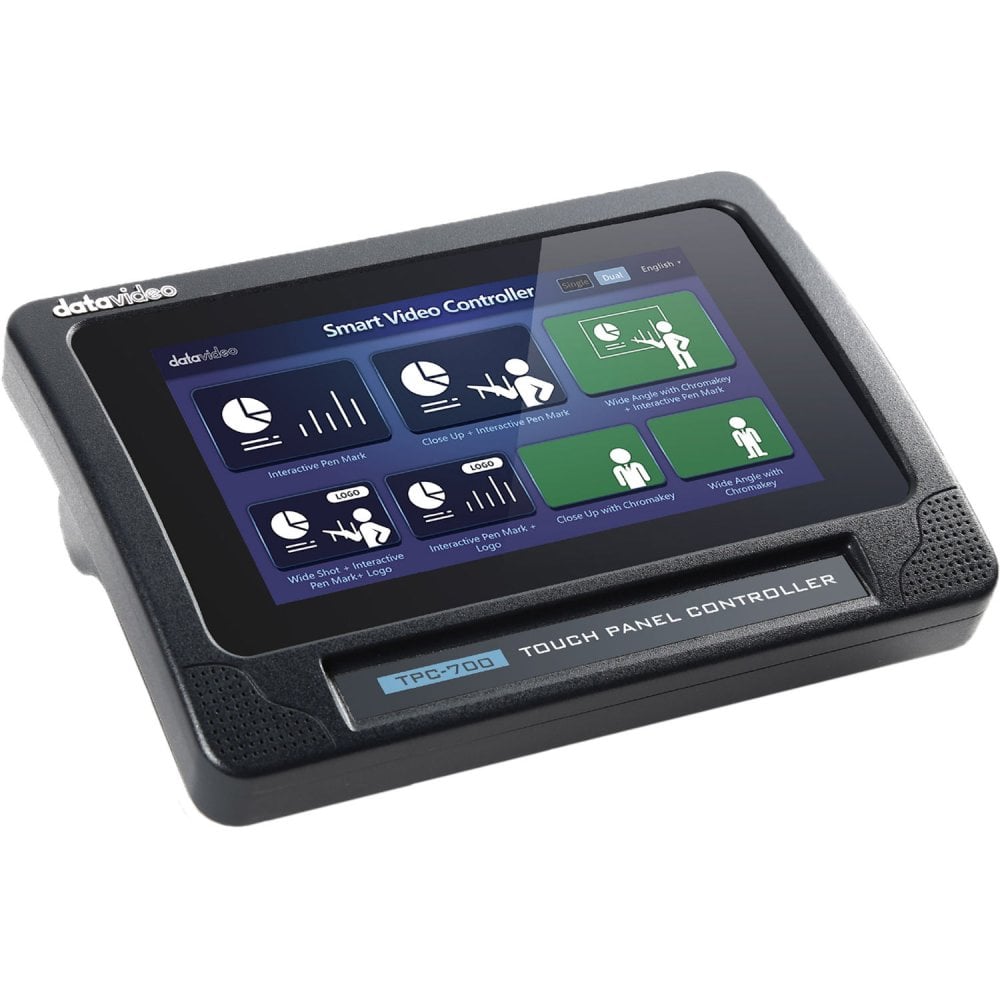

The 7" Touch Panel Controller for the HS/SE-3200 and VGB-2000 from Datavideo provides you with a touch-panel interface for working with all Datavideo 3200 and VGB-2000 switchers. Simply connect this 800 x 480 resolution touchscreen to a compatible switcher, and it allows you to customize the switcher's keys. You can use the TPC-700 as a multi-camera virtual switching studio controlling a compatible switcher.

The TCP-700 supports both RS-232 and DVIP protocols, and it has a dedicated RJ45 port for each protocol. Connect to the HS/SE-3200 series of switchers using DVIP, and use the RS-232 port for connecting to the VGB-2000. The touch panel can be wall mounted, and it has both 75 x 75mm and 100 x 100mm VESA mounting patterns for mounting.

Built-In HS/SE-3200 App Interface

The TPC-700 comes with a pre-installed control App for the HS/SE-3200 switcher. This appears as selectable tabs for Virtual Studio, AUX, Cross-Point, Flex Source, PIP, and Setup. Paging through these tabs and their contents lets you easily setup and control your SE-3200 switcher from the touchpad.

Pre-Saved Virtual Scenes wth SE-3200 and TPC-700

The TPC-700 will recall the No. 101~No. 108 virtual scens that are pre-saved on the SE3200.

Touch Screen Size: 7"

Type: Capacitive

Resolutions: 800 x 480

Control Protocol RS-232

Connectors RS-232: 1 x RJ45

DVIP: 1 x RJ45

Firmware and Software Update: 1 x USB 2.0 Type-A

Mounting VESA

75 x 75mm

100 x 100mm

Operating Temperature 32 to 104°F / 0 to 40°C

Power Voltage: 12 VDC

Consumption: 10 W

Connector: Coaxial

Dimensions 8.66 x 5.98 x 3.11" / 22 x 15.2 x 7.9 cm

Weight 1.87 lb / 0.85 kg

Packaging Info

Package Weight 3.65 lb

Box Dimensions (LxWxH) 12.5 x 10.5 x 6.8"

In the Box

Datavideo 7" Touch Panel Controller for the HS/SE-3200 and VGB-2000

Power Supply
