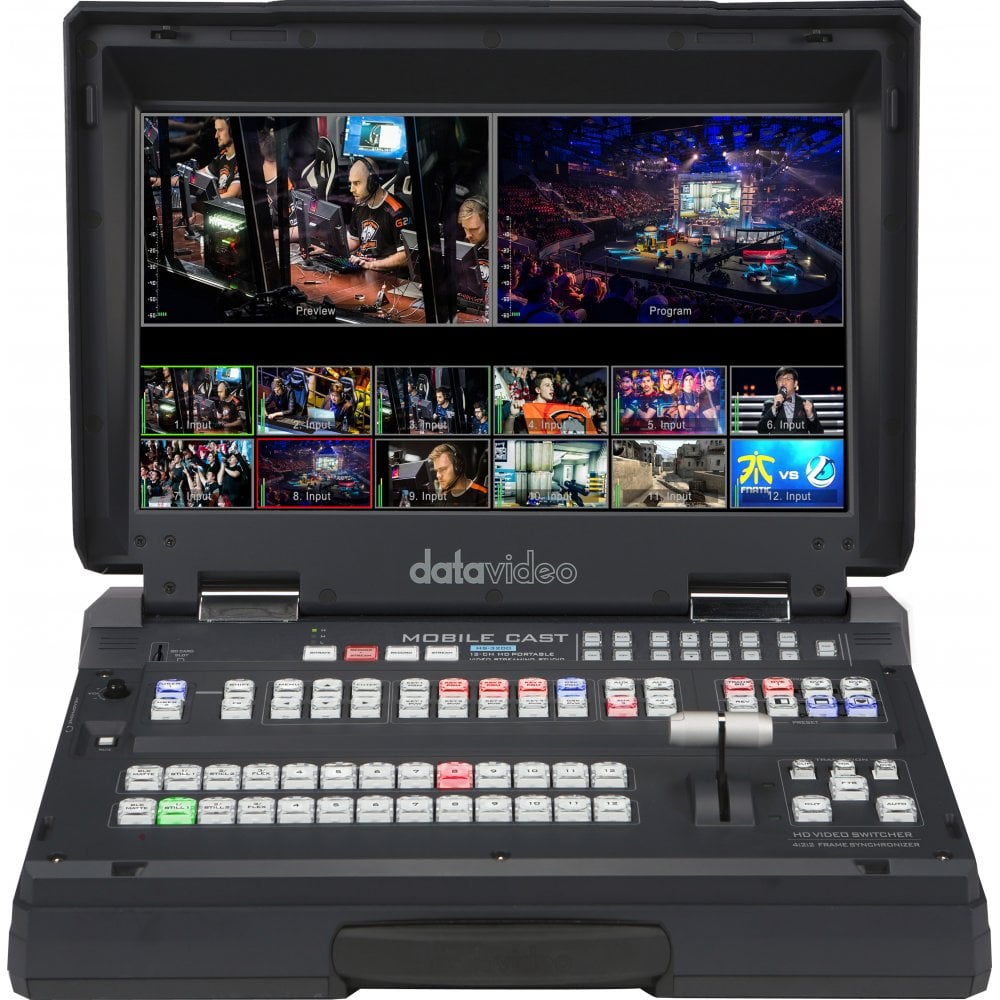

Datavideo DATA-HS3200 12-Channel HD Portable Video Streaming Studio

code: DATA-HS3200
  • £5,717.00
  • RRP: £6,995.00
Status | Usually dispatched within 24 hours
Loading...

Features

  • Simultaneous Live HD Streaming & Recording
  • Support different bitrate for recording and streaming
  • 4 Upstream Keyers, supporting Chroma key & Linear / Luma key
  • 8 PIP (4 flex source included)
  • 2 DSK, supporting Linear & Luma Key Modes
  • 2 Logo insertion (Animation logo, X/Y size)
  • Wipe, Mix, DVE, Cut and Stinger Transitions
  • 32 Wipe patterns including Circle & Heart, and Borders & Softness Control
  • Clip player (150 Frames) Stinger Transitions function
  • Any Input (1-12) can be used as a Frame store (Stills Store)
  • Support XPT (Cross Point Assignment)
  • Tally output
  • USB Port for FW upgrade
  • One 17.3-inch with a resolution of 1920x1080

Datavideo DATA-HS3200 (DATAHS3200, DATA HS3200, DATA/HS3200, HS3200) 12-Channel HD Portable Video Streaming Studio.

HS-3200 is a 12 channel professional mobile hand carry switcher with 1080p/60 (3G) HD support. It features easy-to-use video streaming and recording for video producers who need to simultaneously stream a live event and record the master quality version for post-event editing.

HS-3200 is a lightweight, portable and powerful featured mobile studio solution which is designed for live events and live programming that need to mix a variety of video and audio sources. HS-3200 is also a great value solution for the worship, education and AV market.

HS-3200 also has powerful, easy to use effects including Chromakey, DSK, PIP, DVE, Wipe Generator, Still stores, logo insertion.

Advanced features include a 17.3-inch Full HD 1080p video monitor which displays the multi-view. The multi-view includes all the input sources, as well as preview and program.

  • Video Format: 1080p 50/59.94/60Hz | 50/59.94/60Hz | 720p 50/59.94/60Hz
  • Input Routable / Crosspoint: All 12, repeatable
  • Video Input: 8x 3G-SDI, 4x HDMI
  • Computer Graphic Interface: 4 via HDMI
  • Video output: 5x SDI assignable: PGM, PVW, PGM Clean & multiview, Input 1-12 | 4x HDMI (3x PGM + 1x assignable)
  • Audio input: 4x Balanced XLR | Audio output: 2x Balanced XLR
  • Embedded audio support: Input up to 16 channels, Output 4 channels
  • Audio Delay Calibration: Up to 16 frames
  • Picture in Picture: 4 | Logo Insertion: 2
  • Streaming Video Encode: H.264 / AVC, Main/ High Profile Configurable Bit-rate up to 10Mbps
  • Streaming Audio Encode: AAC-LC Configurable bit rate range from 32Kbps to 384Kbps | Sample rate: 48KHz, 16bit
  • Streaming Protocol: TS over TCP/UDP (unicast & multicast) | RTSP over HTTP/TCP/UDP (RTSP Elementary Streaming) | RTMP (Publish)
  • Streaming Control: Web browser UI for configuration and control Socket commands
  • Recording file system: FAT, exFAT, NTFS | Recording file format: MP4
  • Recording Setting Control: Web UI for system configuration and control
  • Dimension (LxWxH): 455 x 355 x 134 mm
  • Weight: 18.7 Lbs (8.5 Kg)

In The Box

  • 1 x HS-3200
  • 1 x AD switch DC 12V with AC Cord
Be the first to review Datavideo DATA-HS3200 12-Channel HD Portable Video Streaming Studio. Write a review ›
