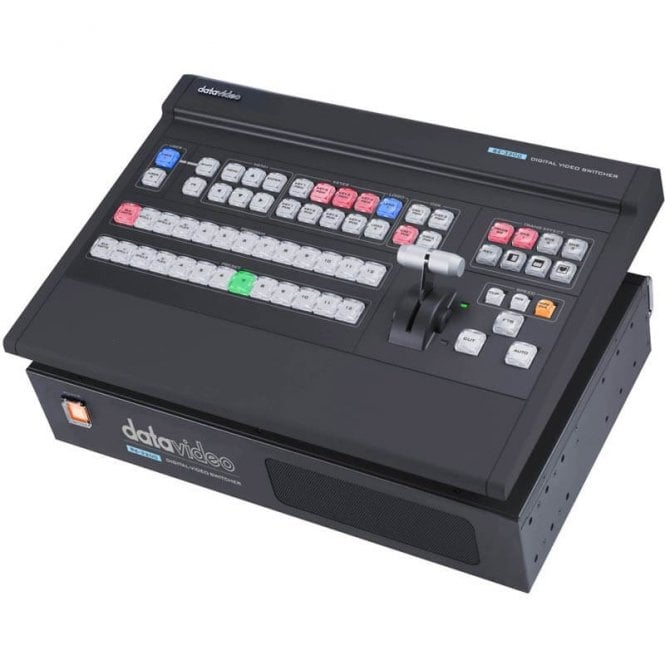

Datavideo DATA-SE3200 12-Channel HD Digital Video Switcher

code: DATA-SE3200

5407,39 €
Secure yours with a deposit of
RRP: 6437,37 €
|
|

Status | Usually dispatched within 24 hours

Add to Compare

Features

12 Video Input Channels: 8 x SDI and 4 x HDMI
9 Video Output Channels: 6 x SDI and 3 x HDMI
4 Upstream Keys for chromakey, linear and luma keys as well as picture-in-picture
8 Picture-in-Picture (4 flex source included), with configurable ratio, position and size
2 Downstream Keyers for linear and luma keys
2 static or animated logos with configurable position and size
WIPE, MIX, DVE and CUT transitions
32 WIPE patterns such as circle and heart with adjustable border width and color softness
Supports stinger transition for live sports broadcast
Any input (1-12) can be used as a frame store
Supports XPT (Cross Point Assignment)
4 XLR analogue audio input channels with each channel carrying four audio tracks
2 XLR de-embedded analogue audio output channels
Dual color (red/green) tally outputs
Supports Tri-Level and Black Burst sync reference
2 readily available user memory presets

Description
Specification
Included In Box
Reviews
(0)

Datavideo DATA-SE3200 (DATA_SE3200, DATA/SE3200, DATA SE3200) 12-Channel HD Digital Video Switcher

The SE-3200 is a professional 12-channel, 1080p video switcher that provides powerful and easy-to-use video effects such as four upstream keyers for Chromakey and Luma Key, dual DSK, PIP, and WIPE transitions. There are also other features like frame store, animated transition effects, multi-channel inputs, and abundant visual effects. The built-in subtitle generation system can be paired with Datavideo’s CG software to instantly create broadcast quality subtitles.

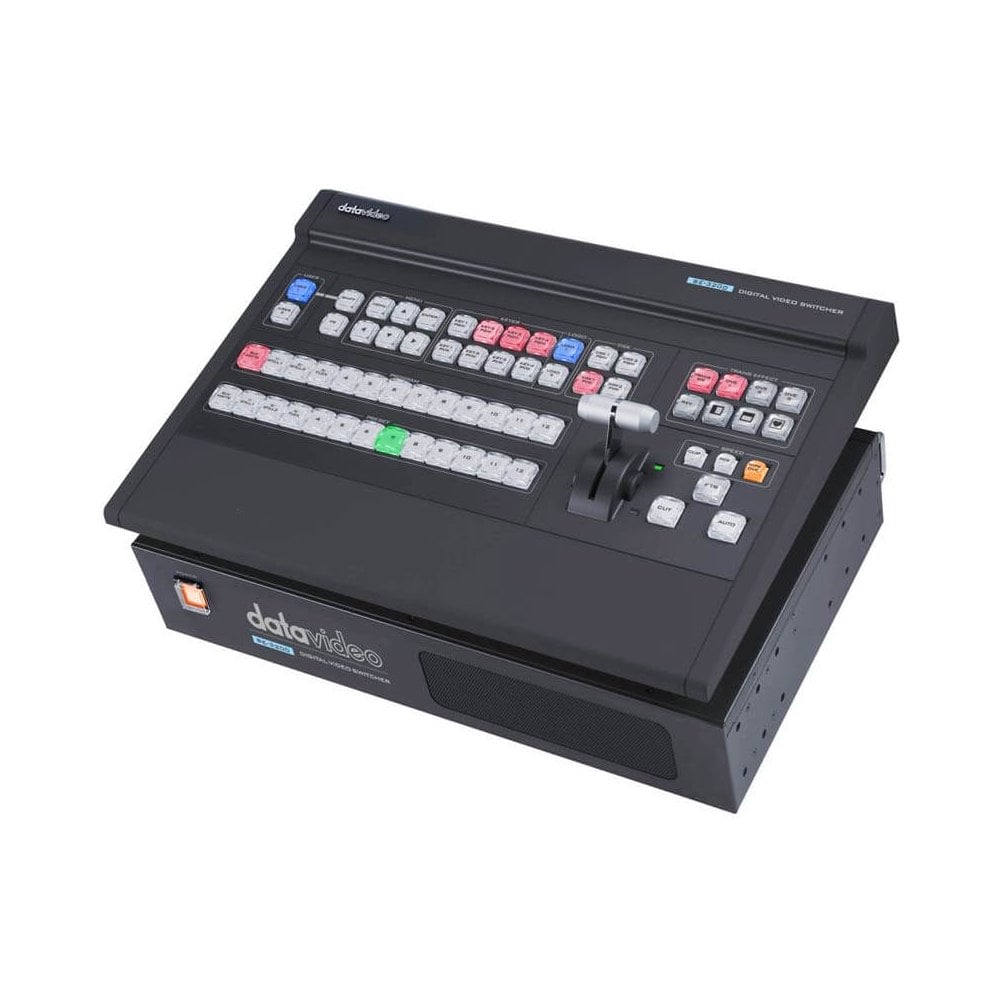

The SE-3200’s modular design allows you to install the 2U main unit on a standard 19-inch rack and place the control panel on a flat work bench, or it can be installed in an outdoor broadcast van. The SE-3200 facilitates video switching, whether indoor or outdoor.

Video Standard: HD
Video Format: 1080p 50/59.94/60Hz | 1080i 50/59.94/60Hz | 720p 50/59.94/60Hz | 576i 50Hz | 480i 59.94Hz
Video Processing: SDI: 4:2:2 | HDMI: YUV 4:2:2, RGB: 4:4:4
Input Routable / Crosspoint: All 12, repeatable
Video Input: 8x SDI, 4x HDMI
Mix HD & SD source: Selectable HD or SD
Computer Graphic Interface: 4 via HDMI
Video output: 6x SDI Outputs assignable: AUX 1-4, PGM, PVW, PGM Clean & multi-view | 3x HDMI assignable: PGM & multi-view
Down-converted output: N/A
Built-in Multi-view monitoring out: HDMI
Audio input: 4x Balanced XLR
Audio output: 2x Balanced XLR
Embedded audio support: embedded 4-CH audio output
Audio Delay Calibration: up to 16 fields or 8 frames per channel
A+V switching: Yes
Chromakey: 4
Title Creator: Yes
USK: 4x USK support Chromakey & Linear/ Luma Key
DSK: 2x DSK support Lumakey & Linear key (Key / Fill)
Picture in Picture: 4
Logo Insertion: 2
Still Store: 500+
Effects: DVE, FTB, Cut, 32 Wipe with border
Transition Preview: Full transitions preview
Sync / Reference In/Out: Built-in Genlock, Support external sync with loop thru
Tally Output: 1x D-sub 25pin, dual color
PC Remote Control: Via Ethernet (free Window software) or RS-422 / RS-232
Built-in Audio Mixer: N/A
Special Features: 4 User Memory Preset | Stinger transition
Chassis: 2 units, 2RU rack-mount mainframe
Power: DC 12V

In the box

1 x SE-3200
1 x SE-3200 Control Board
2 x AD Switch DC 12V
1 x AC Cord
1 x DB9P to DB9P Cable
12 x Screws
2 x 2U Ear Rack
