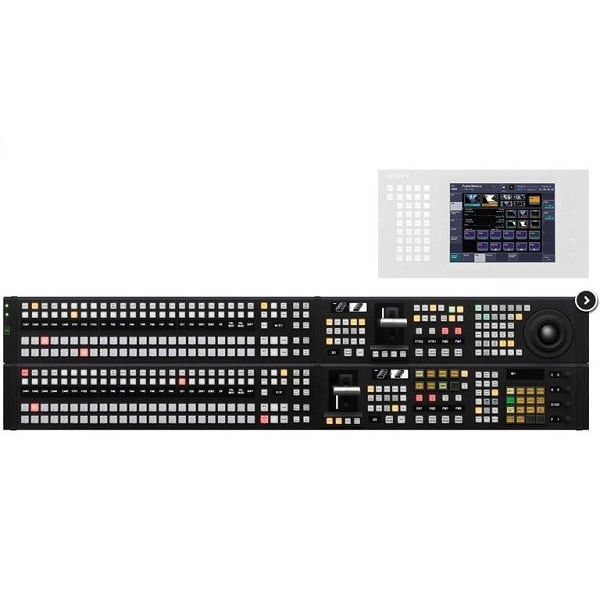

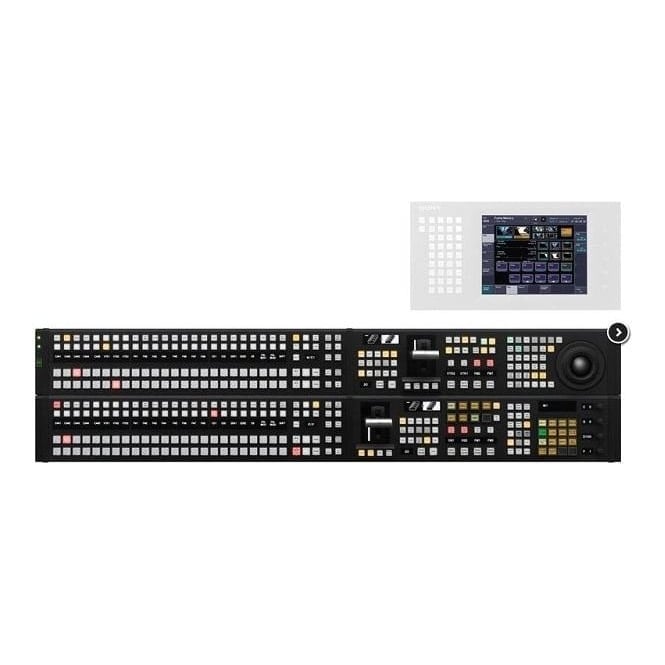

Sony 24-Button Control Panel for MVS-6520

Sony ICP-6520 (ICP6520, ICP/6520, icp-6520) (MVS/6520, MVS_6520) 24-Button Control Panel for MVS-6520

The ICP-6520 24-Button Control Panel from Sony is designed for the MVS-6520 switcher. It features 2 M/E rows, 24 cross-point colored buttons, OLED mnemonic displays for optimal visibility, and an intuitive menu operation (menu display sold separately).

• Compatibility: MVS-6520 switcher
• Connectors: RJ-45, 1000BaseT, USB type A, Device 1 to 4, 25-pin DVI-D output
• Operating Temperature: 41 to 104°F (5 to 40°C)
• Operating Humidity: 10 to 90%
• Storage Temperature: -4 to 140°F (-20 to 60°C)
• Power Requirements: 100 - 240 VAC, 10%, 50/60 Hz
• Current Consumption: Max 1.1 A
• Inrush Current: 44 A peak, 10 A rms (240 VAC)
• Dimensions: 45.4 x 10.4 x 7.1" (115.4 x 26.4 x 18.0 cm)
• Weight: 31.9 lb (14.5 kg)

In the box

• Sony ICP-6520 24-Button Control Panel for MVS-6520
