Sony 24-Button Control Panel for MVS-6530

Sony ICP-6530 (ICP6530, ICP/6530, icp-6530) (MVS/6530, MVS_6530) 24-Button Control Panel for MVS-6530

The ICP-6530 24-Button Control Panel from Sony is designed for the MVS-6530 switcher. It features 3 M/E rows, 24 cross-point coloured buttons, OLED mnemonic displays for optimal visibility, and an intuitive menu operation (menu display sold separately).

• Compatibility: MVS-6530 switcher

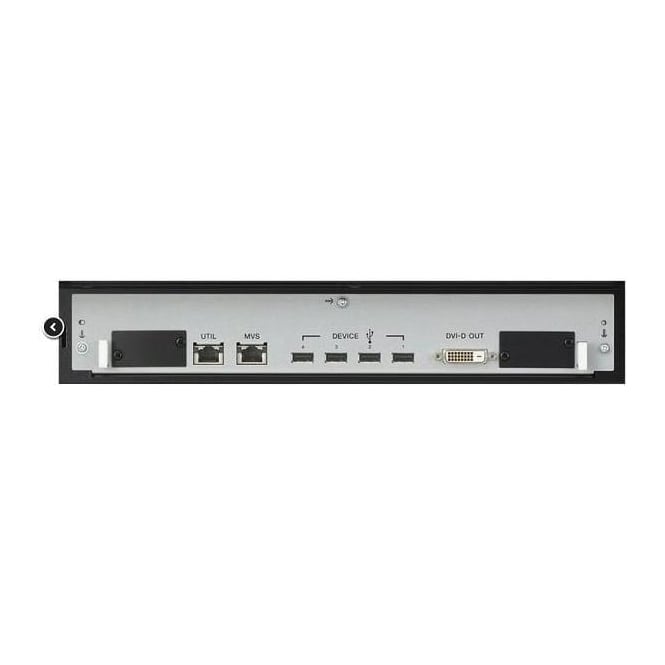

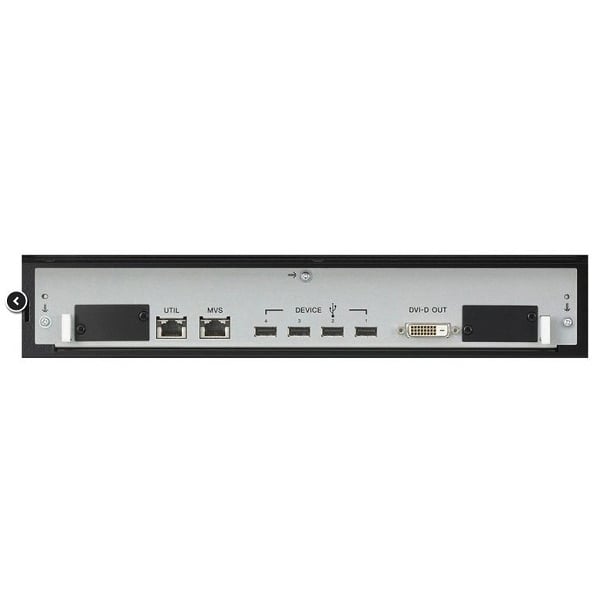

• Connectors: RJ-45, 1000BaseT, USB type A, Device 1 to 4, 25-pin DVI-D output
• Operating Temperature: 41 to 104°F (5 to 40°C)
• Operating Humidity: 10 to 90%
• Storage Temperature: -4 to 140°F (-20 to 60°C)
• Power Requirements: 100 - 240 VAC, 10%, 50/60 Hz
• Current Consumption: Max 1.1 A
• Inrush Current: 46 A peak, 11 A rms (240 VAC)
• Dimensions: 45.4 x 15.6 x 7.1" (115.4 x 39.6 x 18.0 cm)
• Weight: 44.1 lb (20 kg)

In the box

• Sony ICP-6530 24-Button Control Panel for MVS-6530
