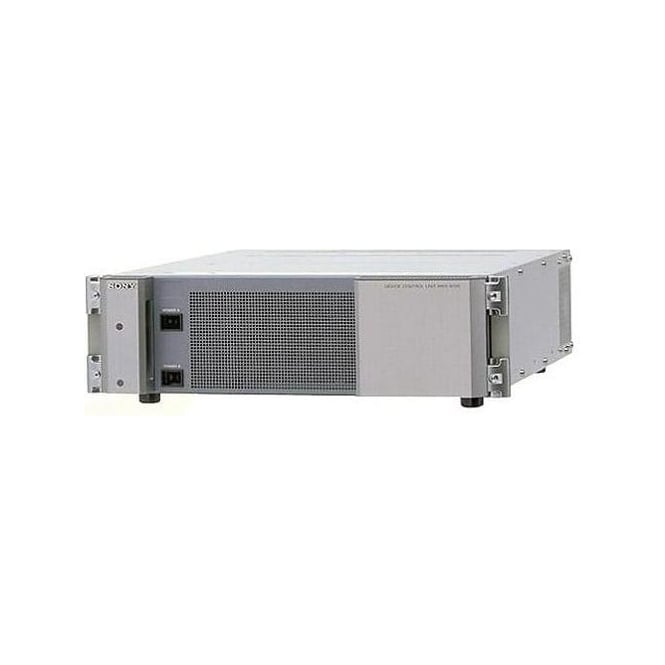

Sony Device Control Unit Processor for MVS-8000 Series

Sony MKS-8700 (MKS8700, MKS/8700, mks-8700) Device Control Unit Processor for MVS-8000 Series

The Sony Device Control Unit Processor is designed for MVS-8000 Multi-Format Switcher Processor. This chassis accepts plug-in boards to add tally, GPI and/or device control capabilities to an MVS-8000 system. Each MKS-8700 chassis can hold up to 15 Device Control Unit Option cards. Up to two MKS-8700 chassis may be connected to each control panel on an MVS-8000 system.

• Power Requirement: 100-240V AC +/- 10% 50/60Hz
• Power Consumption: Max. 250W
• Dimensions (wxhxd, without projection): 482 x 132 x 520mm (19 x 5 1/4 x 20 1/2 inches)
• Mass: 18Kg (39lb 10oz)
• Operation Temperature: +5C to +40C (+41F to +104F)
• Relative Humidity: Up to 90% (non-condensing)
• Reference Input: BNC connector x 2, Loop-through, HD Tri-Level Sync (HDTV only) or Analogue Black Burst or Sync
• System Interface: Peripheral LAN:Rj-45, 100BASE-TX, Serial Tally 1: D-sub 9-pin, RS-422A, Serial Tally 2: D-sub 9-pin, RS-422A

In the box

• Sony MKS-8700 Device Control Unit Processor
• Processor
• Backup Power Supply
