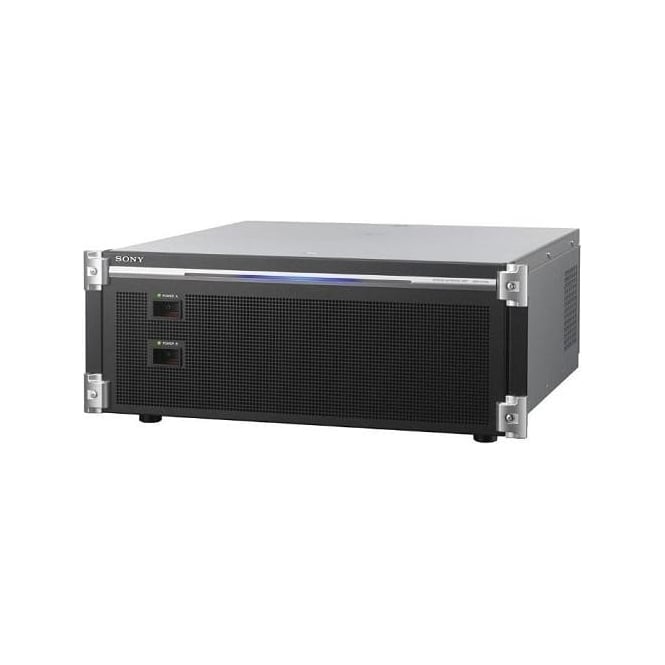

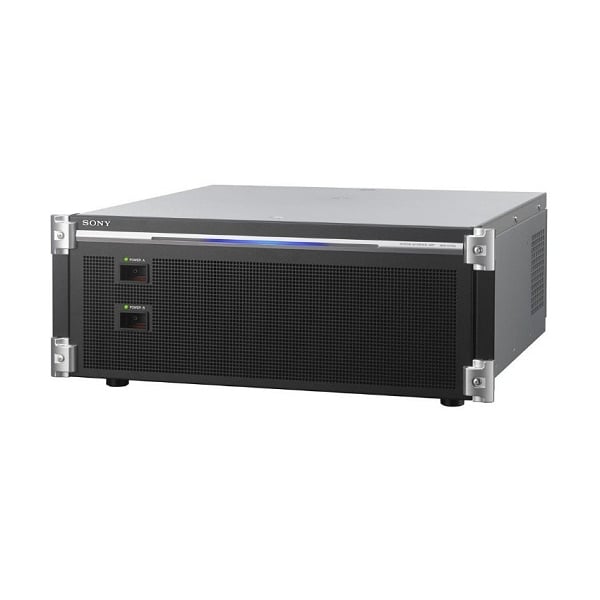

Sony System Interface Unit for ICP-X7000 Control Panel

Sony MKS-X7700 (MKSX7700, MKS/X7700, mks-x7700) System Interface Unit for ICP-X7000 Control Panel

It features serial tally and tally/GPI interfaces, along with a remote interface that supports various protocols. It also features six additional slots for adding more Tally/GPI outputs and serial remote interfaces.

Connections

• LAN: 1 x RJ45, 1000BASE-T (MVS LAN), 1 x RJ45, 1000BASE-T (UTIL LAN)
• Tally: Serial: 2 x 9-Pin D-Sub, RS-422A
• TALLY/GPI: 2 x 37-Pin D-Sub, TTL level inputs (34 each)
• Remote: 4 x 9-Pin D-Sub, RS-422A, various protocols
• Bus: 1 x BNC, S-Bus protocol
• Optional: Additional MKS-X7701 tally/GPI outputs and MKS-X7702 serial remote connection interface boards (a mixed configuration of four optional boards is available for six slots)

Power

• Power Requirement: 100 to 240 VAC ±10%, 50/60 Hz (power cord not included)
• Power Consumption: 0.5 to 1 A
• Inrush Current: Maximum 90 A (at peak) / 20 A rms (240 VAC)

General

• Operating Temperature: 41 to 104°F (5 to 40°C)
• Storage Temperature: -4 to 140°F (-20 to 60°C)
• Operating Humidity: 10 to 90% Non-condensing
• Dimensions (W x H x D): 19.0 x 7.0 x 19.3" (482 x 176 x 486 mm)
• Weight: 33.1 lb (15 kg) Fully loaded

In the box

• Sony MKS-X7700 System Interface Unit for ICP-X7000 Control Panel
