Sony System Interface Unit

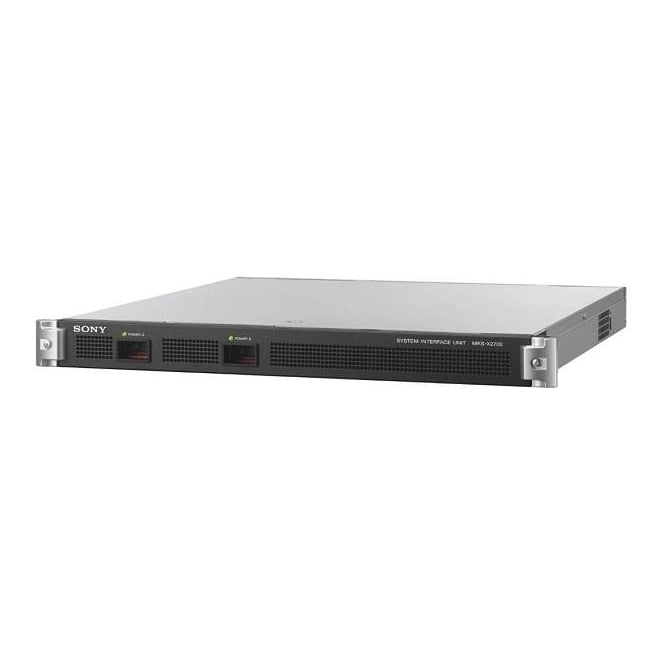

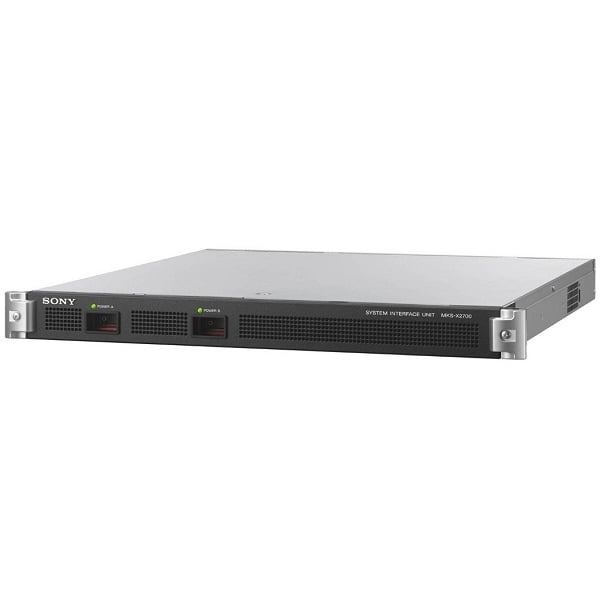

Sony MKS-X2700 (MKSX2700, MKS/X2700, mks-x2700) System Interface Unit

The Sony MKS-X2700 System Interface Unit is used in the ICP-X7000 Control Panel. It features serial tally and tally/GPI interfaces, along with a remote interface that supports various protocols.

Connections

• LAN: 1 x RJ45, 1000BASE-T (MVS LAN),1 x RJ45, 1000BASE-T (UTIL LAN)
• Tally: Serial: 2 x 9-Pin D-Sub, RS-422A
• TALLY/GPI: Inputs: 2 x 37-Pin D-Sub, TTL level inputs (34 each), Outputs: 2 x 37-Pin D-Sub, relay contact outputs (18 each)
• Remote: 6 x 9-Pin D-Sub, RS-422A, various protocols
• Bus: 1 x BNC, S-Bus protocol

Power

• Power Requirement: 100 to 240 VAC ±10%, 50/60 Hz (power cord not included)
• Power Consumption: 0.5 to 0.7 A
• Inrush Current: Maximum 85 A (at peak) / 20 A rms (240 VAC)

General

• Operating Temperature: 41 to 104°F (5 to 40°C)
• Storage Temperature: -4 to 140°F (-20 to 60°C)
• Operating Humidity: 10 to 90% Non-condensing
• Dimensions (W x H x D): 19.0 x 1.8 x 20.5" (482 x 44 x 520 mm)
• Weight: 17.6 lb (8 kg)

In the box

• Sony MKS-X2700 System Interface Unit
