Each configured Voyager transmitter and receiver is also compatible with all Voyager Series matrix switchers. The VG-Matrix 160x delivers a modular and scalable full crosspoint matrix switching platform which can be field configured in increments of 8 inputs and/or outputs up to a maximum of 160x160.
Fiber I/O cards connect seamlessly to the fiber inputs or outputs of Voyager transmitters and receivers delivering matrix switching and long distance extension in one platform.
Fully populated, a 160x Voyager VG-Matrix operates as a 160x160 in simplex mode. In duplex mode, which supports two-way RS-232 and HDCP, the switch can operate as 1x159, 2x158, 159x1, 158x2, or any possible combination in between, thanks to Magenta's Flex I/O technology.

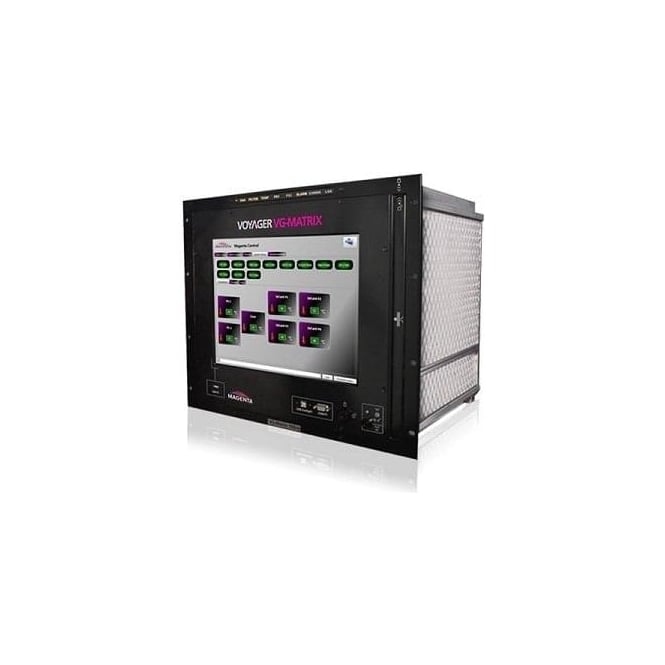

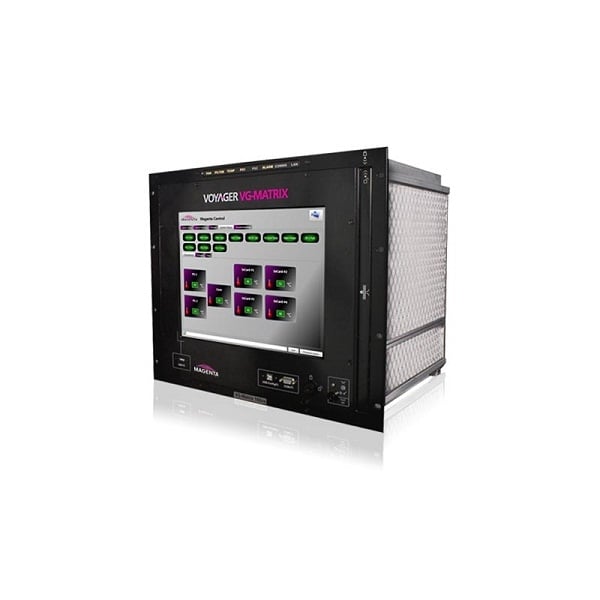

An optional, integrated touch-screen controller can also be factory installed (as pictured above) in a VG-Matrix 160x for additional ease of use. The switch can also be controlled via Magenta's proprietary MaGUI software from a PC using an RS-232 port.
Features:
Full-matrix crosspoint switching with Fiber I/O or Fiber I/O with HDCP
Modular & scalable from 8x8 to 160x1601
Switching and fiber extension in one platform
FiberMAX Engine for high-bandwidth multi-signal transmission from source to display over fiber
Uncompressed multi-format digital & analog video at 1920x1200 (HDMI, DVI, VGA, YUV, Y/C, Composite) determined by connected VG-TX, VG-RX
Multi-format audio and RS-2322 determined by connected VG-TX, VG-RX
Auto format conversion between video & audio signal types
Distance range of up to 18.75MI/30KM3 determined on input and output
Mixed singlemode and multimode fiber support4
Advanced EDID management and full HDCP compliance
Dual redundant, hot swappable power supplies with dual AC inputs
Optional touch screen control panel
Hot plug support
Magenta quality and reliability for 24/7 operation
