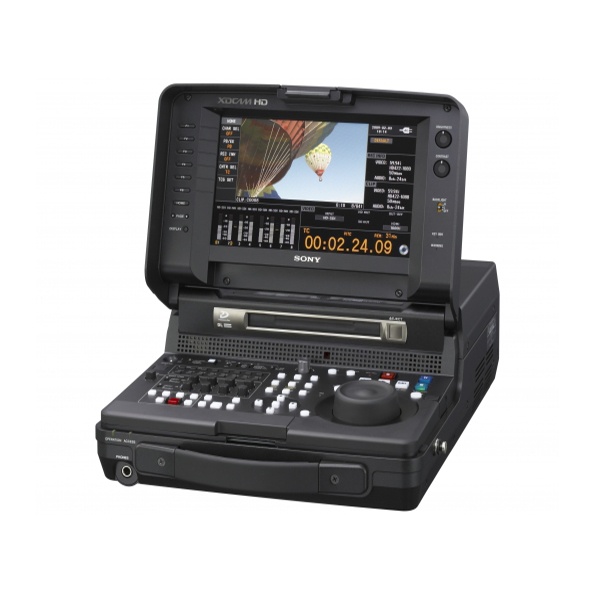

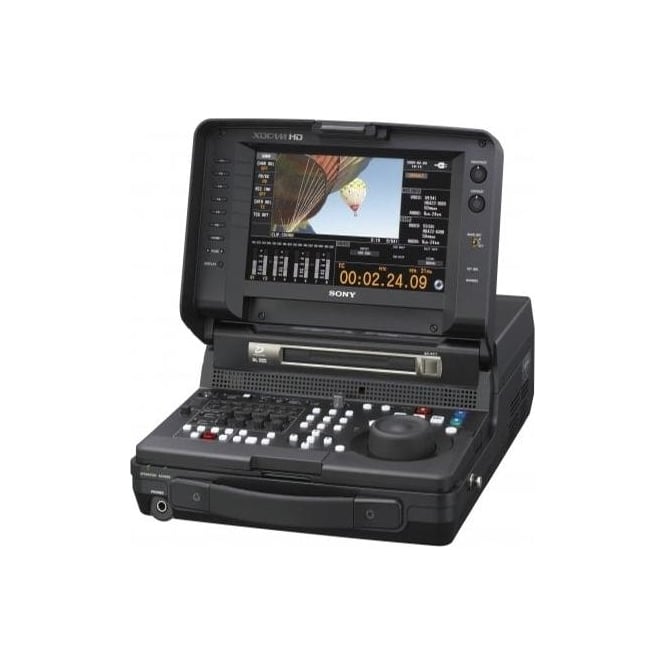

Sony XDCAM HD422 Professional Disc Field Station Recorder

code: PDW-HR1
  • £20,701.00
  • RRP: £20,701.00
Item Available | Usually dispatched within 24 hours
Loading...

Features

  • A large 9-inch WVGA LCD, material can be checked on the spot and a wide variety of GUIs offers superb operational efficiency.
  • Multi-format recording capability as standard, including a frame rate of 23.98P in 1080 mode and SD recording.
  • A wide range of signal interfaces, including baseband video (composite, HD/SD-SDI), Gigabit Ethernet, optional MPEG TS, DVB-ASI, and HDMI are also provided.
  • FTP client capability allows the PDW-HR1 to transfer files via its Ethernet connection without the need for a PC.
  • Picture Cache Recording and Disc Exchange Cache.

Sony PDW-HR1 (PDW/HR1, PDW HR1, PDWHR1) XDCAM HD422 Professional Disc Field Station Recorder

Sonys top-of-the-line XDCAM HD422 Series is being embraced around the world for its file-based recording capability utilizing high-capacity and highly reliable Professional Disc media. Thanks to its newly developed MPEG HD422 codec, the XDCAM HD422 Series provides high-quality video and audio recording capabilities, with an image resolution of 1920 x 1080 and eight-channel 24-bit uncompressed audio.
The newly developed PDW-HR1 XDCAM HD422 Field Station further enhances the operational capability of this series. The PDW-HR1 packs a large number of functions into its compact yet robust body. With a large 9-inch* WVGA LCD, material can be checked on the spot and a wide variety of GUIs offers superb operational efficiency.
It provides multi-format recording capability as standard, including a frame rate of 23.98P in 1080 mode and SD recording. A wide range of signal interfaces, including baseband video (composite, HD/SD-SDI), Gigabit Ethernet, MPEG TS, DVB-ASI, and HDMI are also provided. What's more, an FTP client capability allows the PDW-HR1 to transfer files via its Ethernet connection without the need for a PC.
With its great operational versatility, the PDW-HR1 further expands the operational applications of the XDCAM HD422 Series.
  • Viewable area measured diagonally.
  • Requires optional PDBK-202 board.
  • Requires a software upgrade
View More Details

General

  • Power requirements: AC 100 to 240V, 50/60 Hz, DC +12V, Battery
  • Power consumption: AC: 65 W, DC: 55 W
  • Operating temperature: -5 to +45C (+23 to 113F)
  • Storage temperature: -20 to +60C (-4 to +140F)
  • Humidity: 20 to 90% (relative humidity)
  • Mass: 7.4 kg (16 lb 5 oz)
  • Dimensions (W x H x D) (excluding protrusions): 300 x 129 x 400 mm, (11 7/8 x 5 1/8 x 15 3/4 inches)

Recording/Playback format

  • Video: MPEG HD422 (CBR: 50 Mb/s)
  • MPEG HD: HQ mode (VBR, maximum bit rate: 35 Mb/s), SP mode (CBR, 25 Mb/s), LP mode (VBR, maximum bit rate: 18 Mb/s) (Playback only), MPEG IMX (CBR, 50/40/30 Mb/s)
  • DVCAM (CBR, 25 Mb/s)
  • Proxy Video: ]MPEG-4
  • Audio: MPEG HD422: 8 ch/24 bits/48 kHz, MPEG HD: 4 ch/16 bits/48 kHz, MPEG IMX: 4 ch/24 bits/48 kHz or 8 ch/16 bits/48 kHz, DVCAM: 4 ch/16 bits/48 kHz
  • Proxy Audio: A-law (8 ch/8 bits/8 kHz)

Recording/Playback time

  • MPEG HD422 : 50 Mb/s: Approx. 95 min. (PFD50DLA), Approx. 43 min. (PFD23A)
  • MPEG HD: 35 Mb/s, 4-ch audio: More than 145 min. (PFD50DLA), More than 65 min. (PFD23A), 35 Mb/s, 2-ch audio (playback only): More than 150 min. (PFD50DLA), More than 68 min. (PFD23A), 25 Mb/s, 4-ch audio: Approx. 190 min. (PFD50DLA), Approx. 85 min. (PFD23A), 25 Mb/s, 2-ch audio (playback only): Approx. 200 min. (PFD50DLA), Approx. 90 min. (PFD23A), 18 Mb/s, 4-ch audio (playback only): More than 248 min. (PFD50DLA), More than 112 min. (PFD23A), 18 Mb/s, 2-ch audio (playback only): More than 265 min. (PFD50DLA), More than 122 min. (PFD23A)
  • MPEG IMX: 50 Mb/s: Approx. 100 min. (PFD50DLA), Approx. 45 min. (PFD23A), 40 Mb/s: Approx. 120 min. (PFD50DLA), Approx. 55 min. (PFD23A), 30 Mb/s: Approx. 150 min. (PFD50DLA), Approx. 68 min. (PFD23A)
  • DVCAM: 25 Mb/s: Approx. 185 min. (PFD50DLA), Approx. 85 min. (PFD23A)

Search speed range

  • Jog mode: -1 to +1 time normal speed
  • Variable mode: -1 to +1 times normal speed
  • Shuttle mode: -20 to +20 times normal speed
  • F.Fwd/Rev: -20/+20 times normal speed

Inputs/Outputs

  • Reference input: BNC x 2 (including loop through), HD Tri-level sync (0.6 Vp-p/75 ohms/negative) or SD blackburst/composite sync (0.286 Vp-p/75 ohms/negative)
  • Analogue composite input: BNC x 1, 1.0 Vp-p/75 ohms/negative, SMPTE 170M
  • HD-SDI input: BNC x 1, (HD/SD switchable), HD-SDI: SMPTE 292M (w/embedded audio)
  • SD-SDI: SMPTE 259M (w/embedded audio)
  • Analogue audio input: XLR 3-pin (female) x 4 (channel selectable), +4/0/-3/-6 dBu (selectable), 10 k ohms, balanced, CH1 and CH2: switchable phantom powered mic input
  • Time code input: BNC x 1, SMPTE time code, 0.5 to 18 Vp-p/3.3 k ohms/unbalanced
  • Analog composite output: BNC x 1, 1.0 Vp-p/75 ohms/negative, SMPTE 170M ,character On/Off
  • HD-SDI output: BNC x 2, 1: SMPTE 292M (w/embedded audio), 2: SMPTE 292M (w/embedded audio), character On/Off
  • SD-SDI output: BNC x 1, SMPTE 259M (w/embedded audio), character On/Off
  • HDMI: x 1, output
  • Analogue audio output: XLR 3-pin (male) x 42 (channel selectable), +4/0/-3/-6 dBu (selectable), 600 O, Lo-z, balanced, CH3 and CH4: switchable analogue audio monitor
  • Headphone output: JM-60 Stereo phone jack x 1, -13 dBu, 8 ohms, unbalanced
  • Time code output: BNC x 1, SMPTE time code, 1.0 Vp-p/75 ohms/unbalanced, i.LINK IEEE 1394 6-pin x 2*, 1: File Access Mode, 2: (Option: PDBK-202) HDV 1080i/720P IN/OUT
  • *AV/C (DV) stream is NOT supported.
  • Ethernet : RJ-45 x 1, 1000Base-T: IEEE802.3ab, 100Base-TX: IEEE802.3u, 10Base-T: IEEE802.3
  • DVB-ASI output: x 1, (Option: PDBK-202) ISO/IEC-13818-2
  • Remote (9P) input/output: D-sub 9-pin (female) x 1, RS-422A
  • DC input (12 V): XLR 4-pin (male) x 1
  • DC output (12 V): 4-pin (female) x 1, DC 12 V, 7.5 W
  • Maintenance: USB x 2
  • AC input: x 1, 100 to 240 V, 50/60Hz

Video Performance

  • Sampling frequency: Y: 74.25 MHz, Pb/Pr: 37.125MHz
  • Quantization: 8 bits/sample
  • Error correction: Reed Solomon Code

Processor Adjustment Range

  • Video level: -8 to +3 dB
  • Chroma level: -8 to +3 dB
  • Set up/black level: +- 30 IRE/????210 mV
  • Chroma phase: +- 30 degrees
  • System sync phase: +- 15 us
  • System sync phase (fine): 0 to 400 ns
  • System SC phase: 0 to 400 ns

Audio Performance

  • Sampling frequency: 48 kHz
  • Quantization: 24 bits
  • Frequency response: 20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz)
  • Dynamic range: More than 90 dB
  • Distortion: Less than 0.05% (at 1 kHz)
  • Headroom: 20/18/16/12 dB (selectable)

Others

  • Built-in display: 9-inch type color LCD monitor
  • Built-in audio speaker: x 2, L/R



View More Details

In the box

  • XDCAM HD422 Professional Disc Field Station Recorder
